System Tests

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For Smart Entrance Control Unit (SECU) systems tests, see SMART ENTRANCE CONTROL UNIT - FRONTIER article.

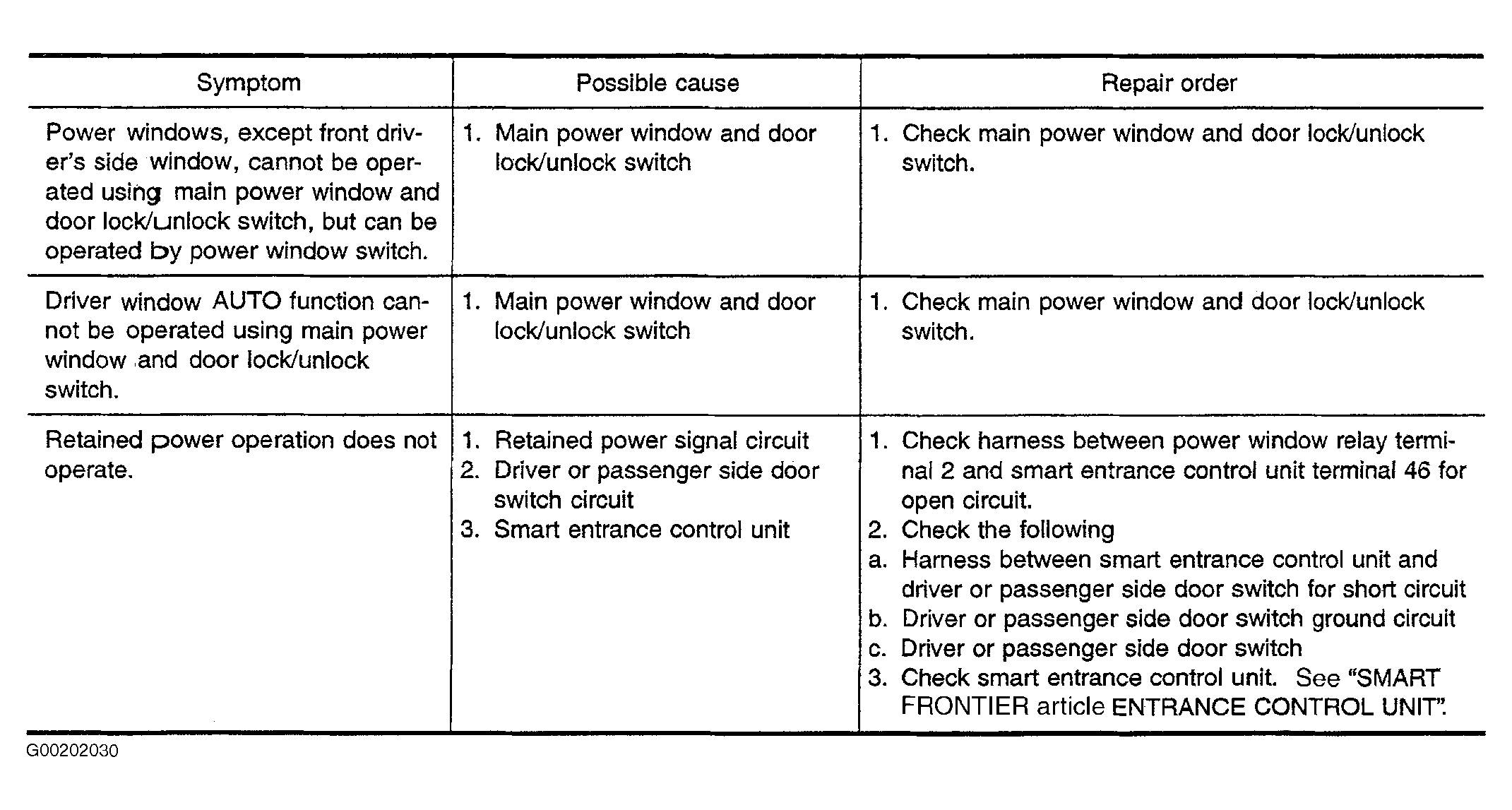

Fig 1: Identifying Symptom Chart 1 Of 2 (Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

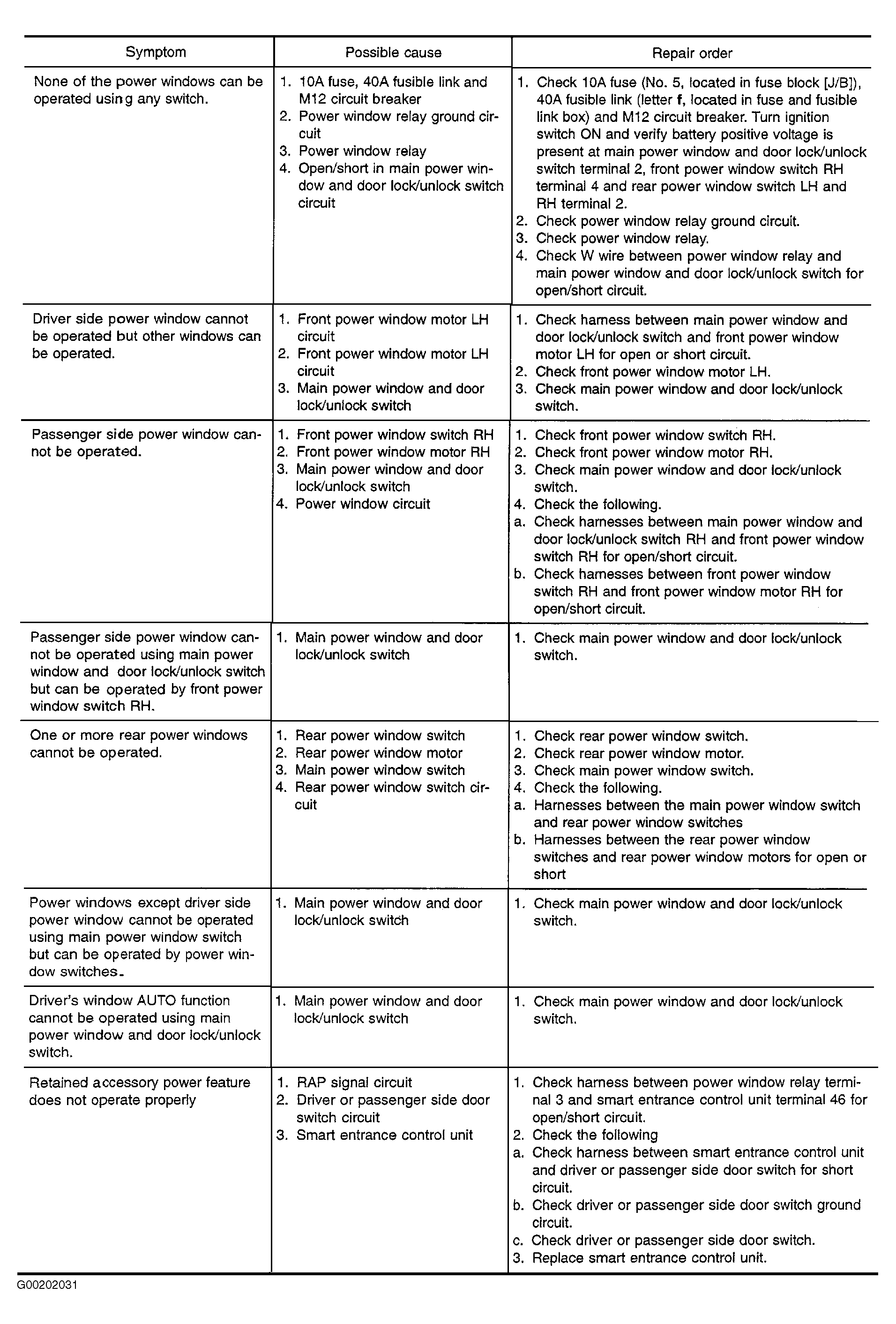

Fig 2: Identifying Symptom Chart 2 Of 2 (Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

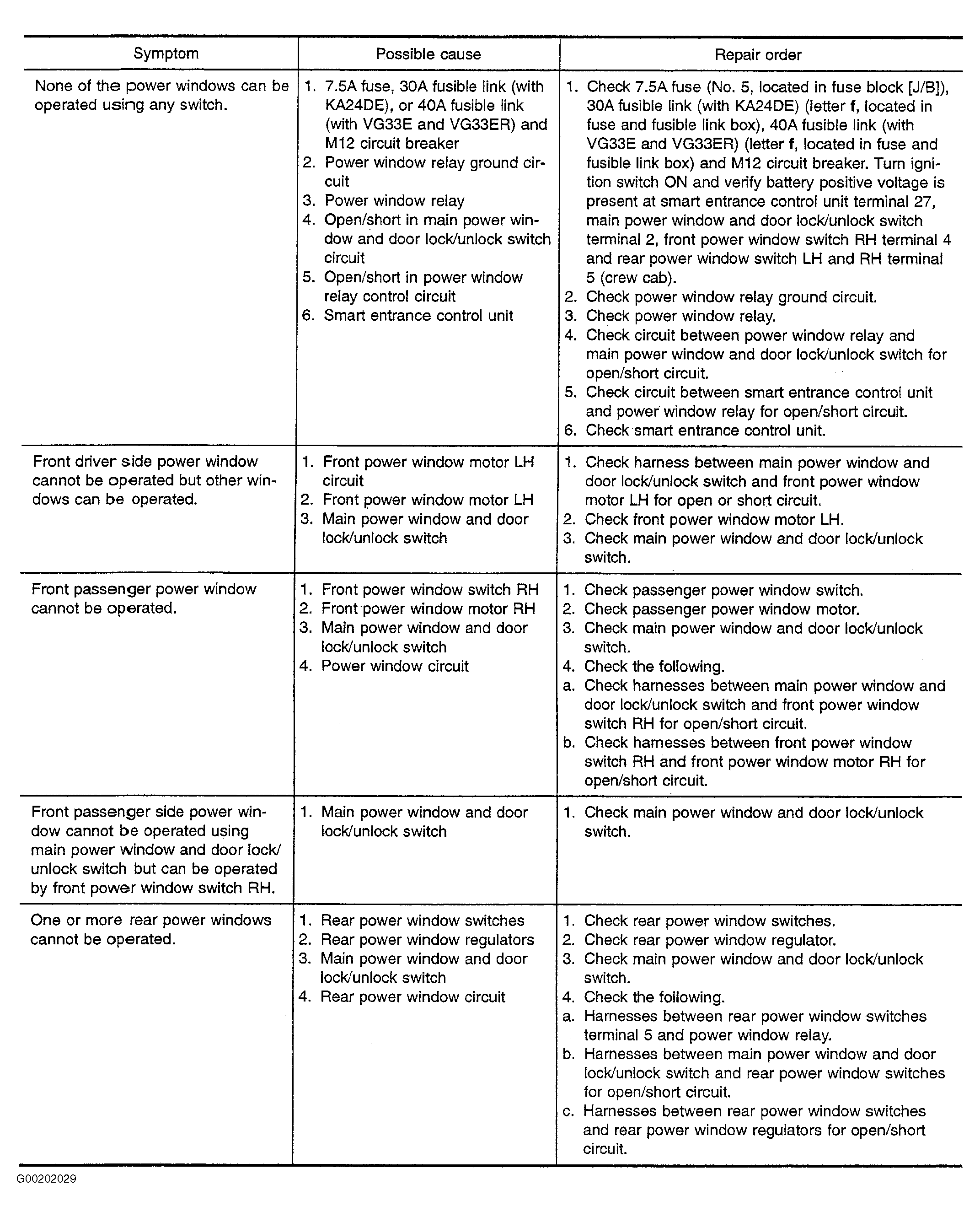

Fig 3: Identifying Symptom Chart (Xterra)

Courtesy of NISSAN MOTOR CO., U.S.A.
