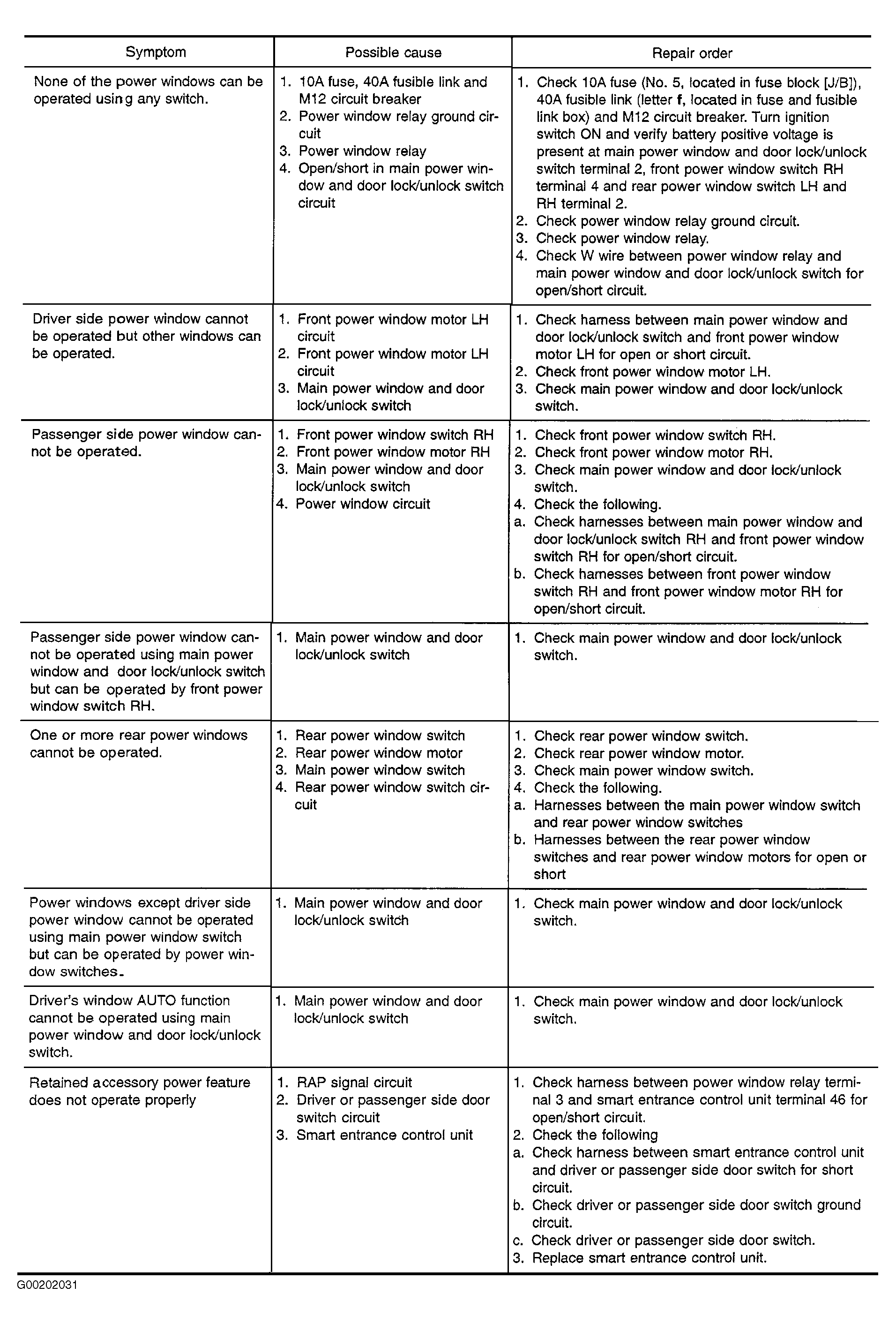

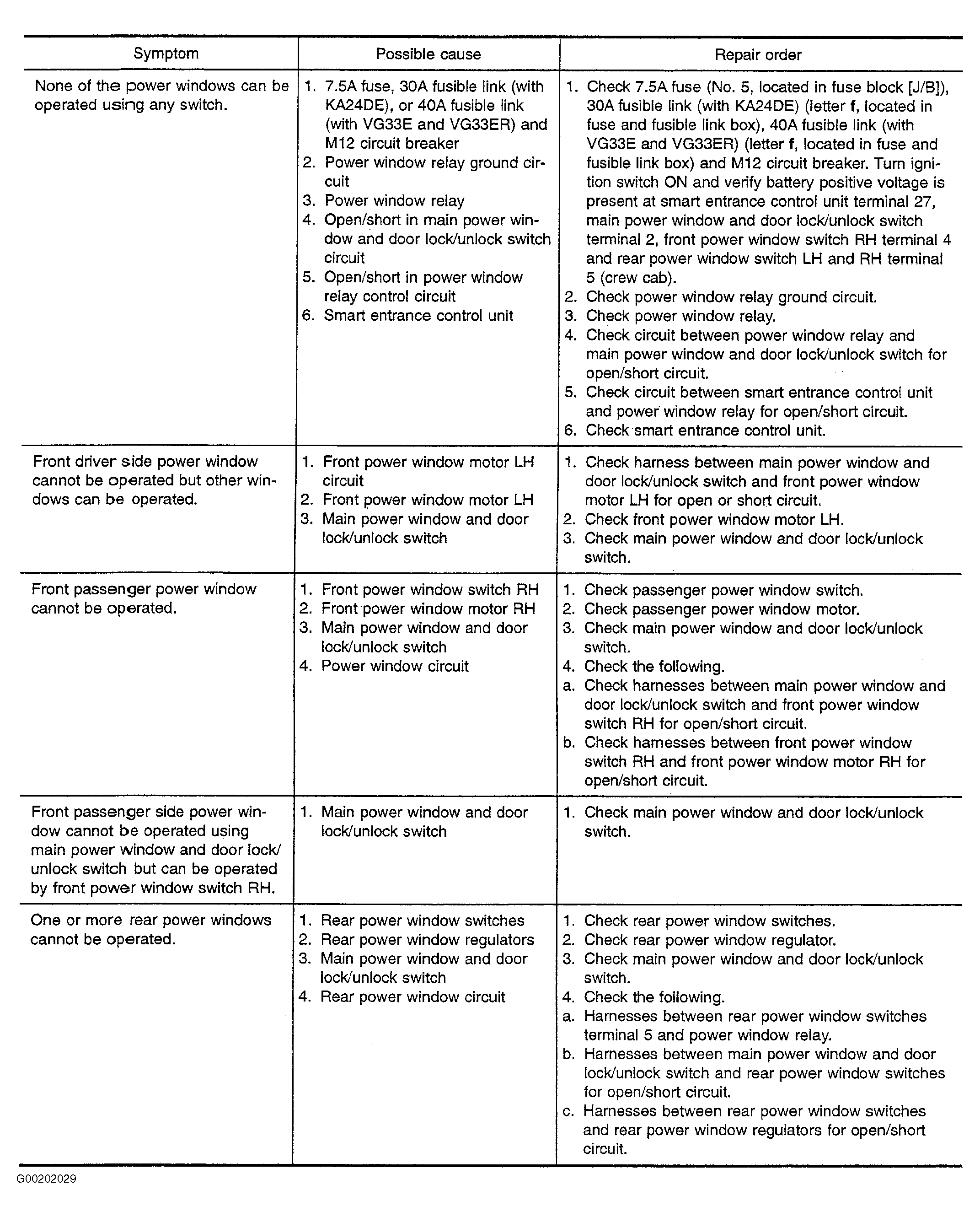

Trouble Shooting
NOTE:
Verify customer complaint. Before operating system, perform visual inspection. Check connectors for loose, damaged or corroded terminals. Check for damaged wiring harness. Check actuators for damage or binding. If no problem is found, repair by symptom. See Figure
-Figure
in SYSTEM TESTS.
