Operation Procedure

CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect the CONSULT-II connector to the data link connector and start the engine.
  2. Touch "START" on the display.
  3. Touch "ABS" and "ACTIVE TEST".

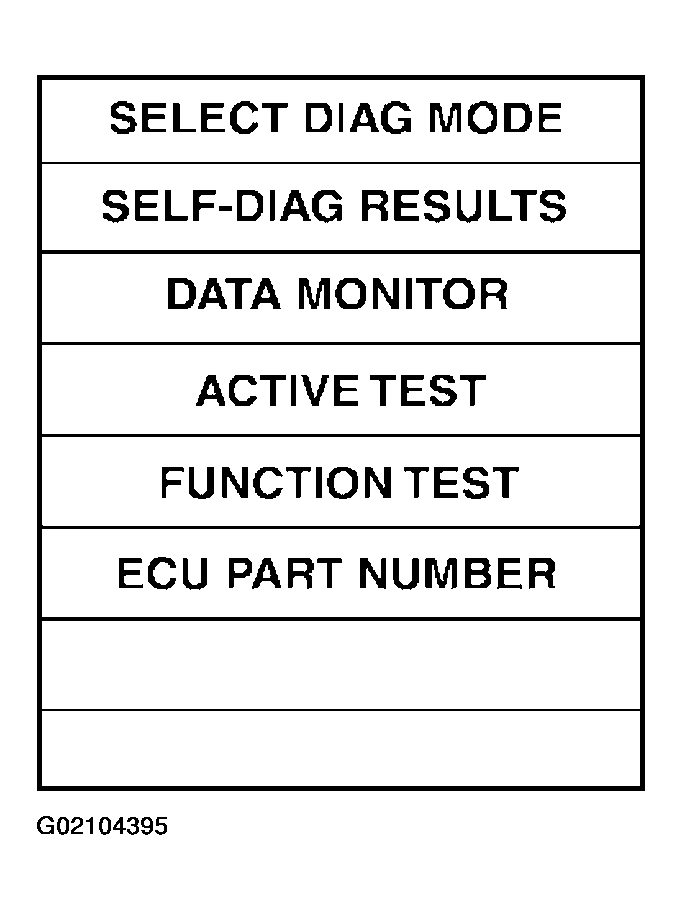

    Fig 1: Identifying CONSULT-II Display Screen - ACTIVE TEST
    G02104395Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.

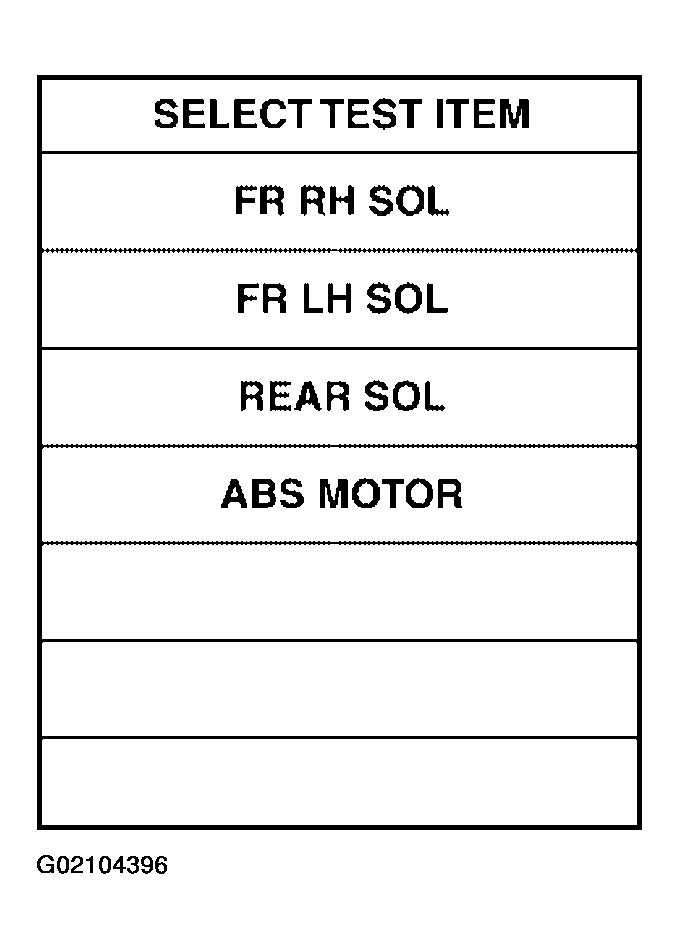

    5. Fig 2: Identifying Test Item Selection Screen
    G02104396Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch necessary test item.
  6. Touch "START".
  7. Carry out the active test by touching screen key.
