Main Harness

Main harness is connected to various other harnesses. See Fig 1 or Fig 2 .

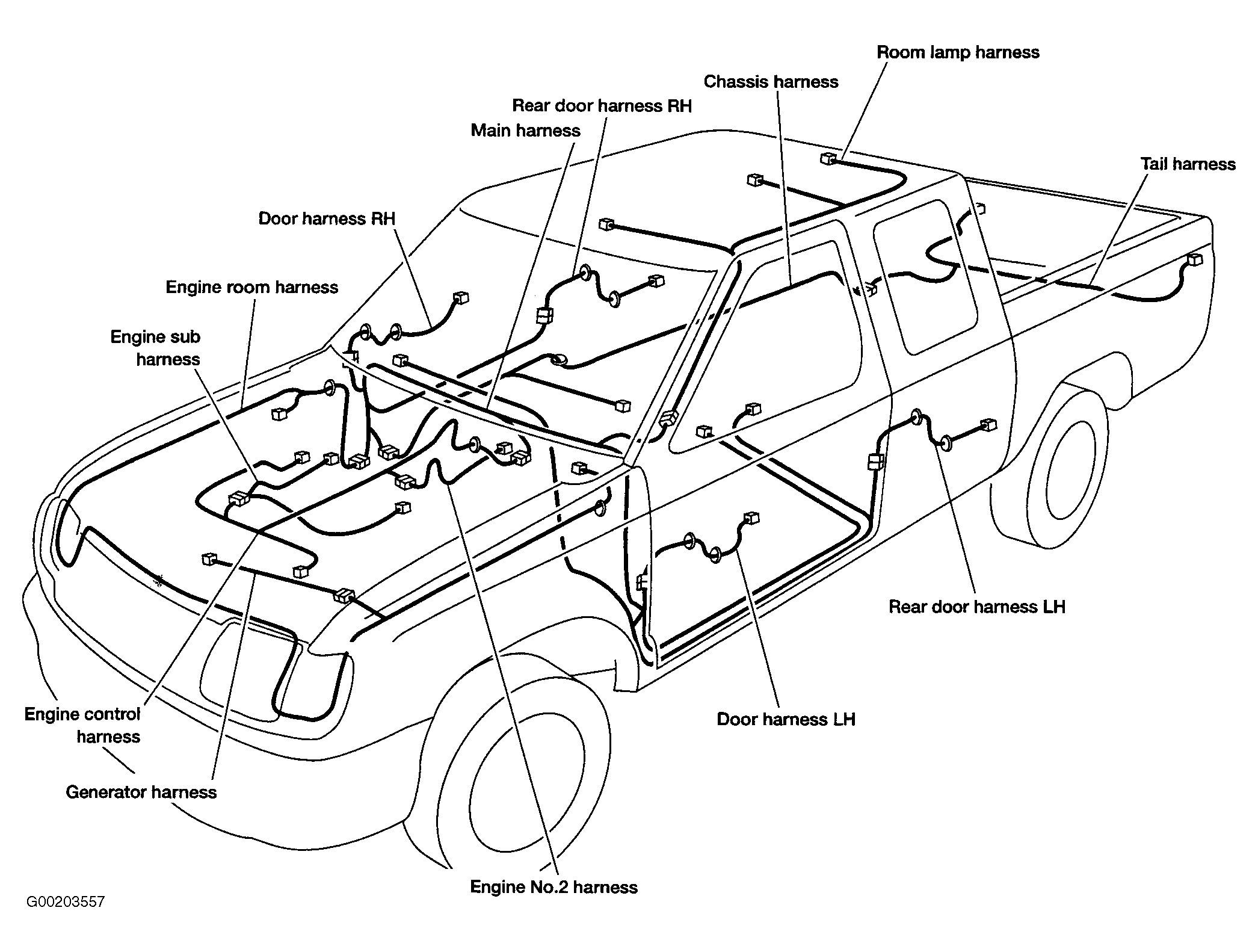

Fig 1: Locating Vehicle Harnesses (Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Vehicle Harnesses (Xterra)

Courtesy of NISSAN MOTOR CO., U.S.A.
