SRT Set Timing

SRT is set as CMPLT after self-diagnosis has been performed one or 2 times. Completion of SRT is done regardless of whether result is OK or NG. Set timing is different between OK and NG. See Fig 1 .

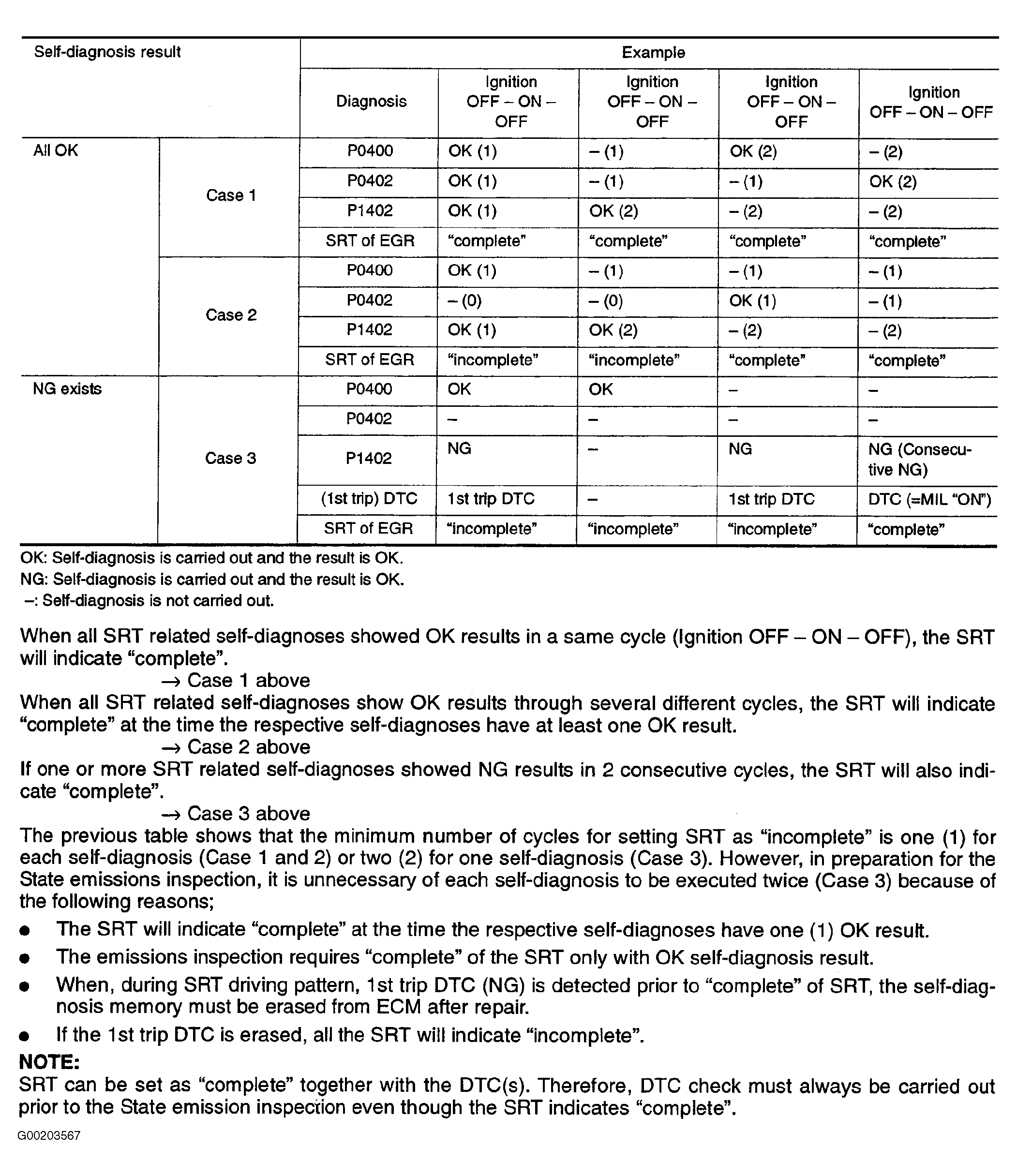

Fig 1: Setting SRT Codes

Courtesy of NISSAN MOTOR CO., U.S.A.
