Pin Voltage Tests

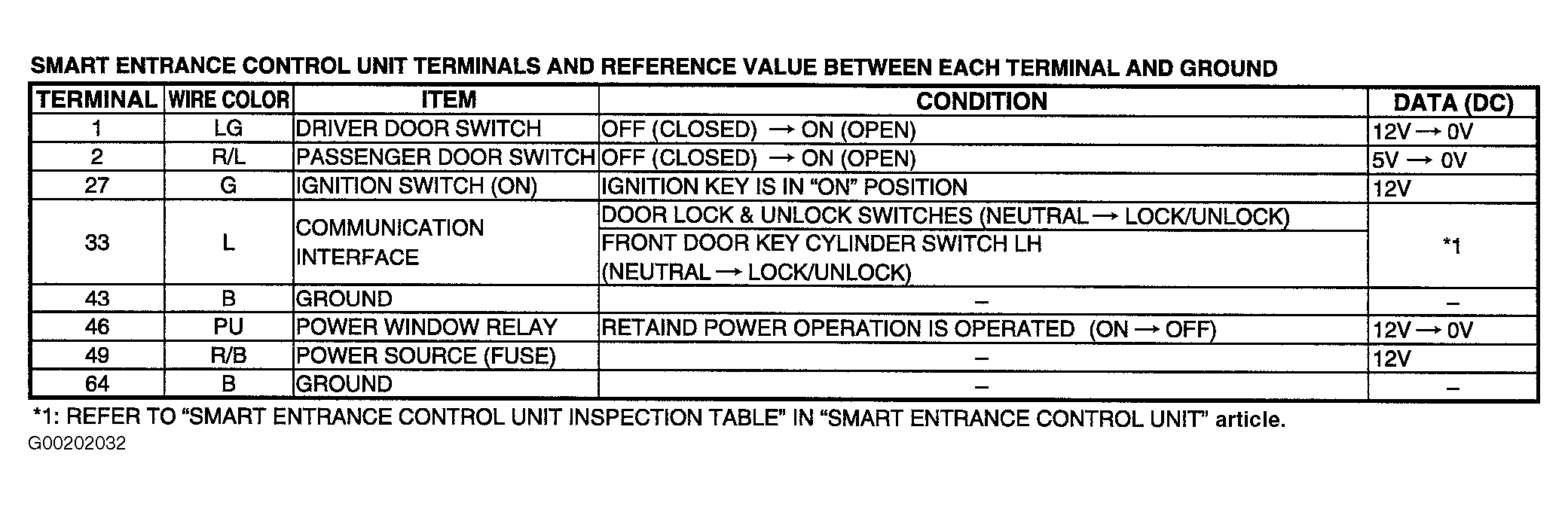

Fig 1: Identifying Pin Voltage Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
