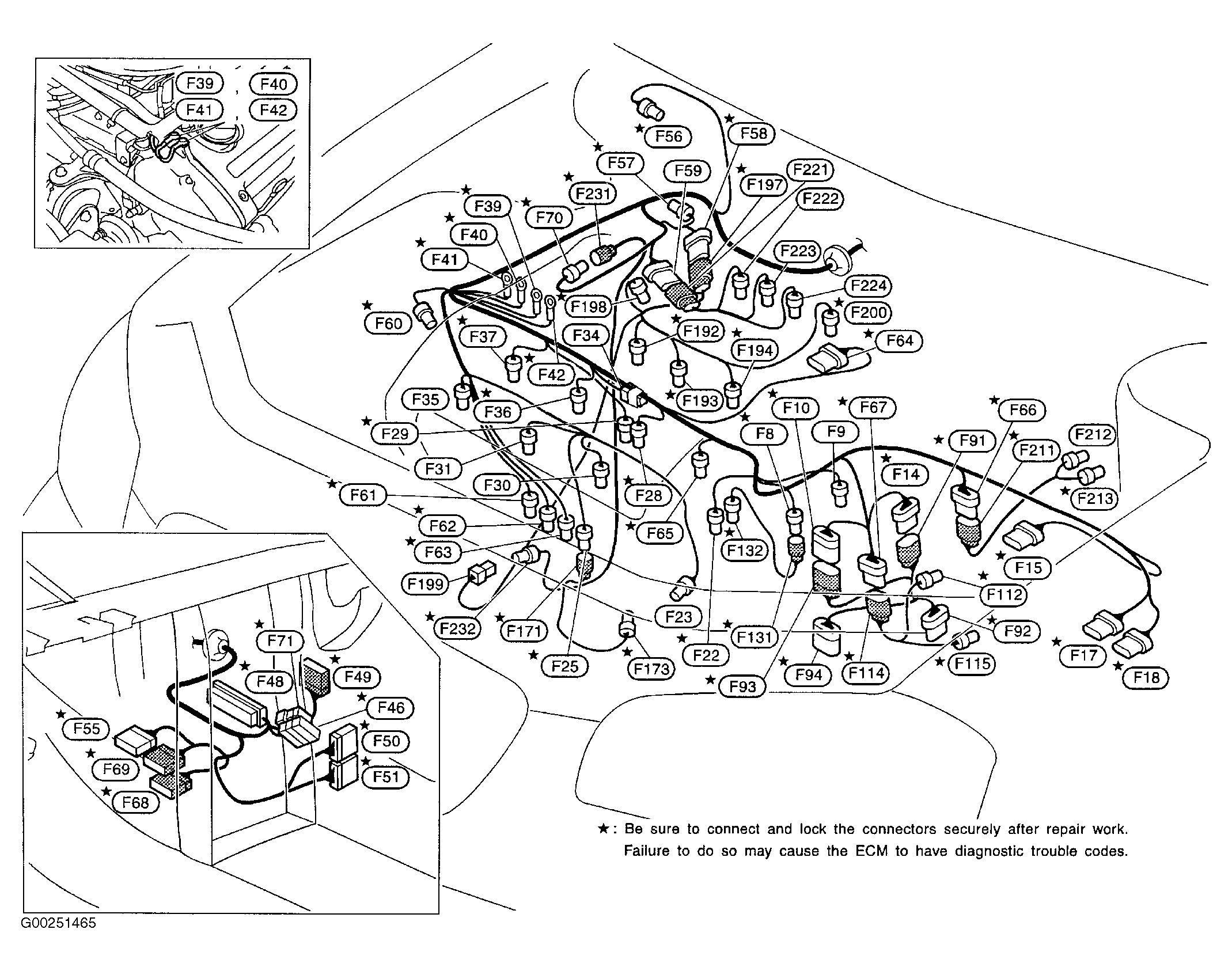

Engine Control Harness
Courtesy of NISSAN MOTOR CO., U.S.A. ENGINE CONTROL HARNESS CONNECTOR IDENTIFICATION
| Connector Name |
Color |
Number Of Pins |
Description |
| Engine Control Harness |
| F8 |
Black |
2 |
To F131 |
| F9 |
Brown |
3 |
Rear Electronic Controlled Engine Mount (With A/T) |
| F10 |
Gray |
10 |
To F93 (With A/T) |
| F14 |
Brown |
8 |
To F91 (With A/T) |
| F15 |
Gray |
5 |
Mass Airflow Sensor |
| F17 |
Gray |
8 |
To E8 |
| F18 |
Black |
8 |
To E15 |
| F22 |
Gray |
2 |
ECT Sensor |
| F23 |
Brown |
3 |
Front Electronic Controlled Engine Mount (With A/T) |
| F25 |
Green |
4 |
To F171 |
| F28 |
Gray |
2 |
Injector No. 6 |
| F29 |
Black |
2 |
VIAS Control Solenoid Valve |
| F30 |
Gray |
3 |
Ignition Coil No. 6 |
| F31 |
Gray |
3 |
Ignition Coil No. 4 |
| F34 |
White |
2 |
Condenser |
| F35 |
Gray |
3 |
Ignition Coil No. 2 |
| F36 |
Gray |
2 |
Injector No. 4 |
| F37 |
Gray |
2 |
Injector No. 2 |
| F39 |
..... |
..... |
Engine Ground |
| F40 |
..... |
..... |
Engine Ground |
| F41 |
..... |
..... |
Engine Ground |
| F42 |
..... |
..... |
Engine Ground |
| F46 |
Blue |
12 |
Joint Connector No. 18 |
| F48 (Super Multiple Junction) |
Gray |
111 |
ECM |
| F49 |
White |
20 |
To M81 |
| F50 |
Gray |
24 |
TCM (With A/T) |
| F51 |
White |
24 |
TCM (With A/T) |
| F55 |
White |
18 |
To M162 |
| F56 |
Black |
3 |
Power Steering Oil Pressure Sensor |
| F57 |
Light Blue |
3 |
HO2S 1 (Bank 1) |
| F58 |
Green |
8 |
To F197 |
| F59 |
Green |
6 |
To F221 |
| F60 |
Green |
2 |
Intake Valve Timing Control Solenoid Valve (Bank 2) |
| F61 |
Light Blue |
3 |
HO2S 1 (Bank 2) |
| F62 |
Green |
4 |
HO2S 2 (Bank 2) |
| F63 |
Blue |
4 |
HO2S 2 (Bank 1) |
| F64 |
Green |
6 |
Electric Throttle Control Actuator |
| F65 |
Black |
3 |
Camshaft Position Sensor (PHASE) (Bank 2) |
| F66 |
Gray |
6 |
To F211 (With M/T) |
| F67 |
Gray |
8 |
To F114 (With A/T) |
| F68 |
White |
18 |
To M161 |
| F69 |
White |
20 |
To M166 |
| F70 |
Blue |
4 |
To F231 |
| F71 |
Gray |
6 |
Joint Connector No. 20 |
| Engine Control Sub-Harness No. 1 |
| F91 |
Brown |
8 |
To F14 (With A/T) |
| F92 |
Black |
8 |
Terminal Cord Assembly (With A/T) |
| F93 |
Gray |
10 |
To F10 (With A/T) |
| F94 |
Black |
10 |
Park/Neutral Position Switch (With A/T) |
| Engine Control Sub-Harness No. 2 |
| F112 |
Black |
3 |
Revolution Sensor (With A/T) |
| F114 |
Gray |
8 |
To F67 (With A/T) |
| F115 |
Black |
3 |
Powertrain Revolution Sensor (With A/T) |
| Engine Control Sub-Harness No. 3 |
| F131 |
Black |
2 |
To F8 |
| F132 |
Gray |
2 |
Knock Sensor |
| Engine Control Sub-Harness No. 5 |
| F171 |
Green |
4 |
To F25 |
| F173 |
Black |
3 |
Crankshaft Position Sensor (POS) |
| Engine Control Sub-Harness No. 6 |
| F231 |
Blue |
4 |
To F70 |
| F232 |
Green |
3 |
Camshaft Position Sensor (PHASE) (Bank 1) |
| Engine Control Sub-Harness No. 7 |
| F211 |
Gray |
6 |
To F66 (With M/T) |
| F212 |
Black |
2 |
Back-Up Light Switch (With M/T) |
| F213 |
Black |
2 |
Park/Neutral Position Switch (With M/T) |
| Engine Control Sub-Harness No. 8 |
| F221 |
Green |
6 |
To F59 |
| F222 |
Gray |
3 |
Ignition Coil No. 1 |
| F223 |
Gray |
3 |
Ignition Coil No. 3 |
| F224 |
Gray |
3 |
Ignition Coil No. 5 |
| Engine Control Sub-Harness No. 9 |
| F192 |
Gray |
2 |
Injector No. 1 |
| F193 |
Gray |
2 |
Injector No. 3 |
| F194 |
Gray |
2 |
Injector No. 5 |
| F197 |
Green |
8 |
To F58 |
| F198 |
Green |
2 |
Intake Valve Timing Control Solenoid Valve (Bank 1) |
| F199 |
Black |
1 |
Oil Pressure Switch |
| F200 |
Blue |
2 |
EVAP Canister Purge Volume Control Solenoid Valve |
