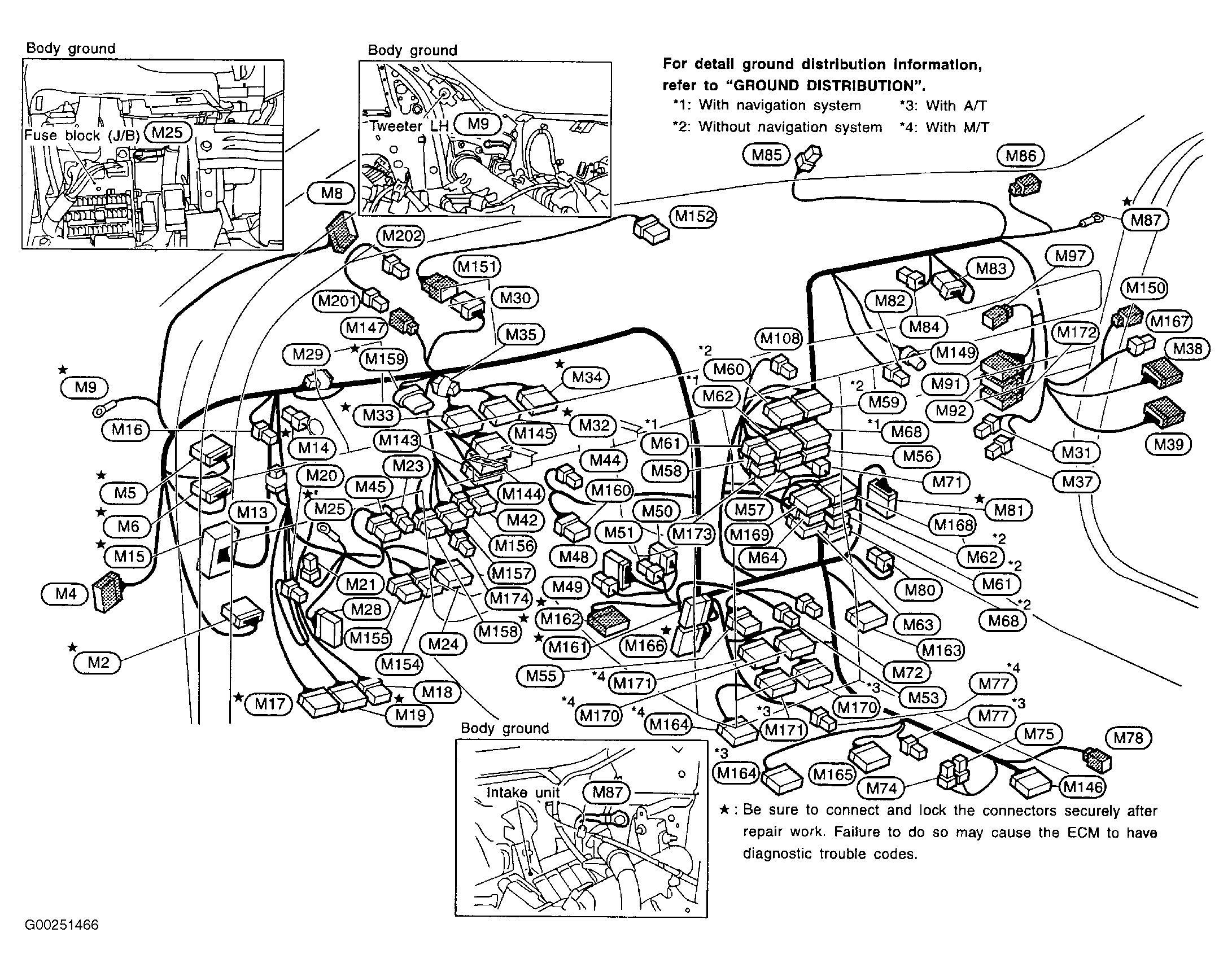

| Main Harness |
| M2 |
Brown |
24 |
To B2 |
| M4 (Super Multiple Junction) |
..... |
35 |
To D1 |
| M5 |
White |
16 |
To B1 |
| M6 |
White |
18 |
To B3 |
| M8 |
White |
12 |
To R2 |
| M9 |
..... |
..... |
Body Ground |
| M13 |
Blue |
4 |
Diode (For Canada) |
| M14 |
Blue |
2 |
ASCD Clutch Switch (With M/T) |
| M15 (Super Multiple Junction) |
..... |
69 |
To E81 |
| M16 |
White |
4 |
Telephone |
| M17 |
White |
12 |
Fuse Block |
| M18 |
White |
6 |
Fuse Block |
| M19 |
White |
16 |
Fuse Block |
| M20 |
Blue |
4 |
Power Window Relay |
| M21 |
Black |
3 |
Combination Flasher Unit |
| M23 |
White |
3 |
Illumination Control Switch |
| M24 |
White |
10 |
Door Mirror Remote Control Switch |
| M25 |
..... |
..... |
Body Ground |
| M28 |
White |
16 |
Data Link Connector |
| M29 |
Gray |
3 |
Joint Connector No. 3 (Diode) (With A/T) |
| M30 |
Gray |
6 |
To M151 |
| M31 |
White |
4 |
Fan Control Amp. (With Auto A/C) |
| M32 |
Brown |
20 |
Combination Meter |
| M33 |
White |
24 |
Combination Meter |
| M34 |
Brown |
24 |
Combination Meter |
| M35 |
Black |
2 |
Diode |
| M37 |
Brown |
4 |
Fan Resistor (With Manual A/C) |
| M38 |
White |
16 |
To D62 |
| M39 |
White |
10 |
To D63 |
| M42 |
White |
8 |
NVIS IMMU |
| M44 |
White |
2 |
In-Vehicle Sensor (With Auto A/C) |
| M45 |
Blue |
6 |
TCS ON/OFF Switch (With TCS) |
| M48 |
Brown |
10 |
Mode Door Motor (With Manual A/C) |
| M49 |
White |
3 |
Mode Door Motor (With Auto A/C) |
| M50 |
Black |
6 |
Air Mix Door Motor (With Manual A/C) |
| M51 |
White |
3 |
Air Mix Door Motor (With Auto A/C) |
| M53 |
Black |
2 |
Cigarette Lighter |
| M55 |
White |
8 |
Hazard Switch |
| M56 |
Gray |
16 |
A/C Control Unit (With Manual A/C) |
| M57 |
Gray |
20 |
A/C Control Unit (With Manual A/C) |
| M58 |
White |
6 |
Fan Switch (With Manual A/C) |
| M59 |
Gray |
20 |
A/C Auto Amp. (With Auto A/C) (Without Navigation System) |
| M60 |
Gray |
16 |
A/C Auto Amp. (With Auto A/C) (Without Navigation System) |
| M61 |
White |
6 |
Audio Unit (With Bose System) |
| M62 |
White |
10 |
Audio Unit (With Bose System) |
| M63 |
White |
6 |
Audio Unit (With Base System) |
| M64 |
White |
10 |
Audio Unit (With Base System) |
| M68 |
White |
16 |
Audio Unit |
| M71 |
White |
2 |
Antenna Amp. (Via Sub-Harness) |
| M72 |
White |
2 |
Ashtray Illumination |
| M74 |
Blue |
4 |
Left Front Heated Seat Switch |
| M75 |
White |
4 |
Right Front Heated Seat Switch |
| M77 |
Black |
1 |
Parking Brake Switch |
| M78 |
Black |
2 |
Power Socket |
| M80 |
White |
3 |
Intake Sensor (With Auto A/C) |
| M81 |
White |
20 |
To F49 |
| M82 |
White |
2 |
Glove Box Lamp |
| M83 |
White |
8 |
Intake Door Motor (With Manual A/C) |
| M84 |
White |
3 |
Intake Door Motor (With Auto A/C) |
| M85 |
Black |
2 |
Sunload Sensor |
| M86 |
Brown |
2 |
Tweeter (Right) (Via Sub-Harness) |
| M87 |
..... |
..... |
Body Ground |
| M91 |
White |
12 |
To B103 |
| M92 |
White |
10 |
To B104 |
| M97 |
Green |
2 |
To E105 |
| M108 |
Brown |
2 |
Indirect Lamp (Without Navigation System) |
| M143 |
White |
24 |
Smart Entrance Control Unit |
| M144 |
Gray |
24 |
Smart Entrance Control Unit |
| M145 |
Gray |
16 |
Smart Entrance Control Unit |
| M146 |
Yellow |
28 |
Air Bag Diagnosis Sensor Unit |
| M147 |
White |
3 |
To M201 |
| M149 |
Yellow |
4 |
Passenger Air Bag Module |
| M150 |
Yellow |
4 |
To E147 |
| M154 |
Gray |
6 |
Memory Seat Cancel Switch (With Memory Seat) |
| M155 |
White |
8 |
Heated Steering Switch (With Heated Steering) |
| M156 |
White |
2 |
Combination Switch (With Heated Steering) |
| M157 |
Yellow |
6 |
Combination Switch (Air Bag Module) (Via Spiral Cable) |
| M158 |
Gray |
8 |
Combination Switch (Steering Switch & Horn Switch) (Via Spiral Cable) |
| M159 |
Gray |
6 |
Accelerator Pedal Position Sensor |
| M160 |
White |
8 |
Rear Window Defogger Switch (With Navigation System) |
| M161 |
White |
18 |
To F68 |
| M162 |
White |
18 |
To F55 |
| M163 |
Gray |
10 |
Shift Lock Control Unit (With A/T) |
| M164 |
White |
16 |
To B52 (With Memory Seat) |
| M165 |
White |
12 |
A/T Device (With A/T) |
| M166 |
White |
20 |
To F69 |
| M167 |
Blue |
4 |
Heated Steering Relay (With Heated Steering) |
| M168 |
White |
20 |
Display & NAVI Control Unit |
| M169 |
Gray |
20 |
Display & NAVI Control Unit |
| M170 |
Gray |
20 |
A/C Auto Amp. (With Auto A/C) (With Navigation System) |
| M171 |
Gray |
16 |
A/C Auto Amp. (With Auto A/C) (With Navigation System) |
| M172 |
Brown |
24 |
To B145 |
| M173 |
White |
12 |
Audio Unit (With CD Auto Changer) |
| M174 |
White |
2 |
Ignition Keyhole Illumination |
| Main Sub-Harness No. 1 |
| M151 |
Gray |
6 |
To M30 |
| M152 |
Brown |
8 |
Clock |
| Main Sub-Harness No. 2 |
| M201 |
White |
3 |
To M147 |
| M202 |
White |
3 |
Auto Light Sensor |
