Sensor Rotor

Removal

1. Remove the drive shaft or rear wheel hub. Refer to "FRONT AXLE ", or "REAR AXLE " respectively.

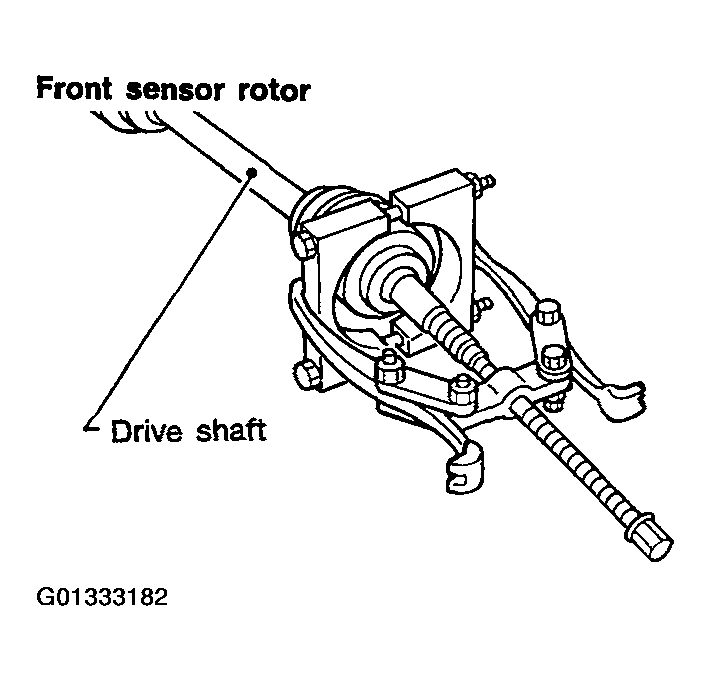

   Fig 1: Removing Drive Shaft

   Courtesy of NISSAN MOTOR CO., U.S.A.

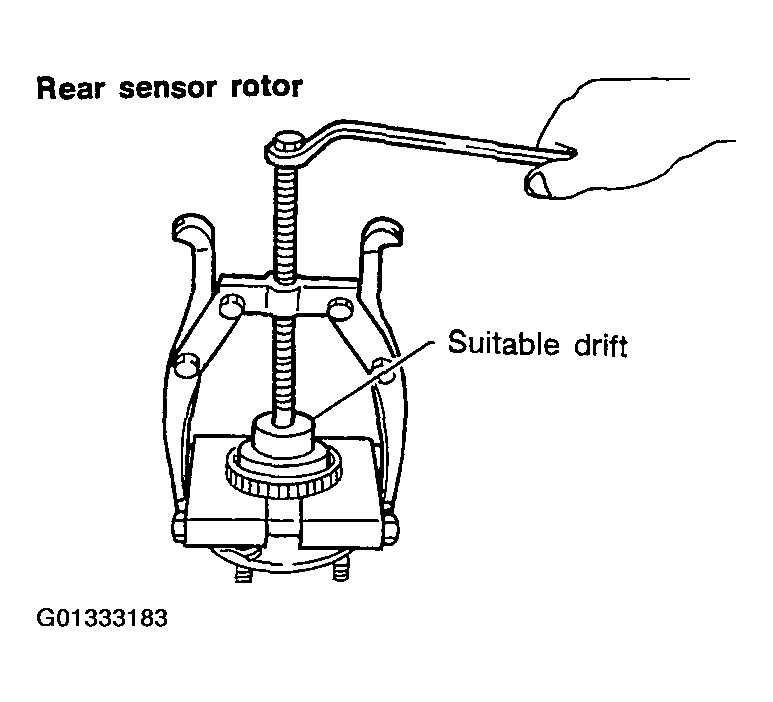

   Fig 2: Removing Rear Sensor Rotor

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

Installation

Install the sensor rotor. For front sensor rotor, use hammer and wooden block. For rear sensor rotor, use suitable drift and press.

• Always replace sensor rotor with new one.

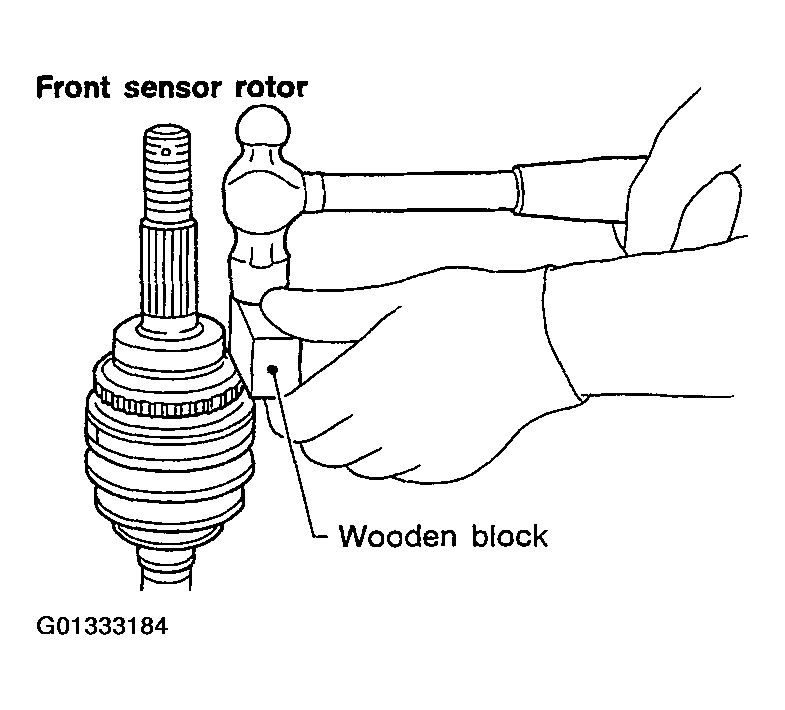

  Fig 3: Installing Front Sensor Rotor

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Pay attention to the dimension of rear sensor rotor as shown in figure.

  Dimension h

  Rear Disc: 1.5 - 2.5 mm (O.06 - 0.10 In)

  Rear Drum: 17.7 -18.7 mm (0.70 - 0.74 in)

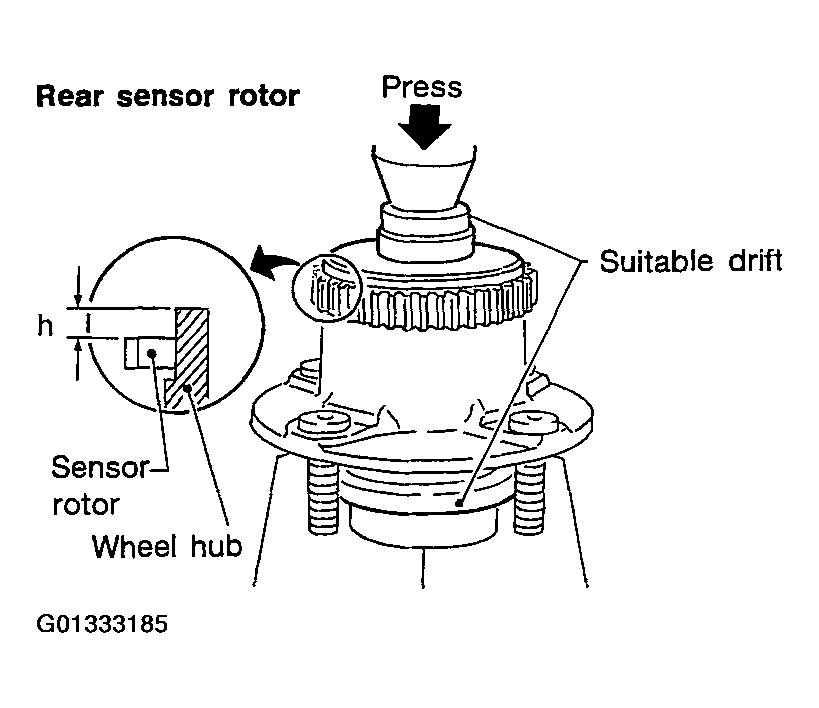

  Fig 4: Identifying Rear Sensor Rotor Installation Direction

  Courtesy of NISSAN MOTOR CO., U.S.A.
