"Multi Remote ENT"

Turn ignition switch "OFF".

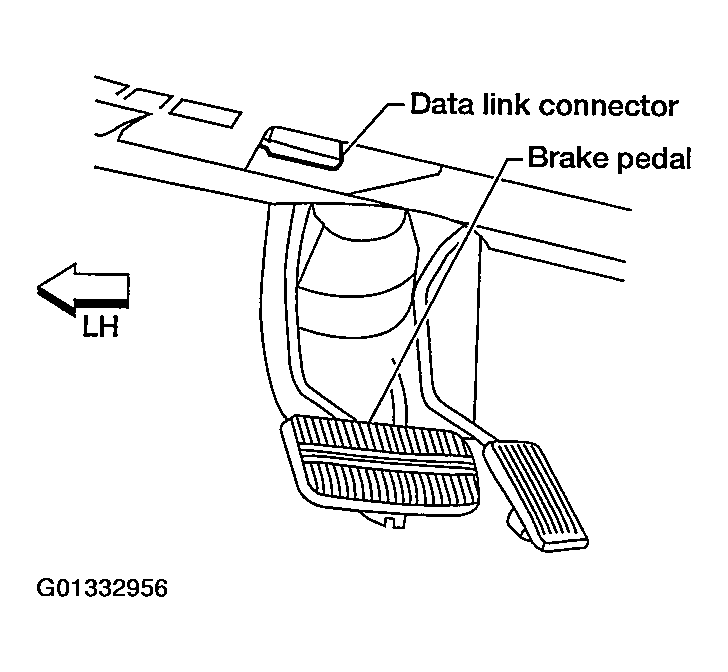

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect "CONSULT-II" to the data link connector
Turn ignition switch "ON".

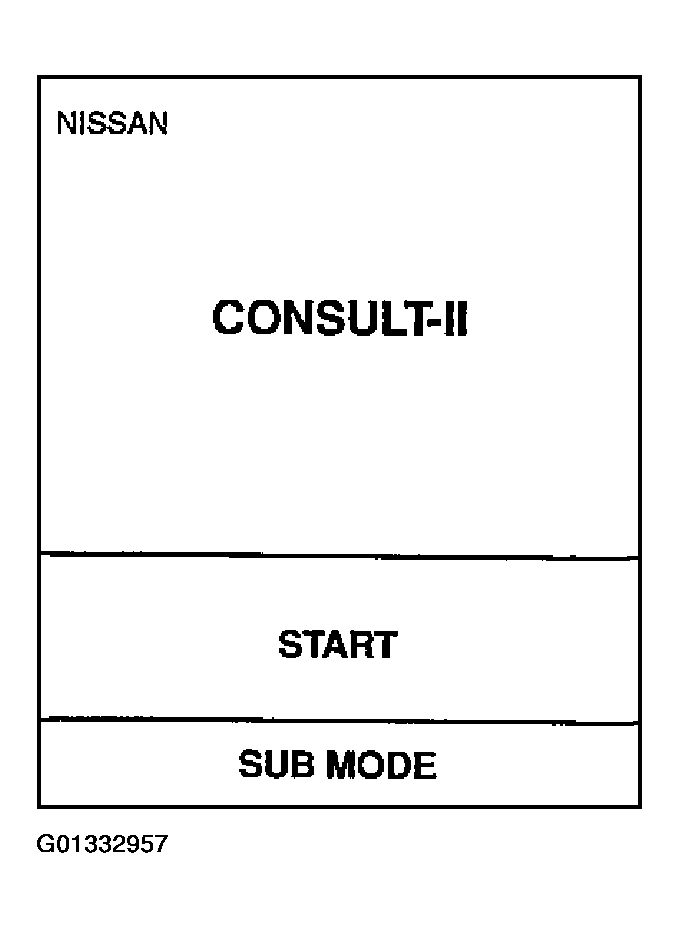

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Touch "SMART ENTRANCE".

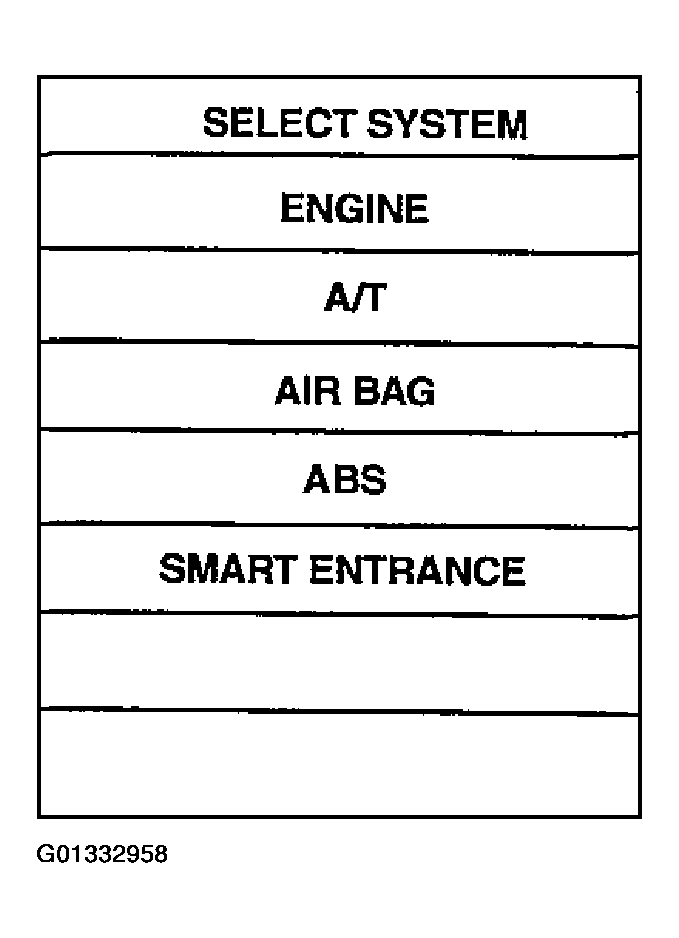

Fig 3: CONSULT-II Display - Touch "SMART ENTRANCE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".
Select diagnosis mode.

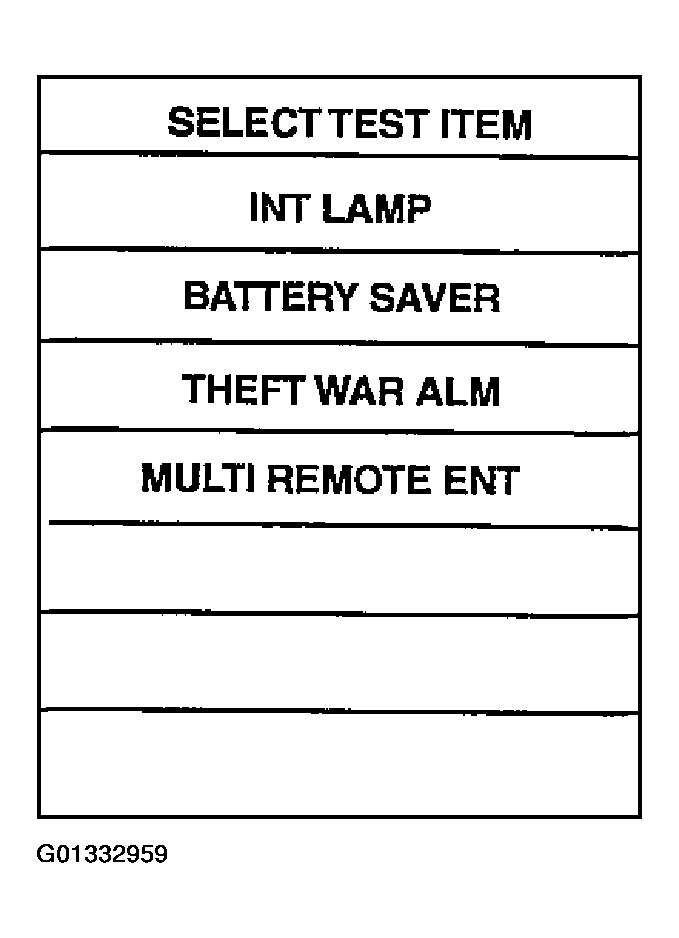

Fig 4: CONSULT-II Display - Touch "MULTI REMOTE ENT"
Courtesy of NISSAN MOTOR CO., U.S.A.

"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

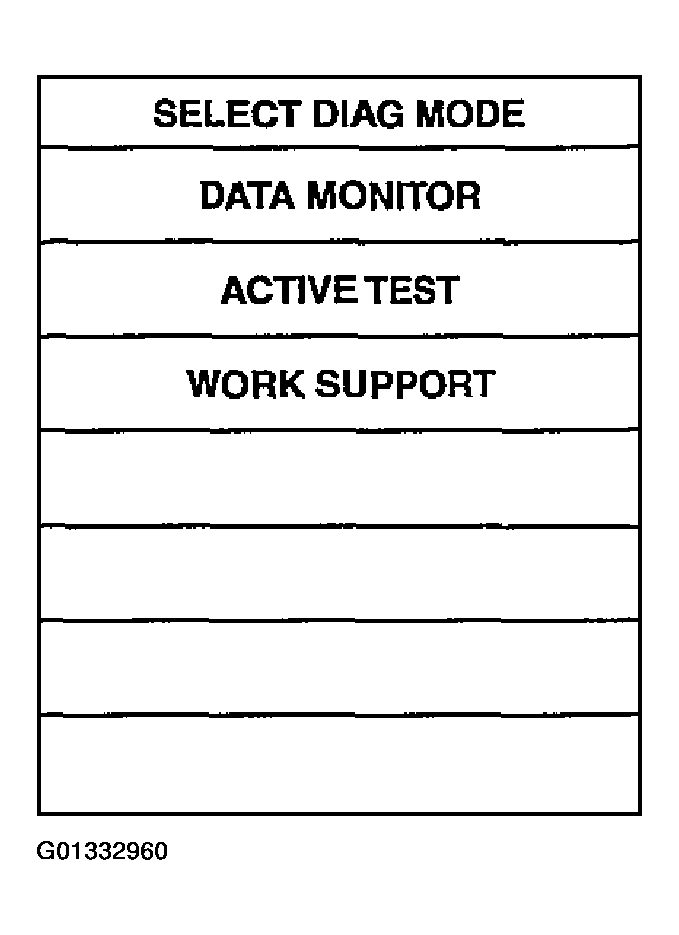

Fig 5: CONSULT-II Display - Select Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
