Door Switch Check

CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check door switches ("DOOR SW-ALL") in "DATA MONITOR" mode with CONSULT-II.

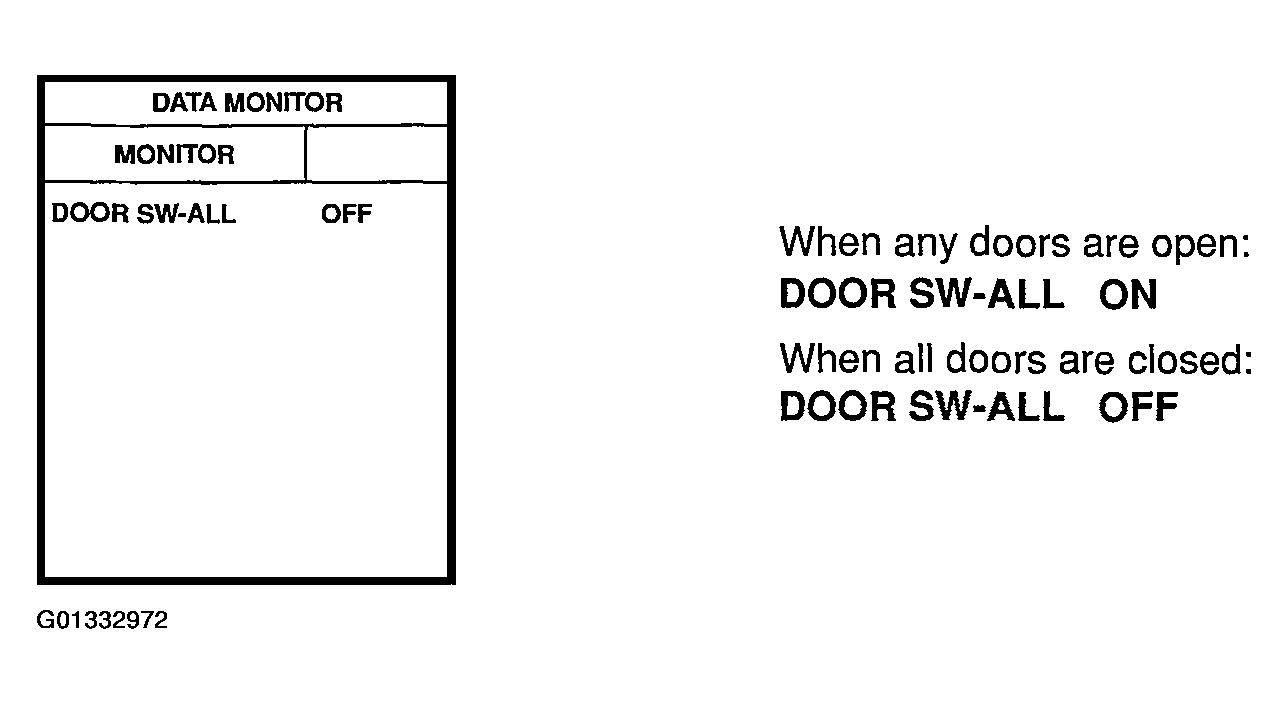

Fig 1: Checking Door Switch Input Signal With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit harness connector terminals 28 or 29 and ground.

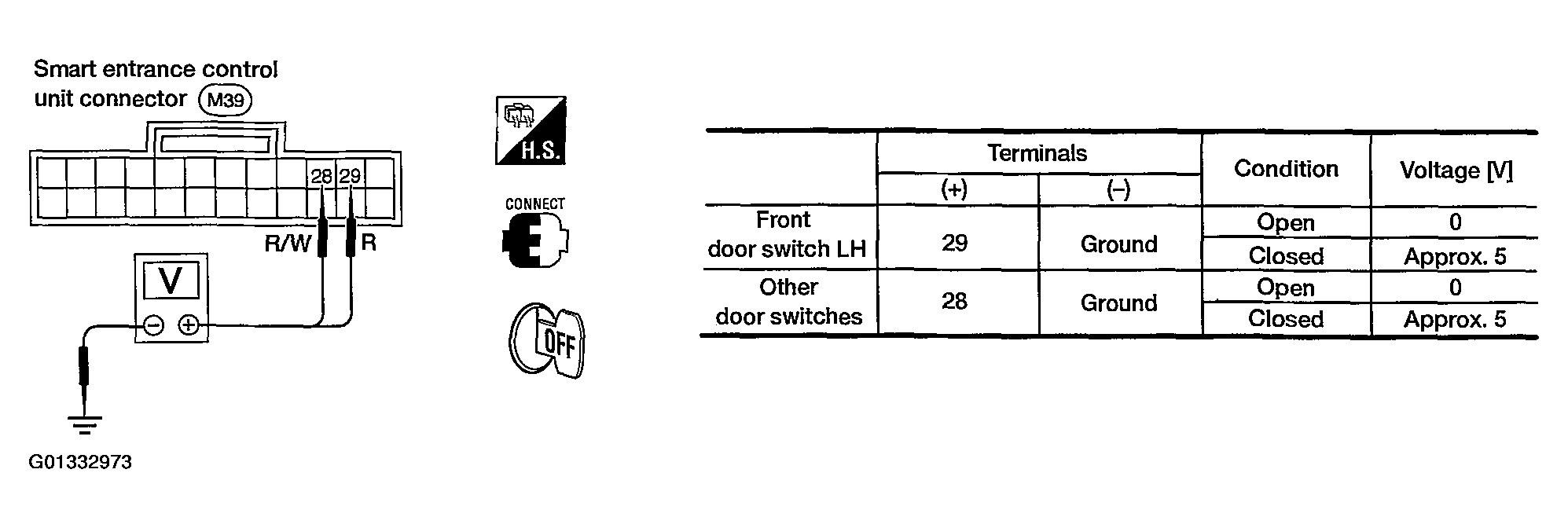

Fig 2: Checking Door Switch Input Signal Without CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "FIG. 1 ".

OK or NG

OK : Door switch is OK.

NG : GO TO 2.
CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.

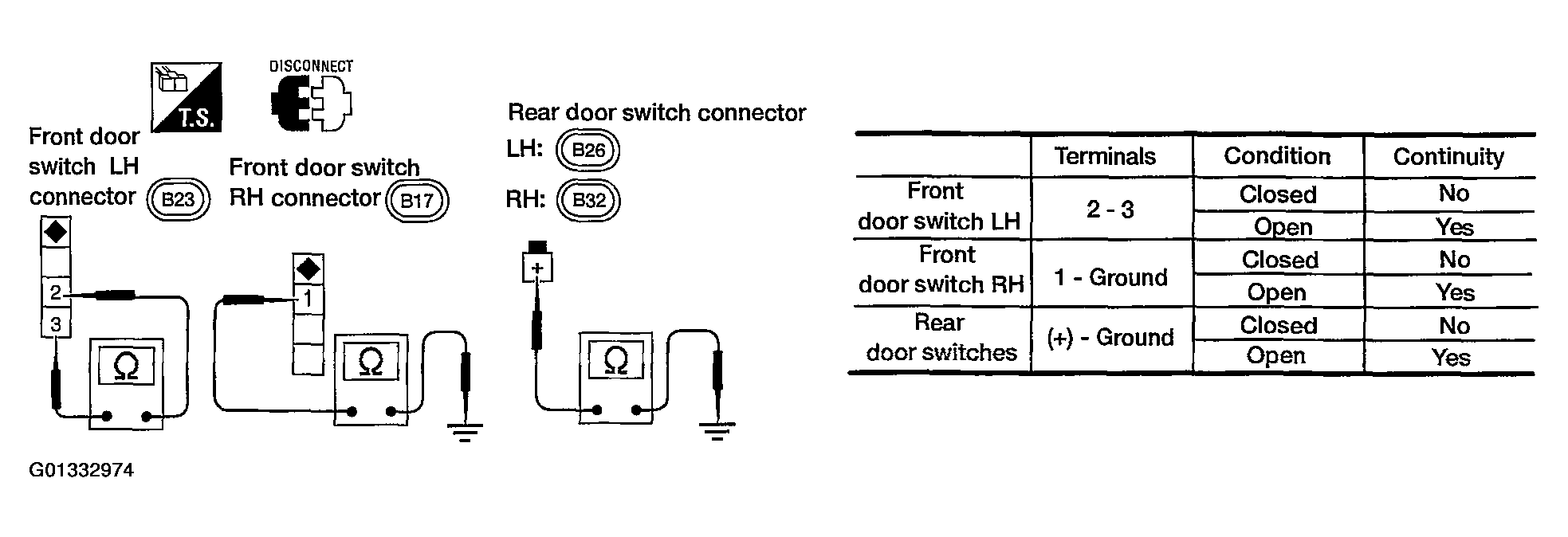

  Fig 3: Checking Door Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK : Check the following.
- Door switch ground circuit or door switch ground condition
- Harness for open or short between smart entrance control unit and door switch
NG : Replace door switch.
