KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs must be re-registered.

Turn ignition switch "OFF".

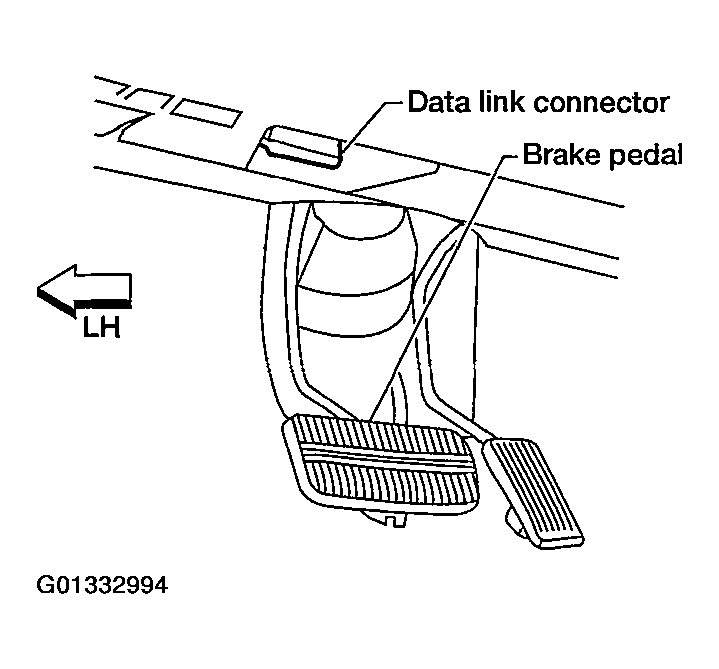

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect "CONSULT-II" to the data link connector.
Turn ignition switch "ON".

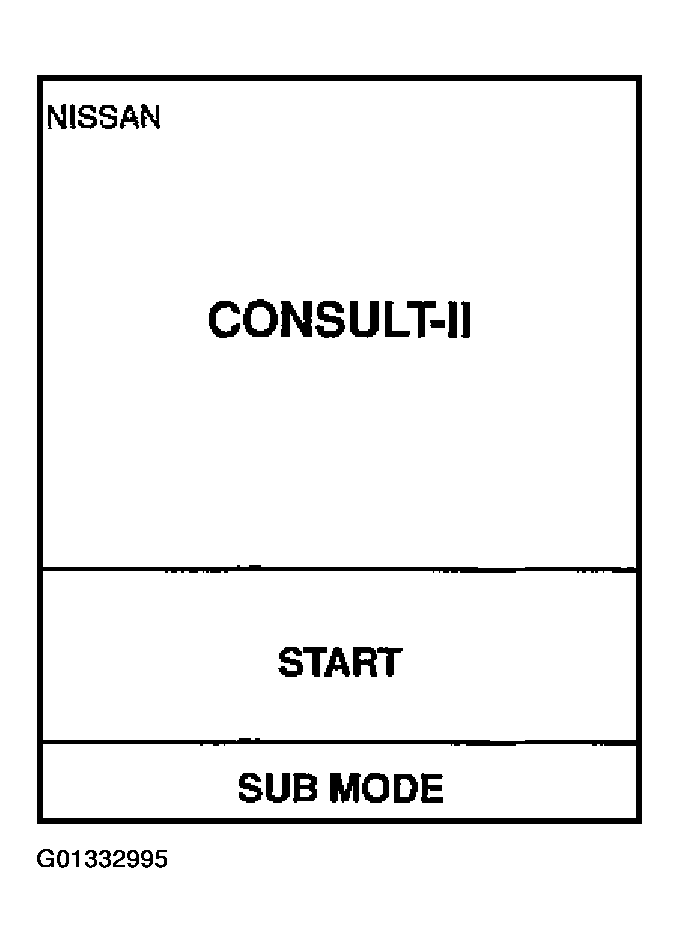

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Touch "SMART ENTRANCE".

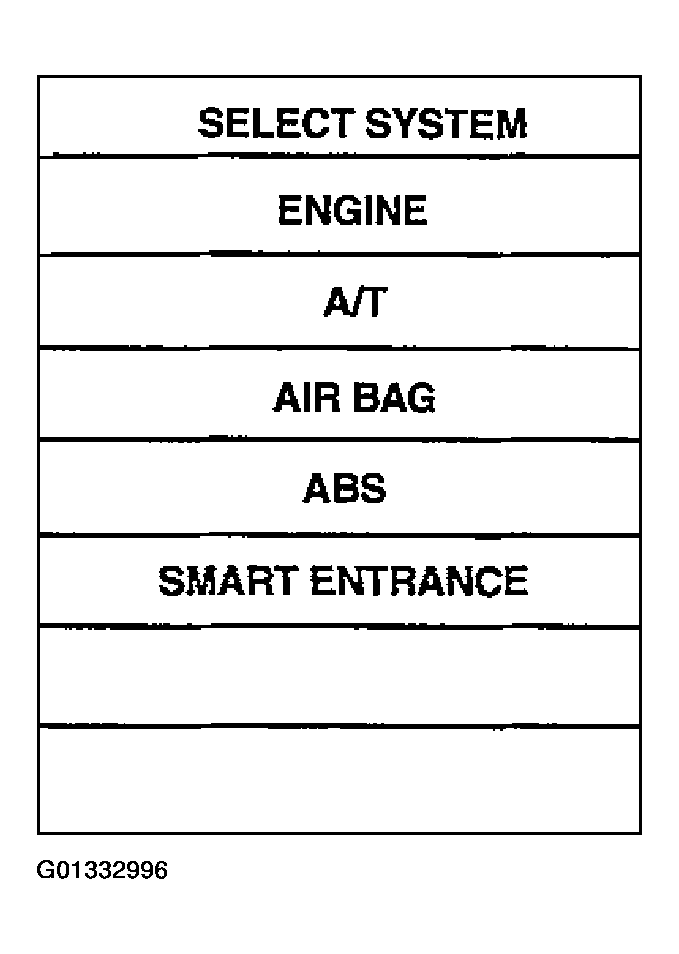

Fig 3: CONSULT-II Display - Touch "SMART ENTRANCE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

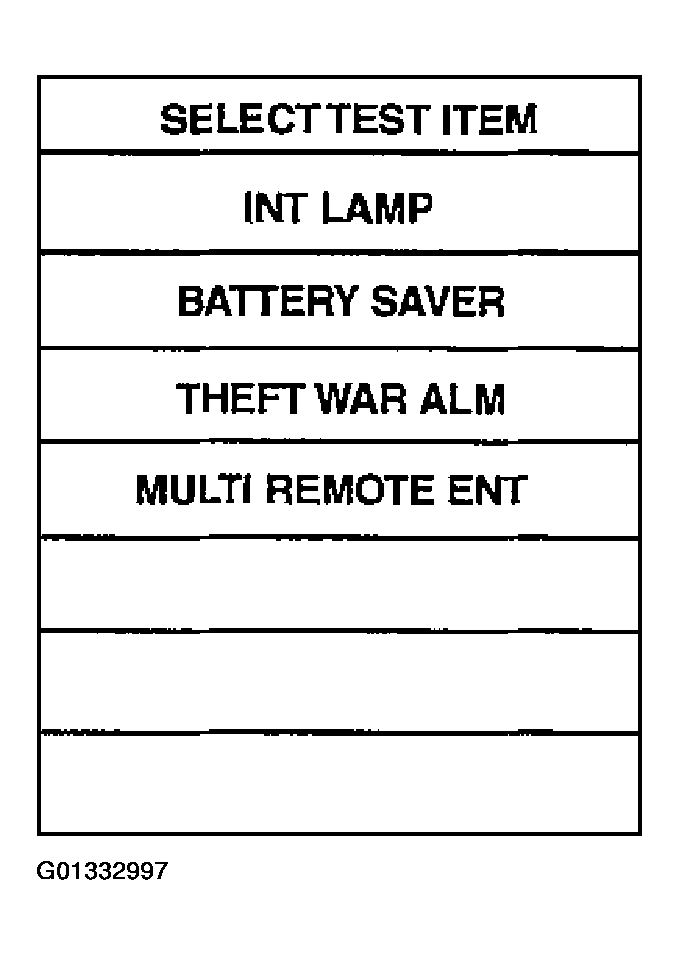

Fig 4: CONSULT-II Display - Touch "MULTI REMOTE ENT"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

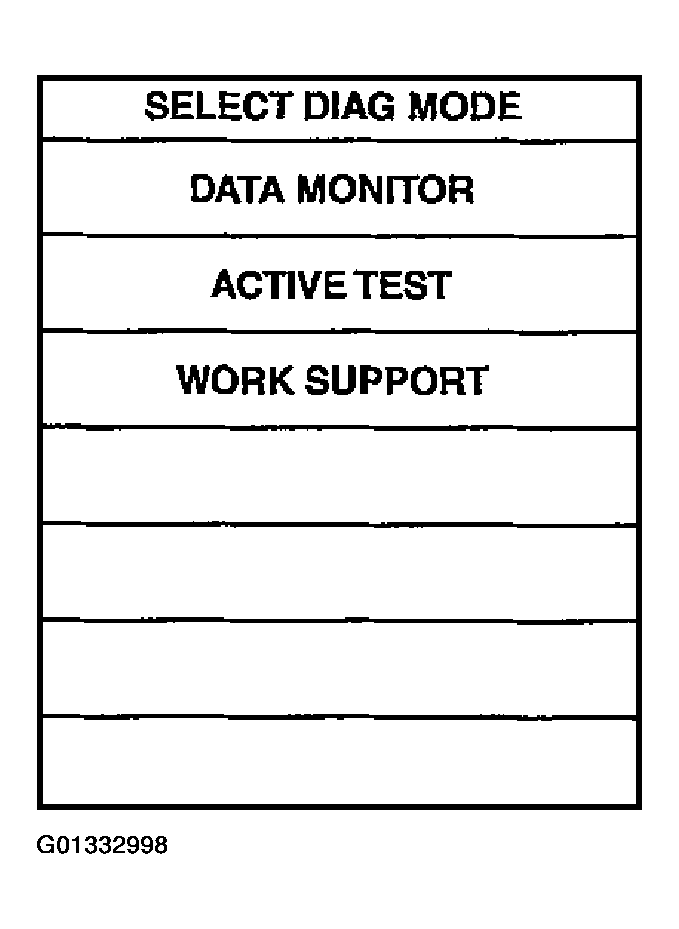

Fig 5: CONSULT-II Display - Touch "WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.

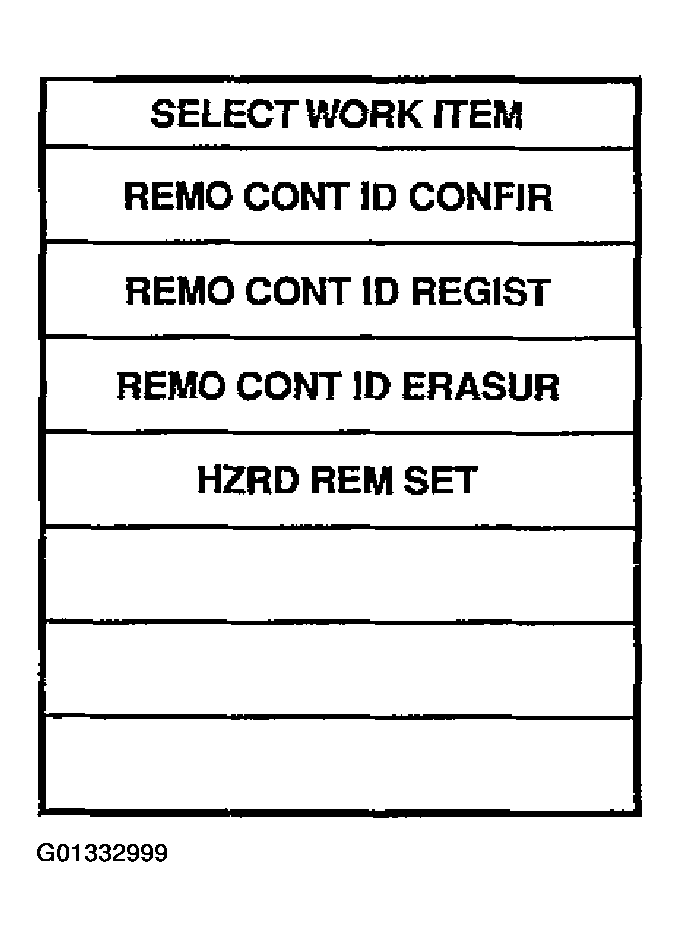

Fig 6: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown that can be set up.
- "REMO CONT 10 CONFIR" Use this mode to confirm if a keyfob 10 code is registered or not.
- "REMO CONT 10 REGIST" Use this mode to register a keyfob ID code.
  NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.
- "REMO CONT ID ERASUR" Use this mode to erase a keyfob ID code.
- "HZRD REM SET"
  Use this mode to activate or deactivate the hazard and horn reminder.
