Symptom Chart

NOTE:
  • Always check keyfob battery before replacing keyfob.
  • The panic alarm operation and trunk lid opener operation of remote keyless entry system do not activate with the ignition key inserted in the ignition key cylinder.
  • Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of keyfob before replacing keyfob.

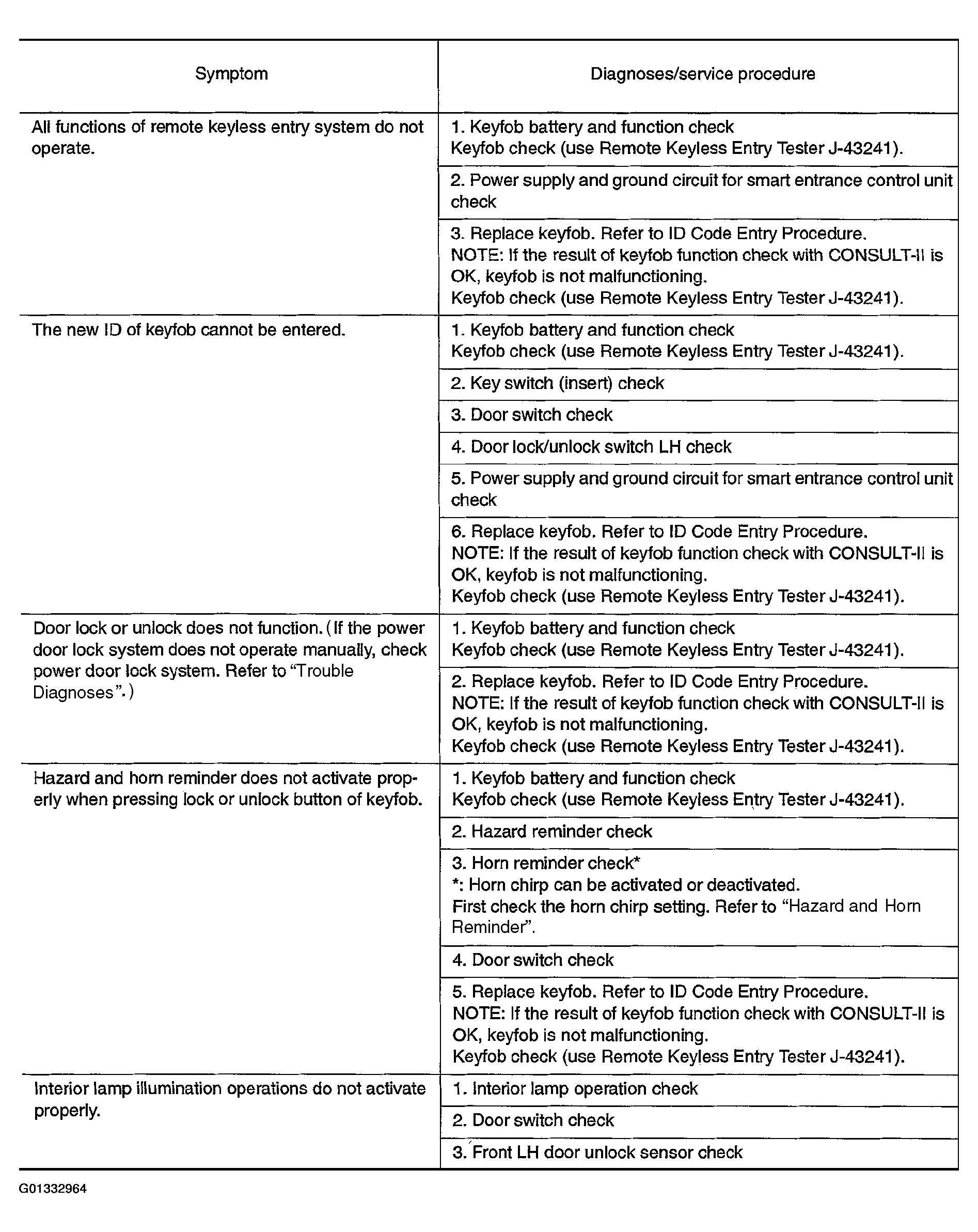

Fig 1: Symptom Chart (1 Of 2)
G01332964Courtesy of NISSAN MOTOR CO., U.S.A.

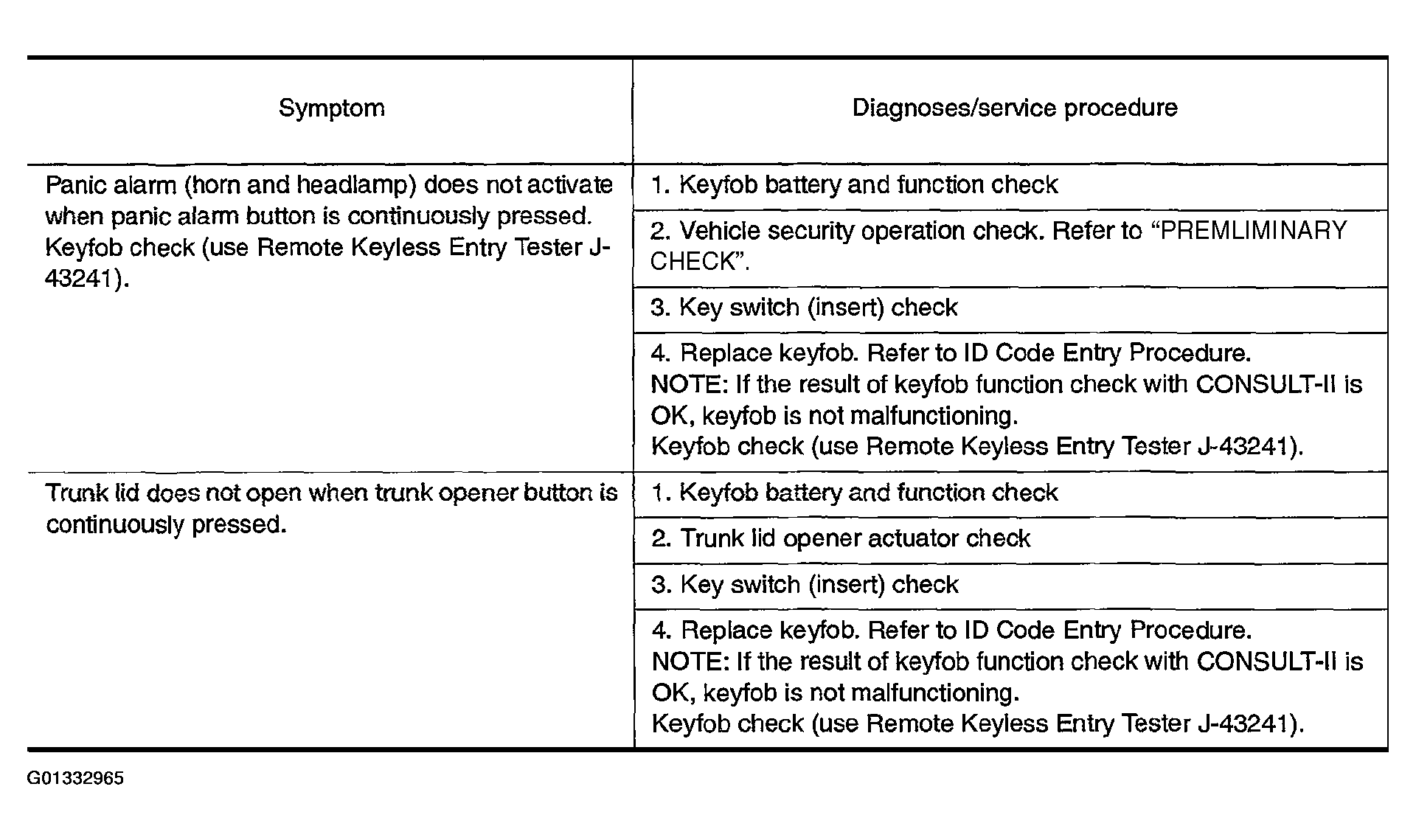

Fig 2: Symptom Chart (2 Of 2)
G01332965Courtesy of NISSAN MOTOR CO., U.S.A.
