Time Control Unit Inspection Table (Without Power Door Locks)

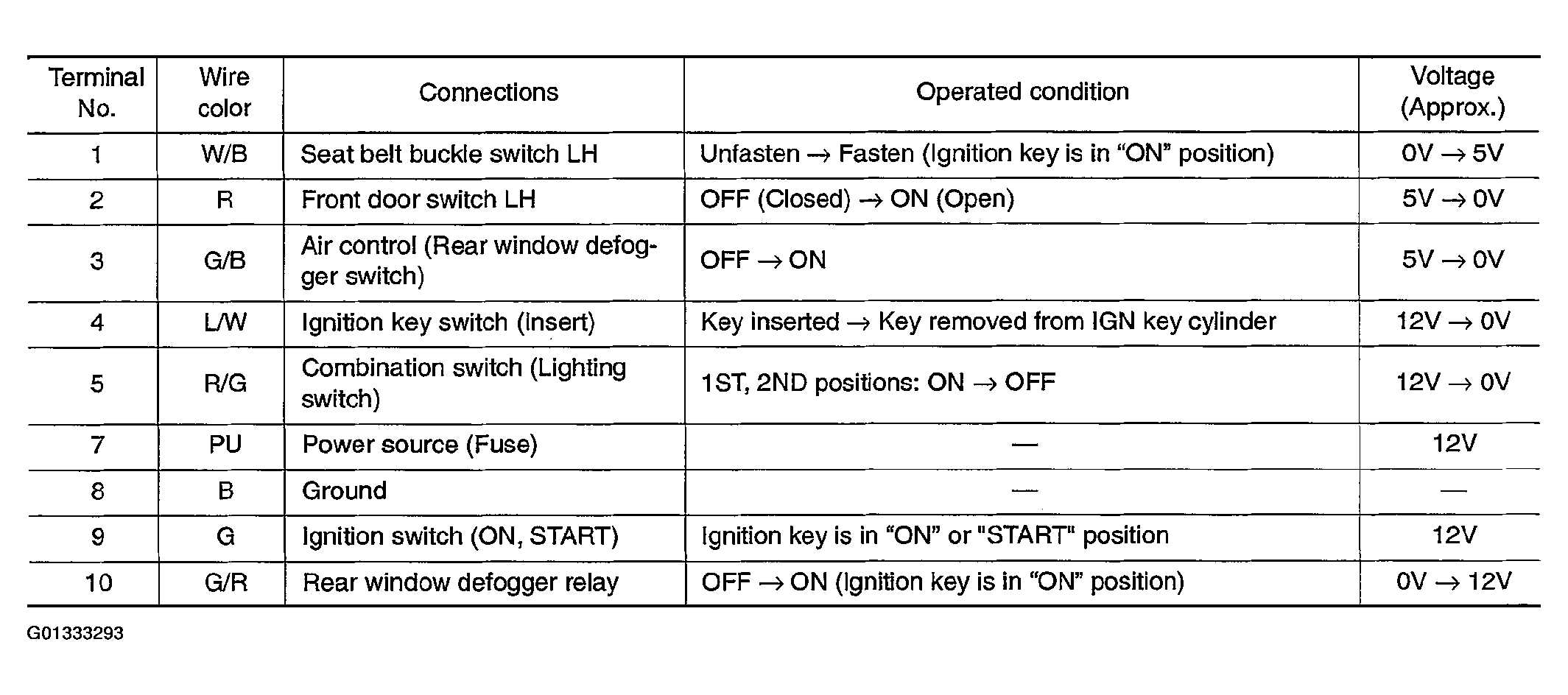

Fig 1: Time Control Unit Inspection chart (Without Power Door Locks)
G01333293Courtesy of NISSAN MOTOR CO., U.S.A.
