Drive Shaft: Components

CAUTION:
  • Circular clips should be properly meshed with differential side gear (transaxle side) and with joint assembly (wheel side). Make sure they will not come out.
  • Be careful not to damage boots. Use suitable protector or cloth during removal and installation.

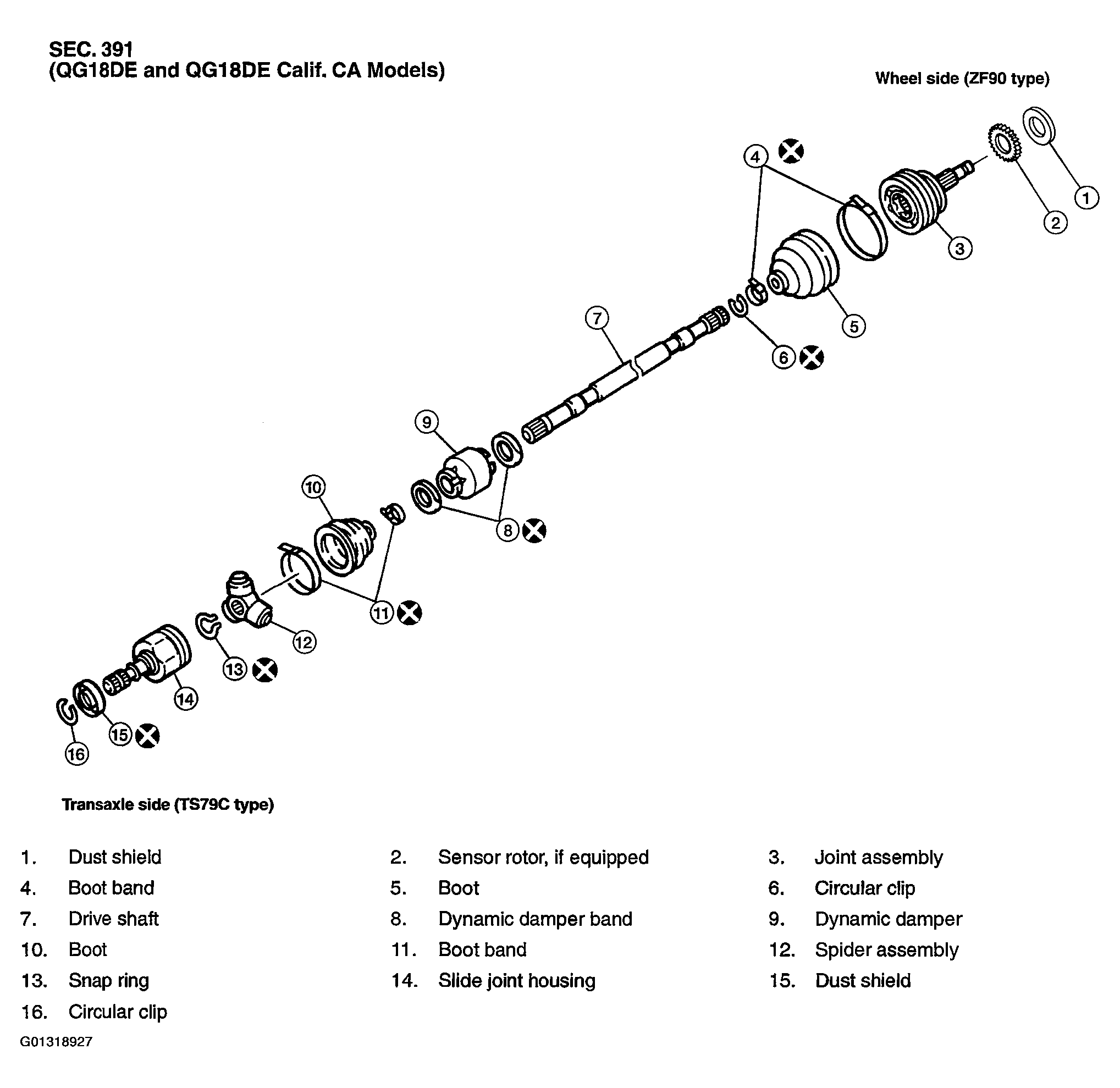

Fig 1: Identifying Drive Shaft Components (QG18DE And QG18DE CALIF. CA Models)
G01318927Courtesy of NISSAN MOTOR CO., U.S.A.

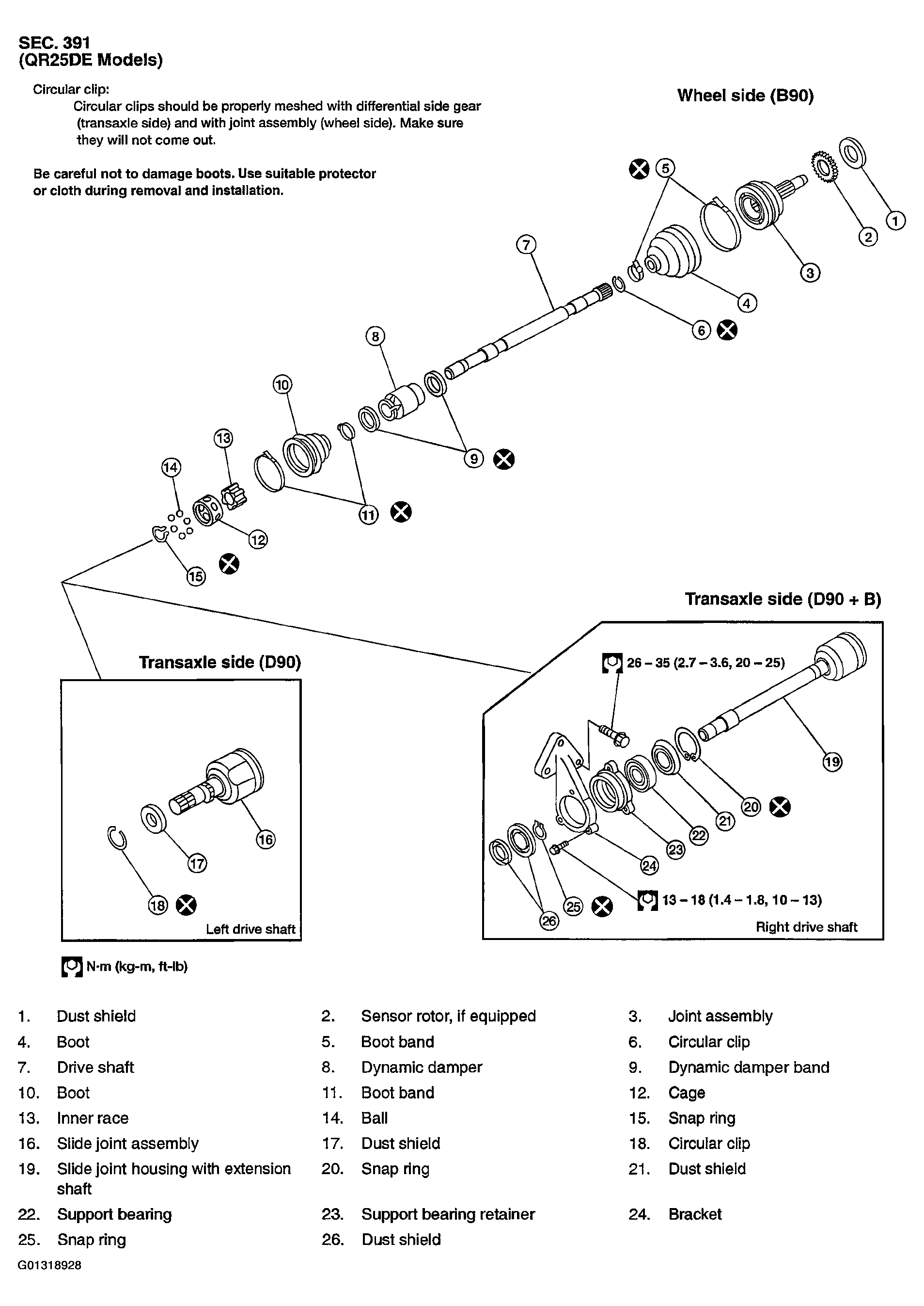

Fig 2: Identifying Drive Shaft Components (QR25DE Models 1 Of 2)
G01318928Courtesy of NISSAN MOTOR CO., U.S.A.

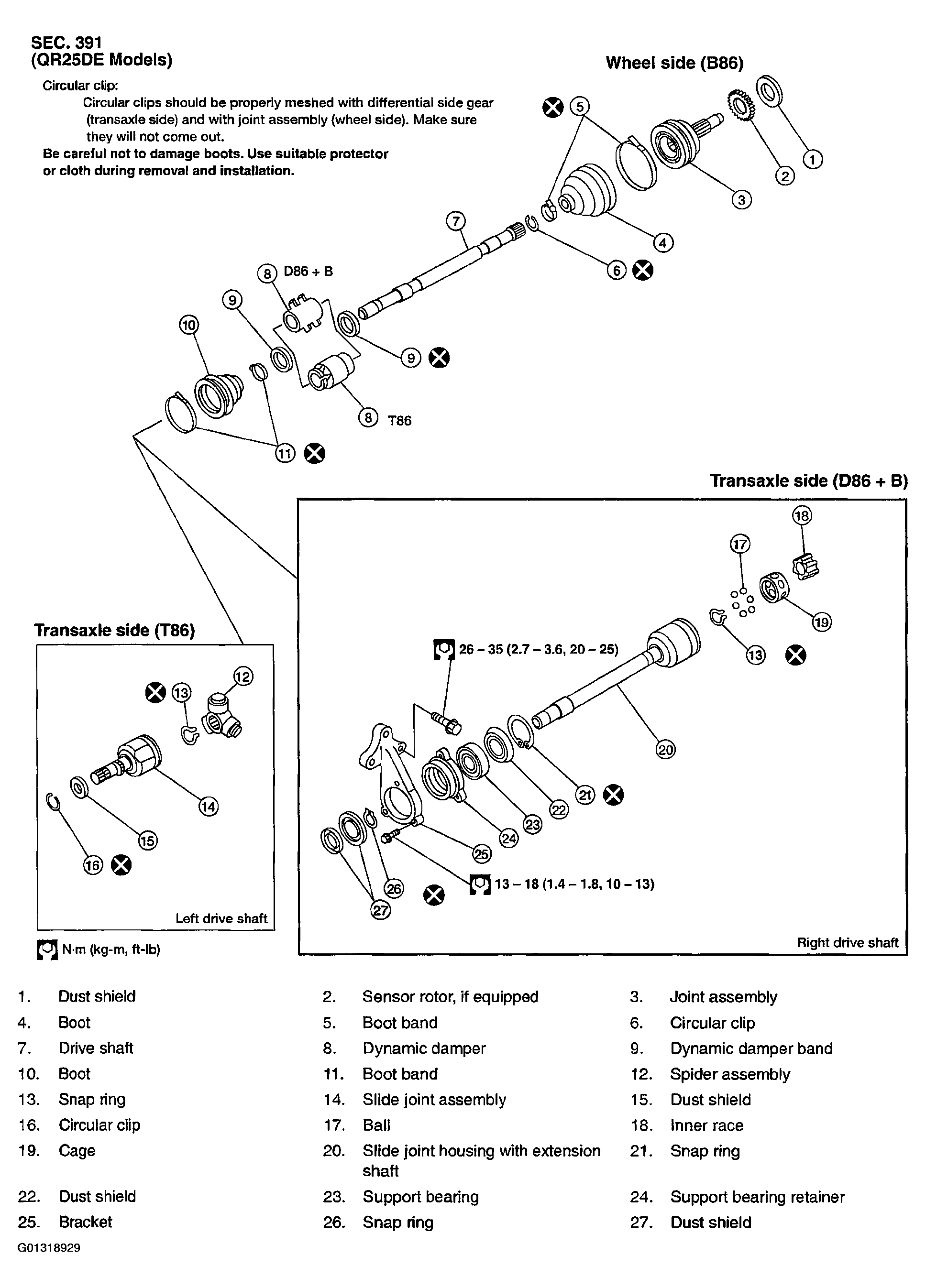

Fig 3: Identifying Drive Shaft Components (QR25DE Models 2 Of 2)
G01318929Courtesy of NISSAN MOTOR CO., U.S.A.
