Wheel Hub And Knuckle: Assembly

If baffle plate has been removed, replace it with a new one.
When installing the baffle plate, press new plate so that it is in contact with knuckle wall. Refer to figure.

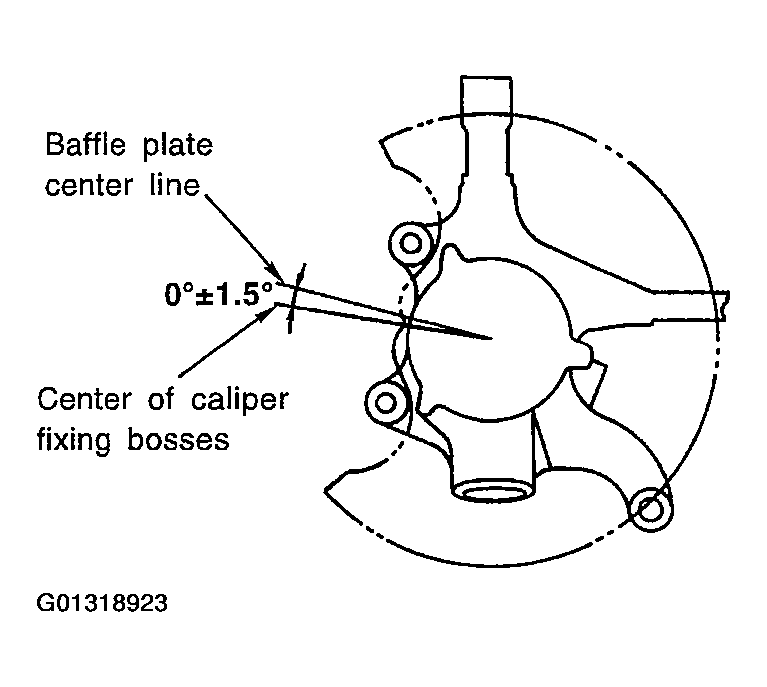

Fig 1: Identifying Angle Between Baffle Plate Centre Line And Centre Of Caliper Fixing Bosses
Courtesy of NISSAN MOTOR CO., U.S.A.

Press new wheel bearing assembly into knuckle until it seats against knuckle shoulder.
Maximum load P: 29.4 kN (3.0 ton, 3.3 US ton, 2.95 Imp ton)

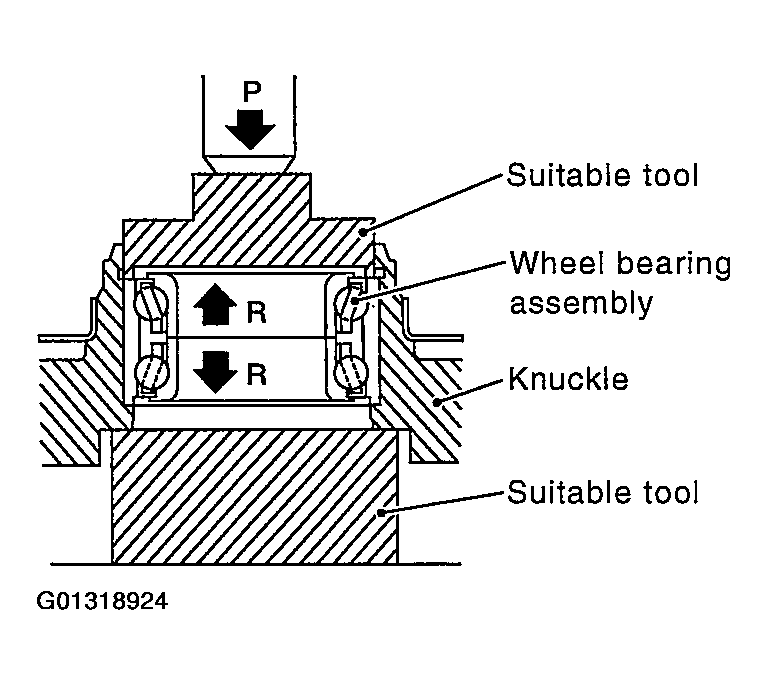

Fig 2: Pressing Wheel Bearing Assembly Into Knuckle Until It Seats Against Knuckle Shoulder
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not apply disassembly force in direction "R". There is a possibility of breaking the seal. In case of separation (except range of initial clearance) and disassembling of inner race, the wheel bearing must be replaced with a new part.
- Do not press inner race of wheel bearing assembly or seal.
- Do not apply oil or grease to mating surfaces of wheel bearing outer race and knuckle.
Install outer snap ring into groove of knuckle.
Press wheel hub into knuckle until it stops when the end of the wheel bearing is hit.
Maximum load P: 49.0 kN (5.0 ton, 5.5 US ton, 4.9 lmp ton)

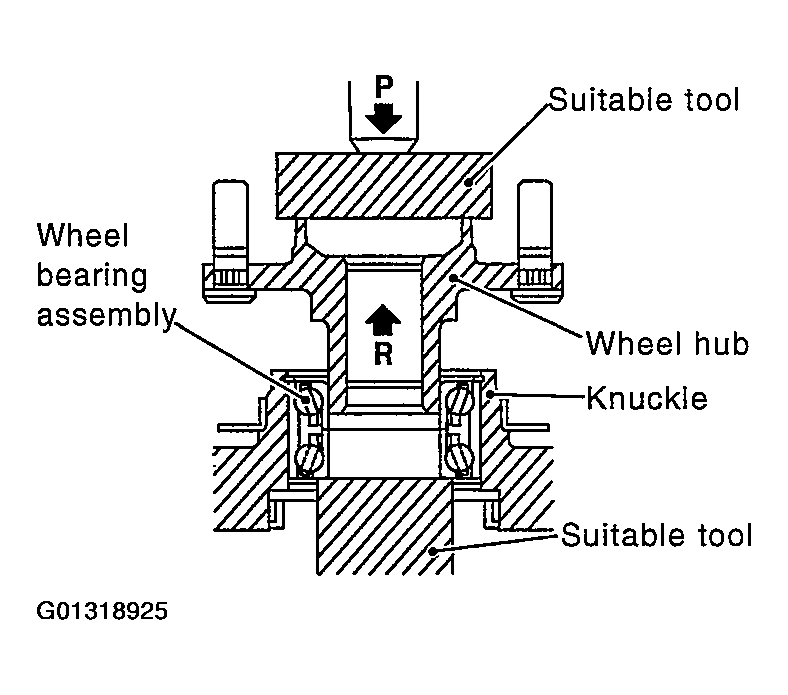

Fig 3: Pressing Wheel Hub Into Knuckle Until It Stops When End Of Wheel Bearing Is Hit
Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not move wheel hub in direction "R".

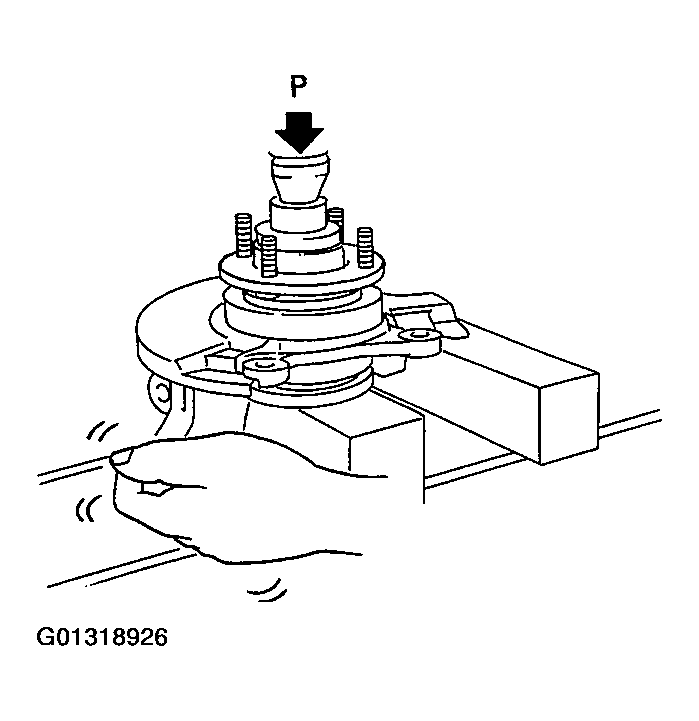

Check bearing operation.
1. Add load P with press.
  Load P: 34.3 - 49.0 kN

  (3.5 - 5.0 ton, 3.9 - 5.5 US ton, 3.44 - 4.92 lmp ton)
2. Spin knuckle several turns in both directions.
3. Make sure that wheel bearings operate smoothly.
