ECM Connector End View (F60)

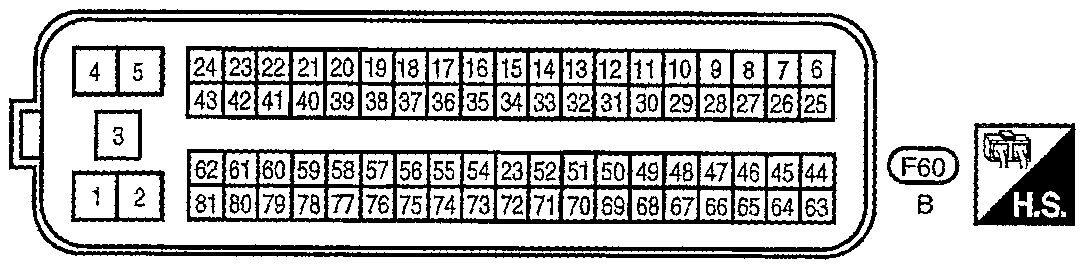

Fig 1: ECM Connector End View (F60)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
