Removal and Installation

CAUTION:

Lock the CD changer unit mechanism (models with CD changer).
Disconnect both terminals from battery and wait three minutes.
Disconnect air bag module connectors in advance.
Be careful not to scratch pad and other parts.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

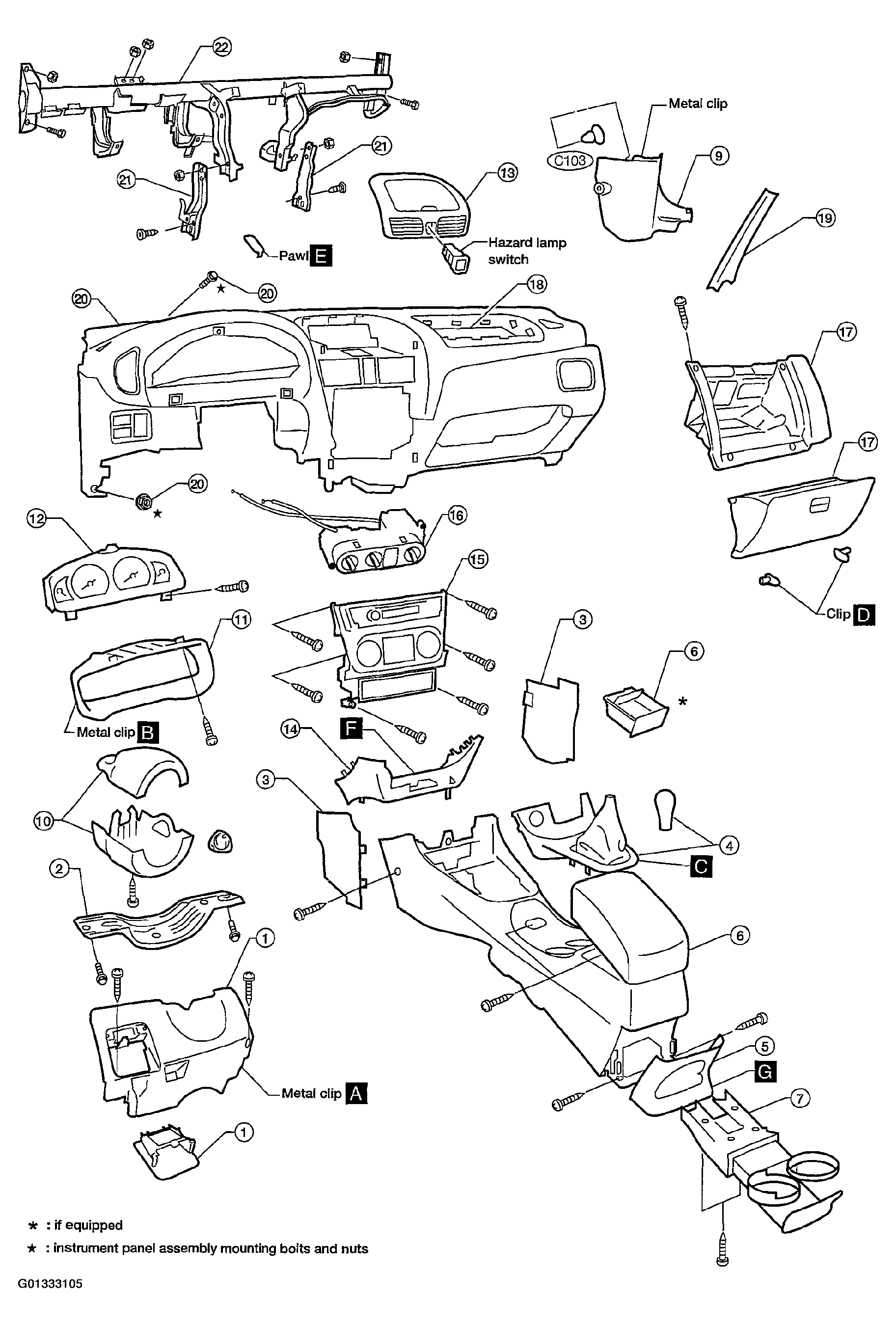

Fig 1: Instrument Panel Assembly Removal Sequence Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

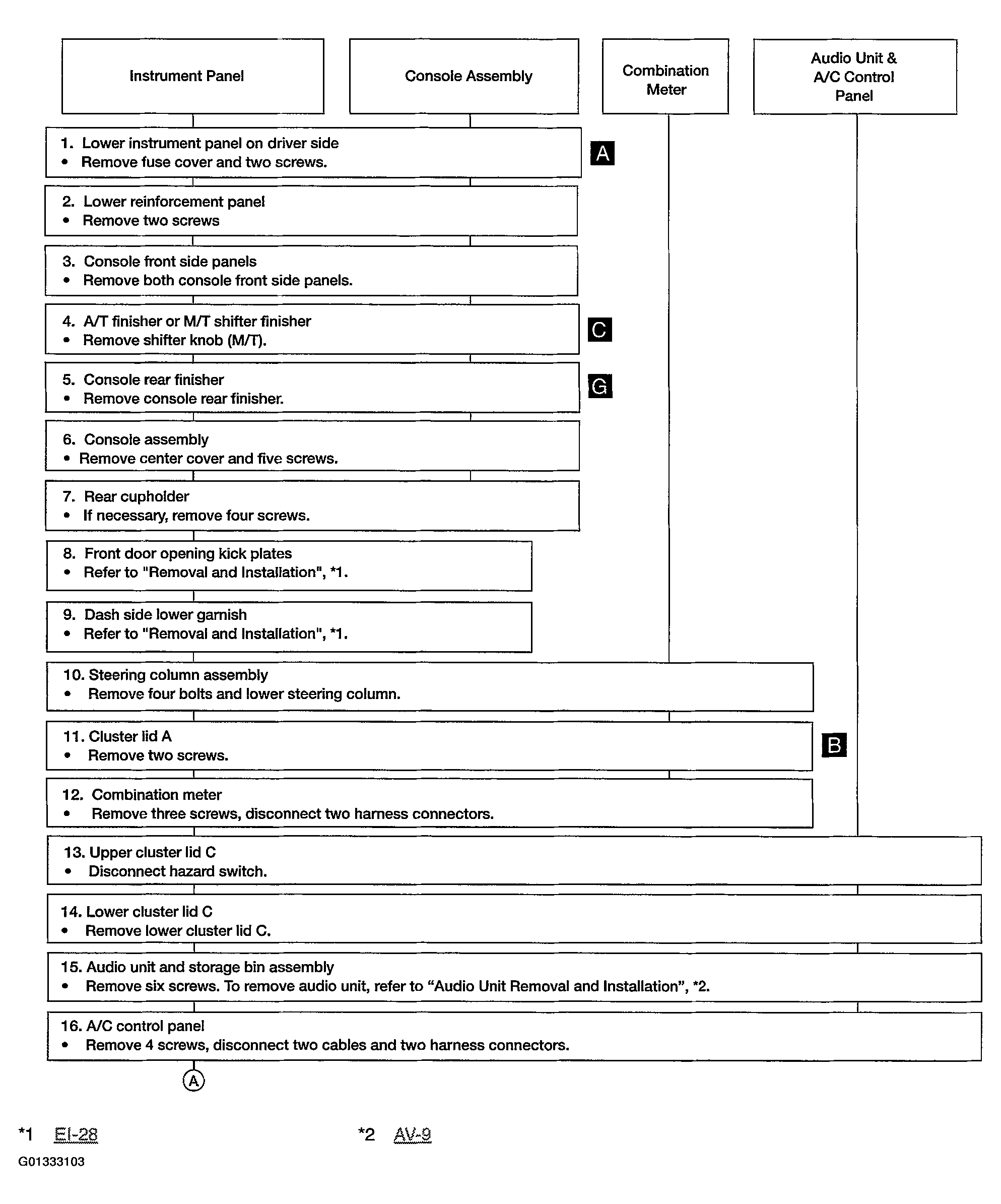

Fig 2: Instrument Panel Assembly Removal Sequence Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

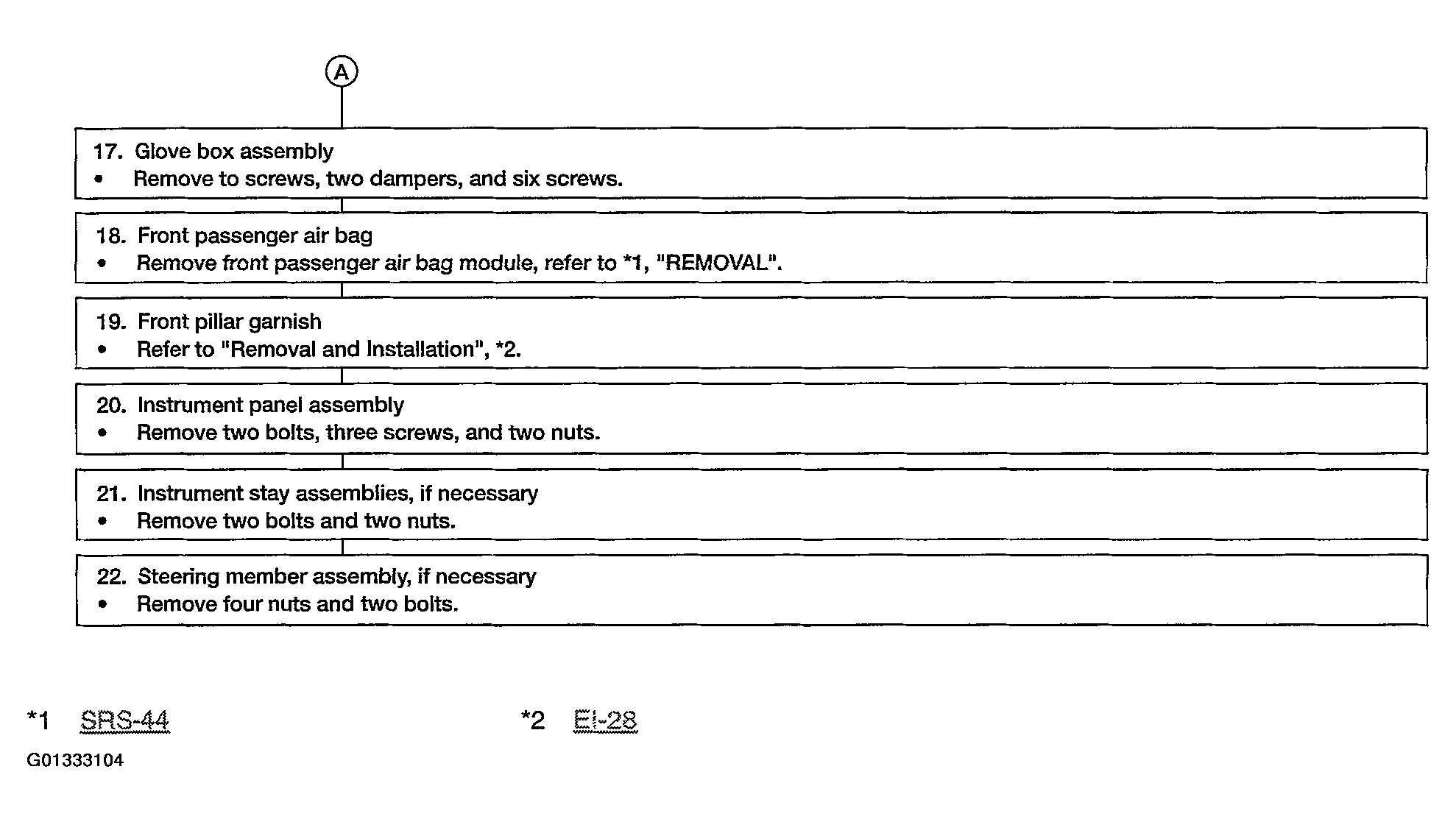

Fig 3: Instrument Panel Assembly Removal Sequence Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

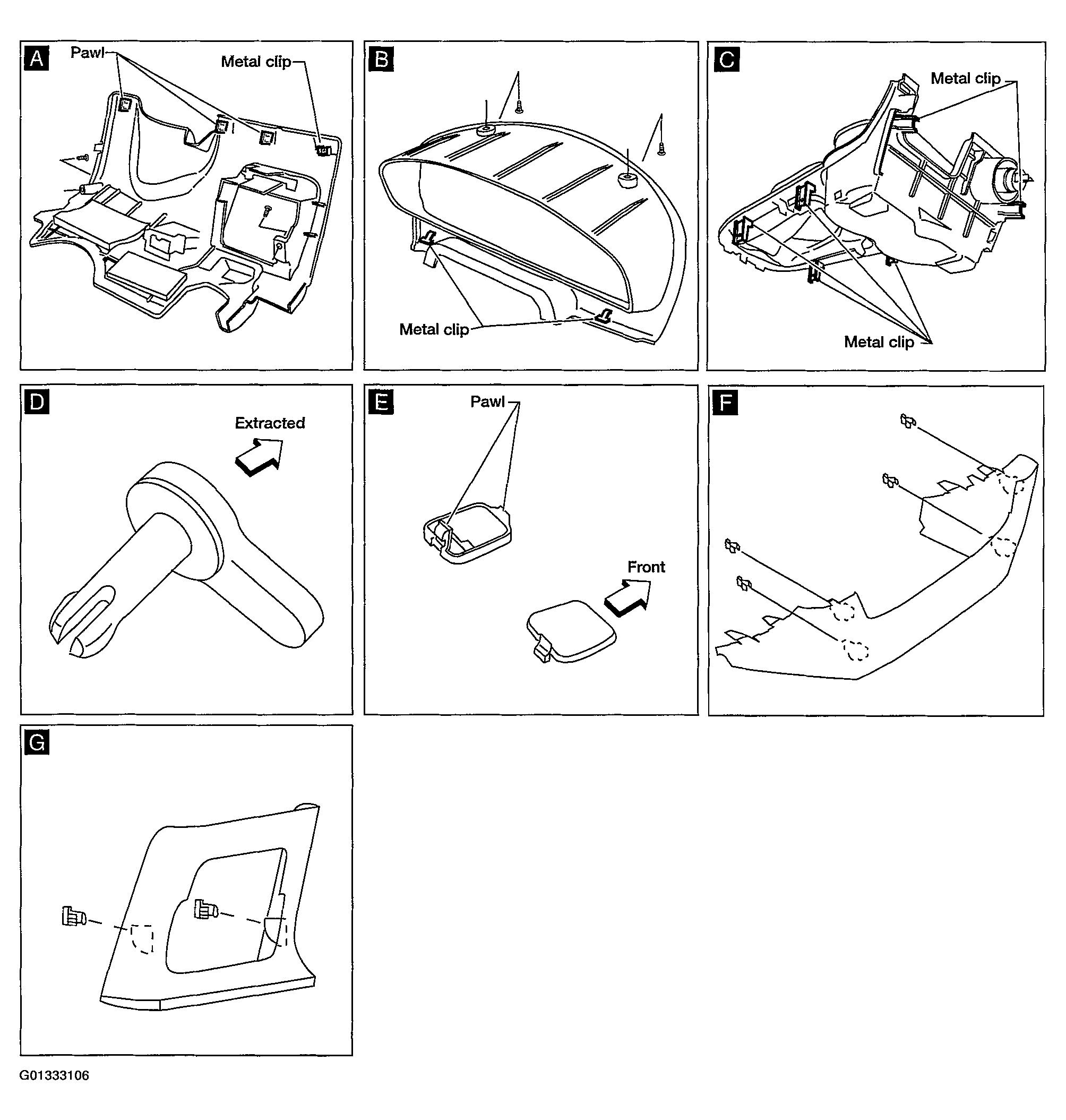

Fig 4: Instrument Panel Assembly Removal Sequence Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
