Valve Clearance: Maxima

NOTE: On Maxima and I35 (3.5L), check and adjust valve clearance when engine is cold.

For valve clearance inspection, see Fig 1 and Fig 2 . For adjustment, see Fig 3.

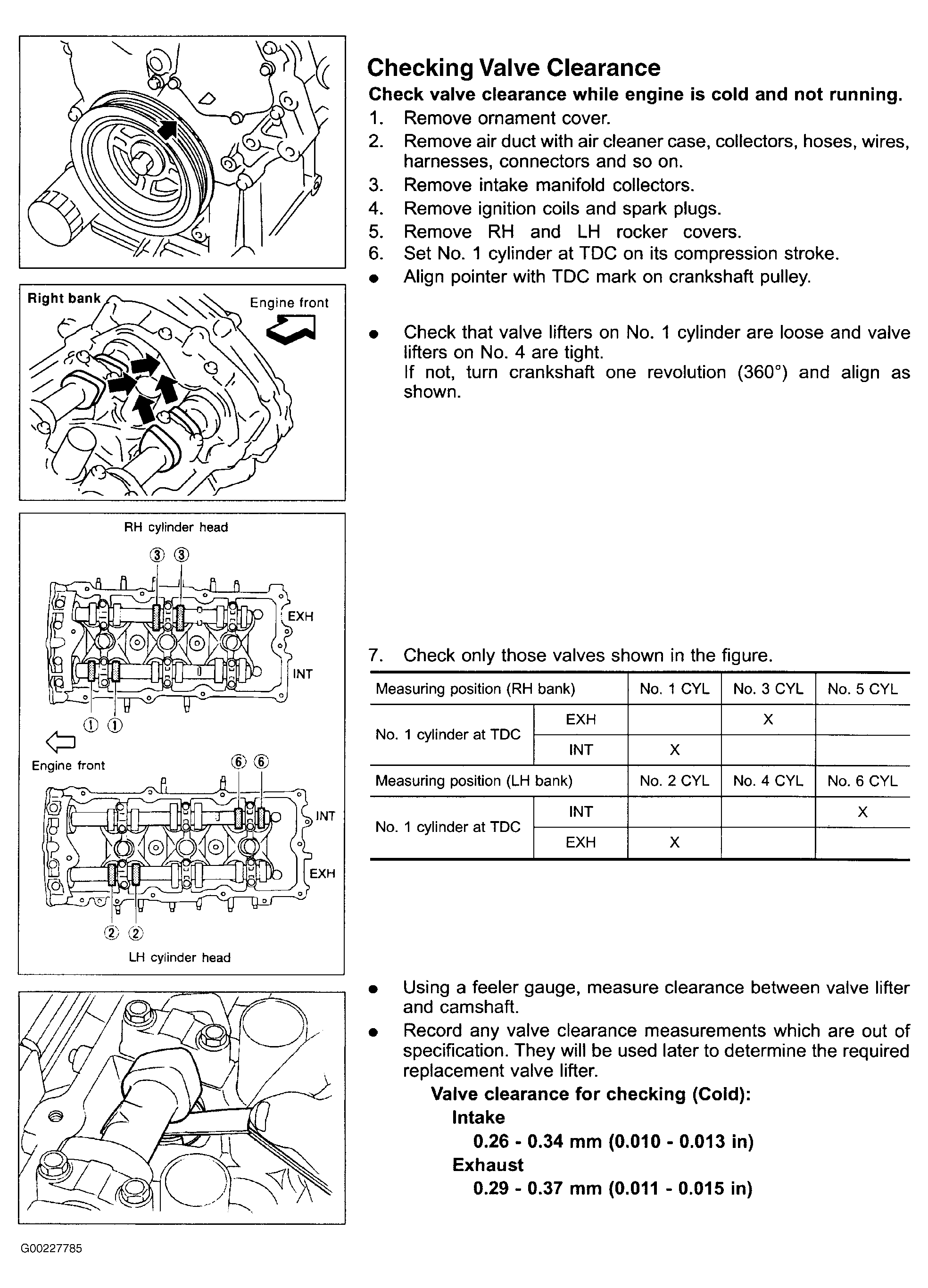

Fig 1: Inspecting Valve Clearance (Maxima & I35 - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Inspecting Valve Clearance (Maxima & I35 - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

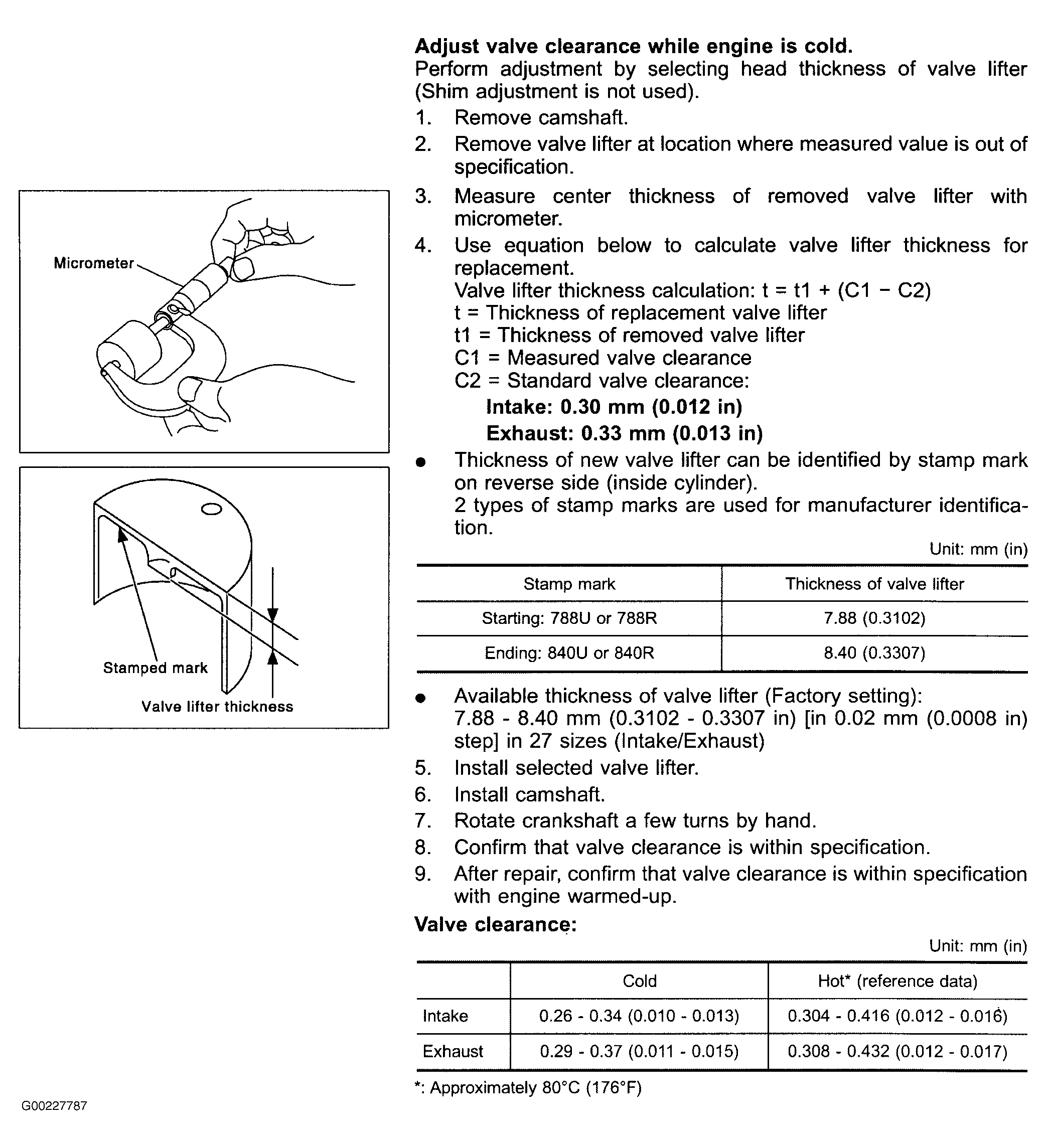

Fig 3: Adjusting Valve Clearance (Maxima & I35)

Courtesy of NISSAN MOTOR CO., U.S.A.
