Removal and Installation: Installation

Installation is in the reverse order of removal. Connect the quick connector as follows:

1. Align mating marks on the fuel pump outlet and the quick connector for correct installation.
2. Align the push tabs with the quick connector slots.
3. Insert the fuel pump outlet into the center of the quick connector until you hear a click.

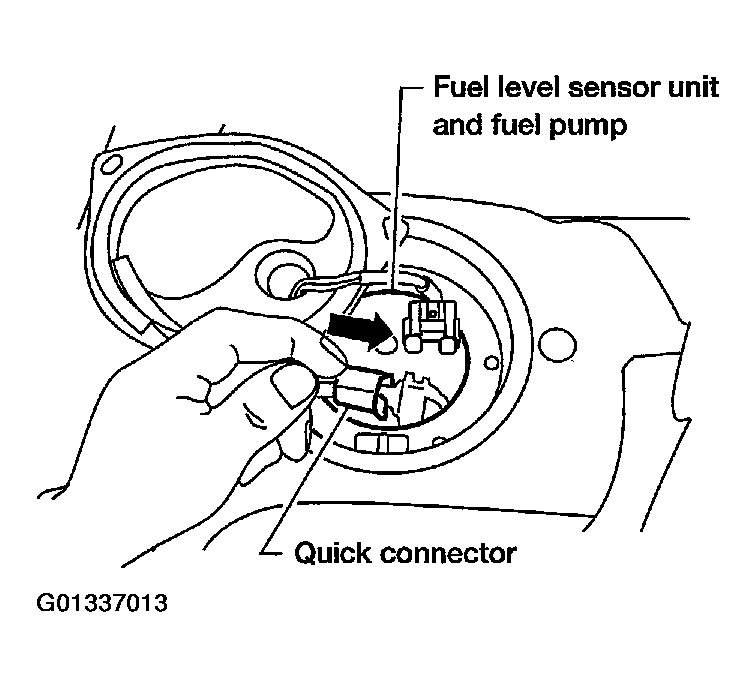

Fig 1: Connecting Fuel Pump Outlet Quick Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

After connecting the quick connector, check that the quick connector is fully seated as follows:

1. Pull on the quick connector to make sure it is firmly connected.

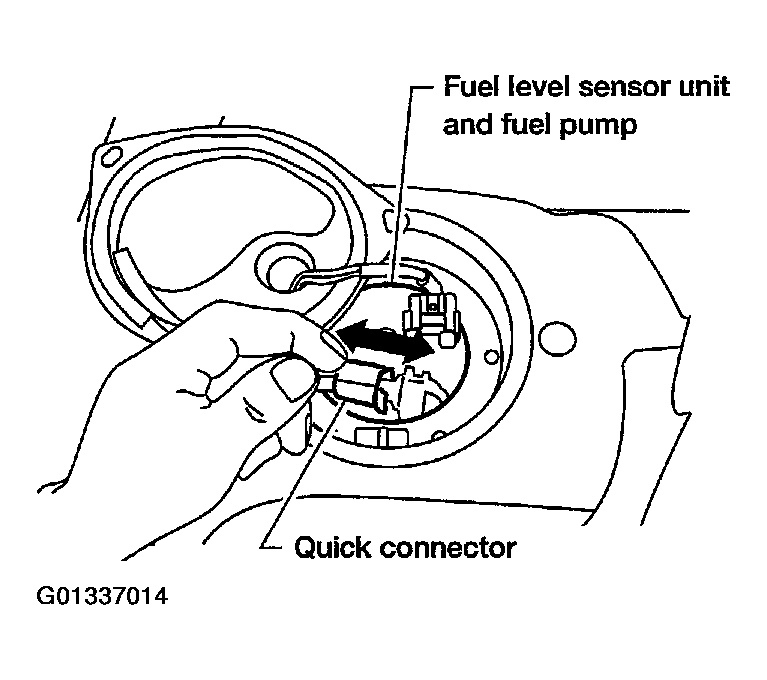

   Fig 2: Checking Quick Connector Is Firmly Connected

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Apply fuel pressure to the fuel lines by turning the ignition switch ON (without starting the engine). Then check for fuel leaks at the hose connections.
3. Start the engine and increase engine speed, verify that there are no fuel leaks.
