Component Locations

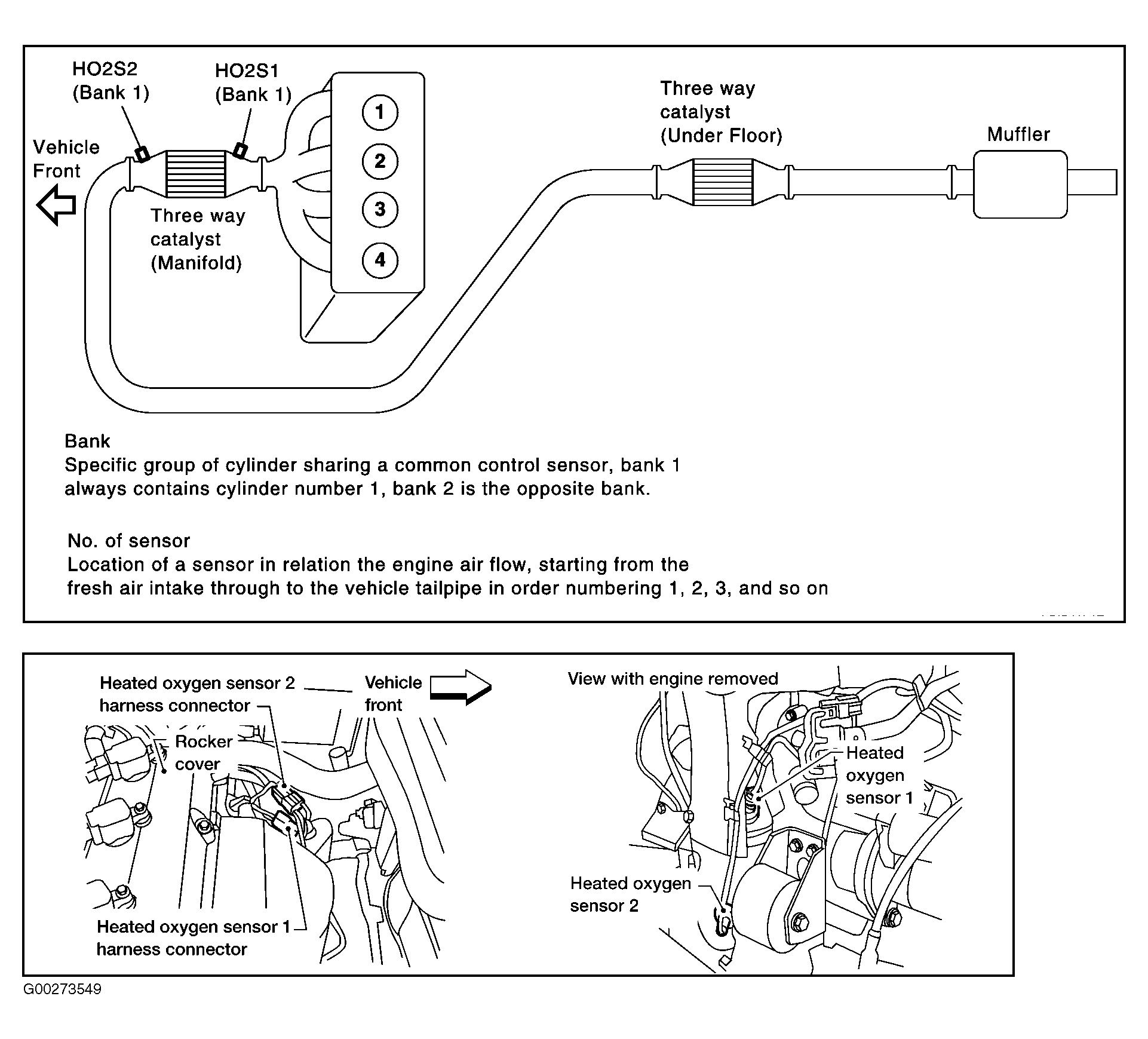

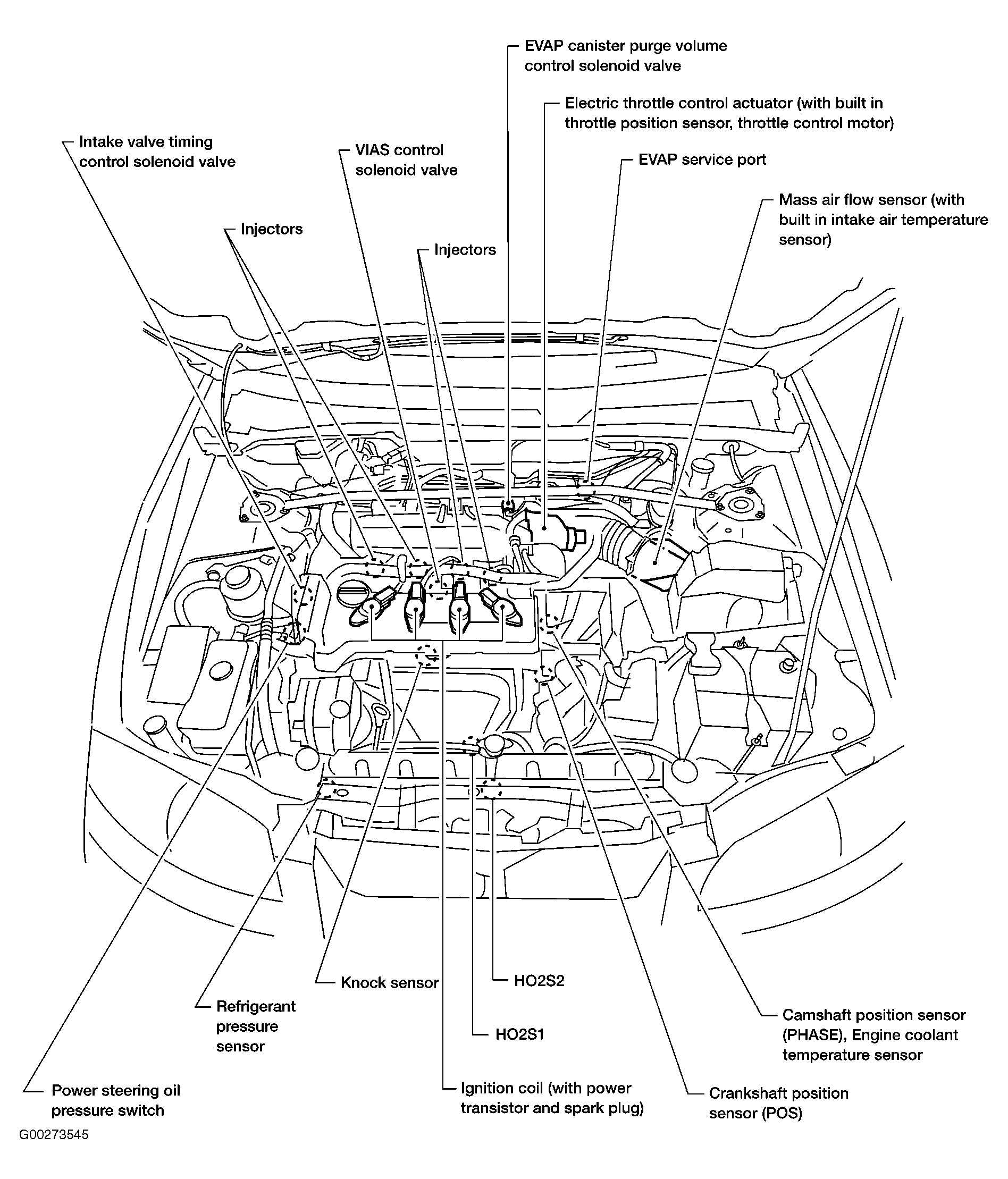

Fig 1: Locating Engine Compartment Components (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Engine Compartment Components (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

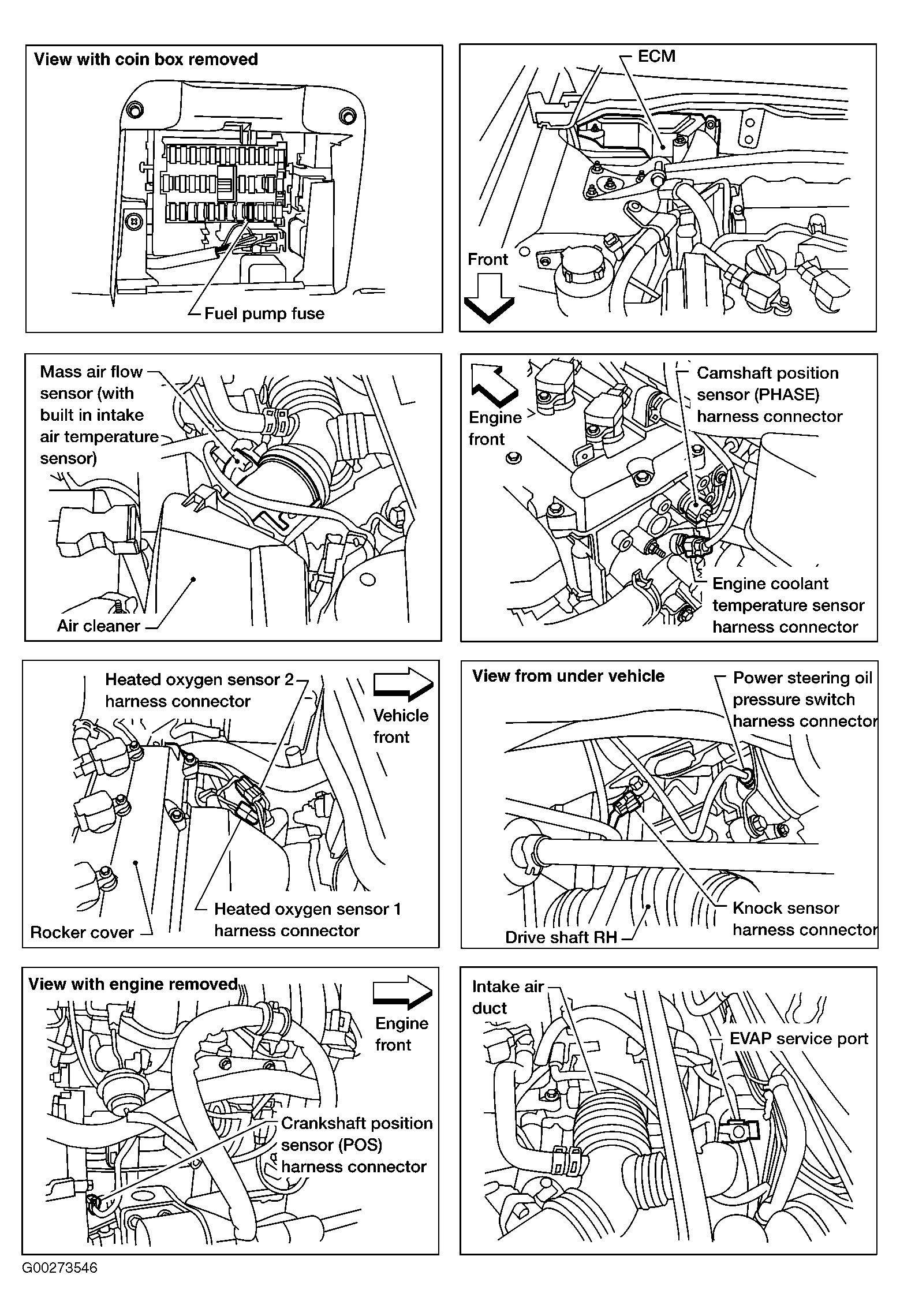

Fig 3: Locating Engine Compartment Components (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

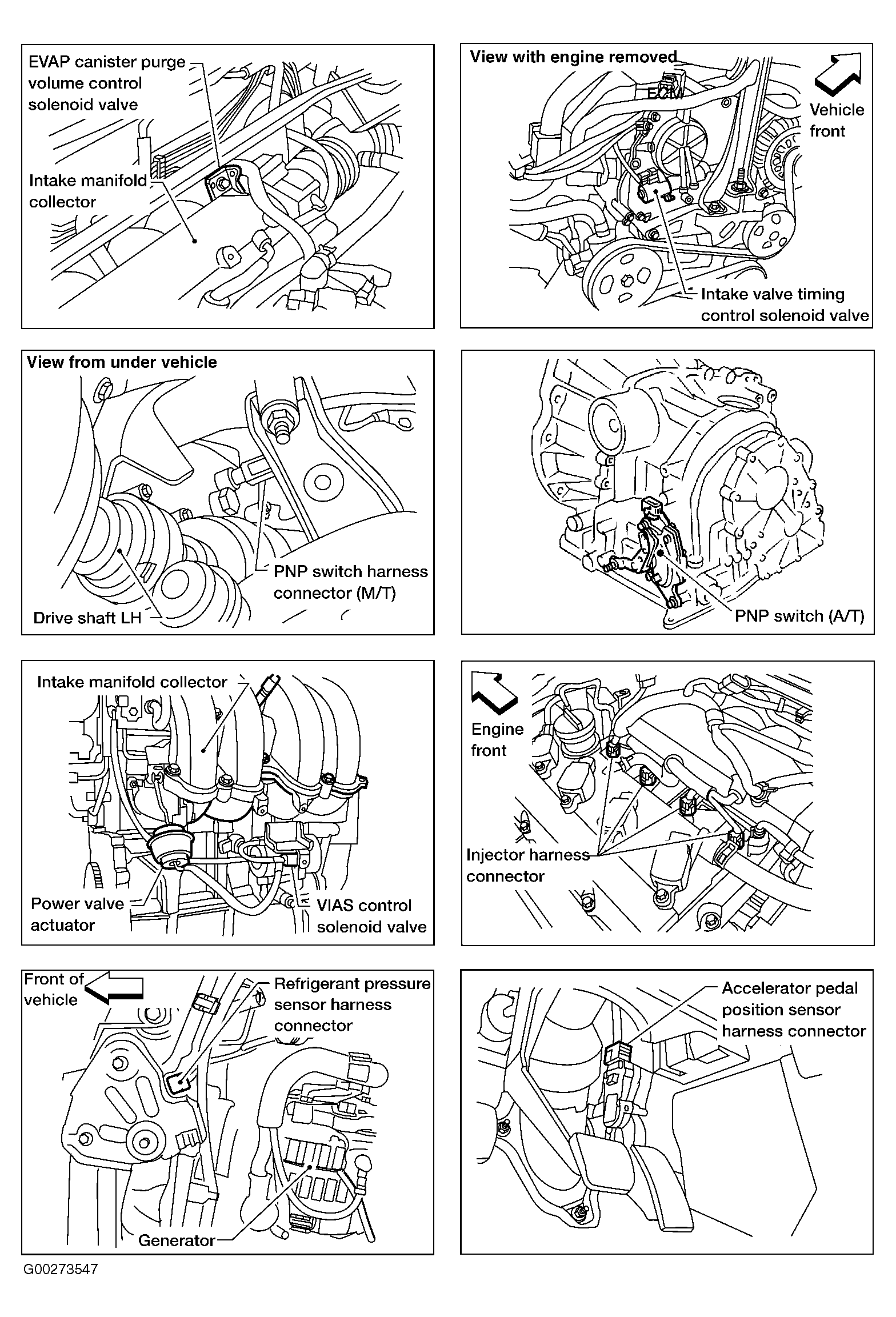

Fig 4: Locating Engine Compartment Components (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

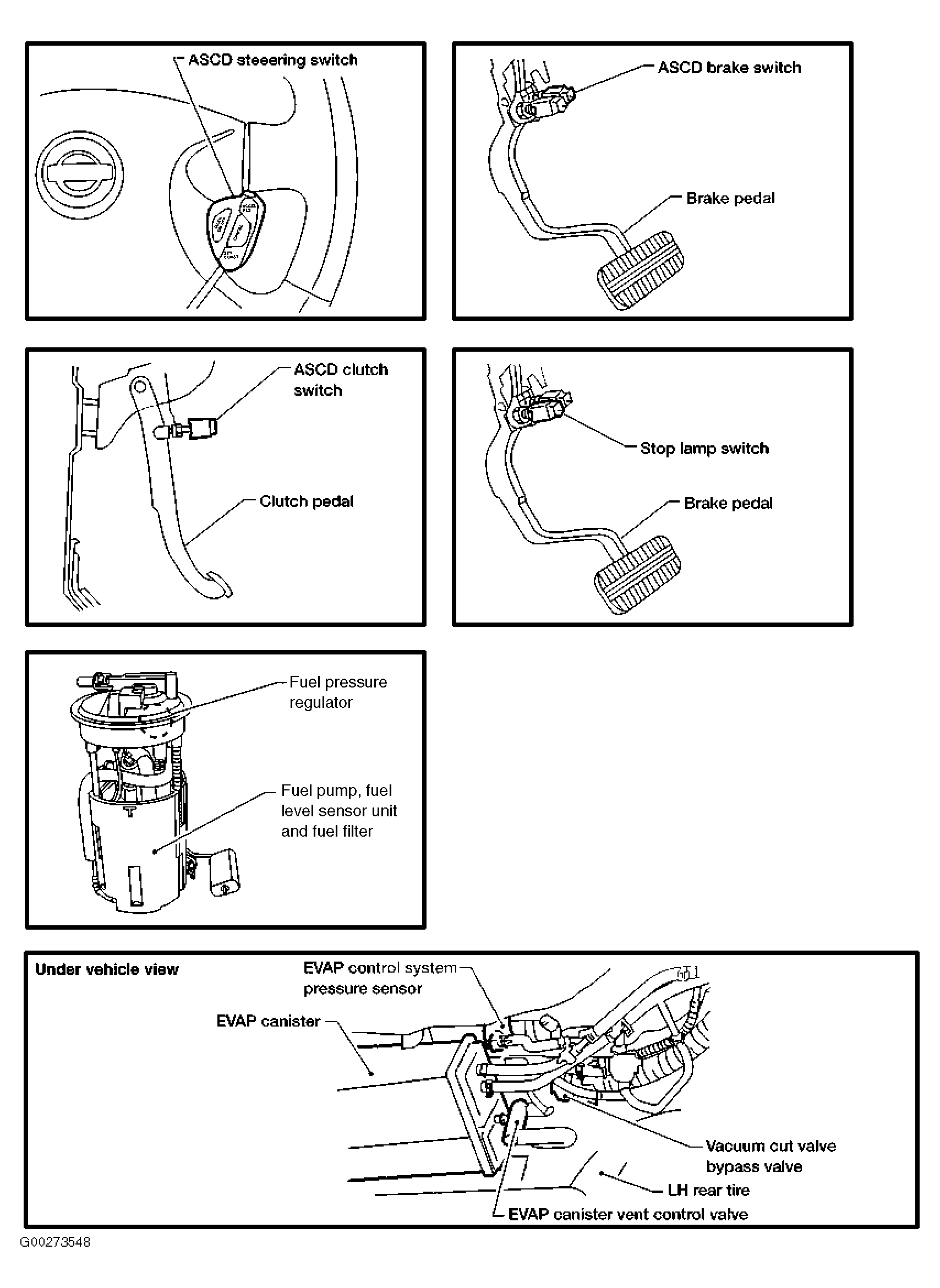

Fig 5: Locating Engine Compartment Components (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

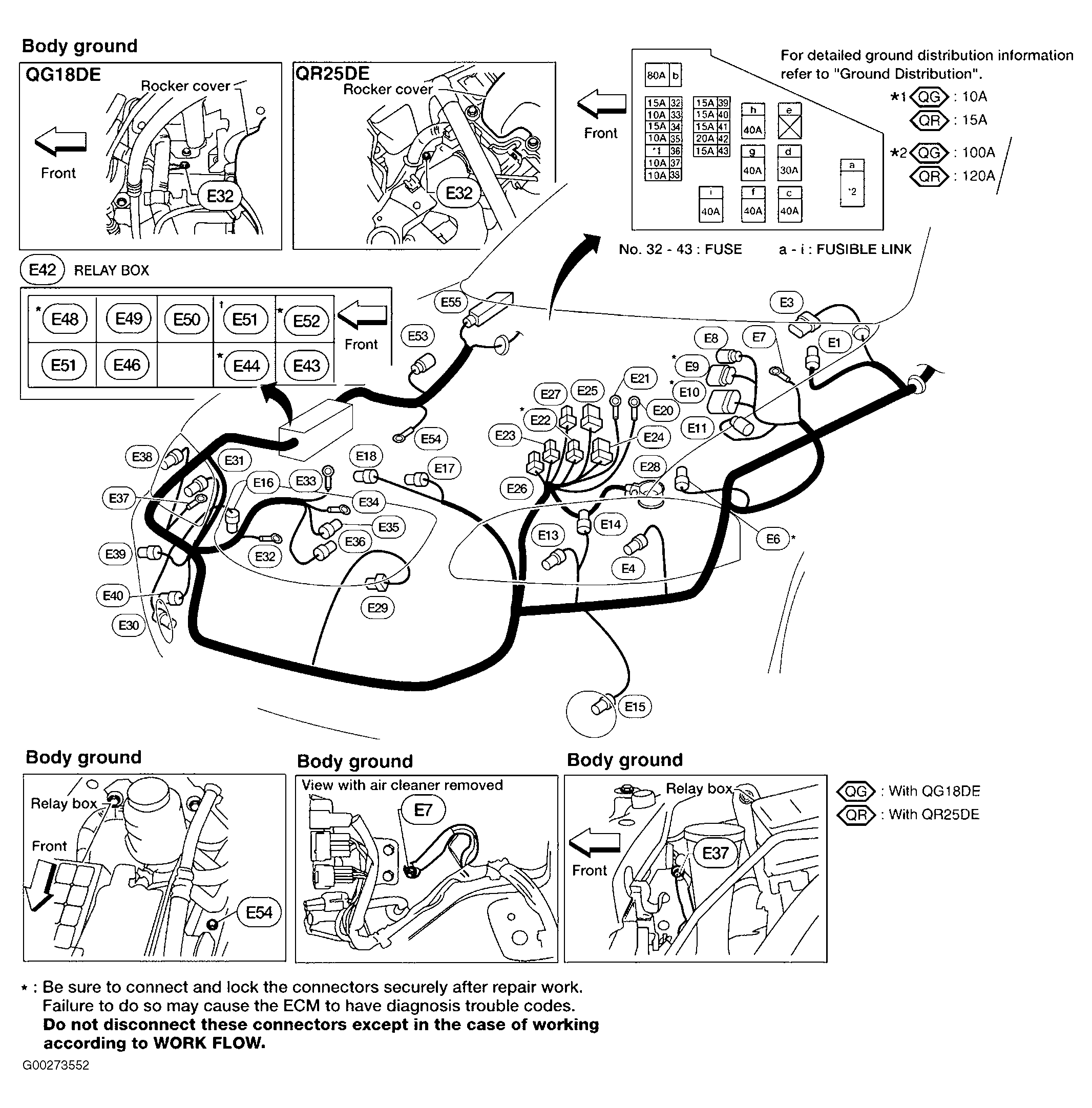

Fig 6: Locating Engine Compartment Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

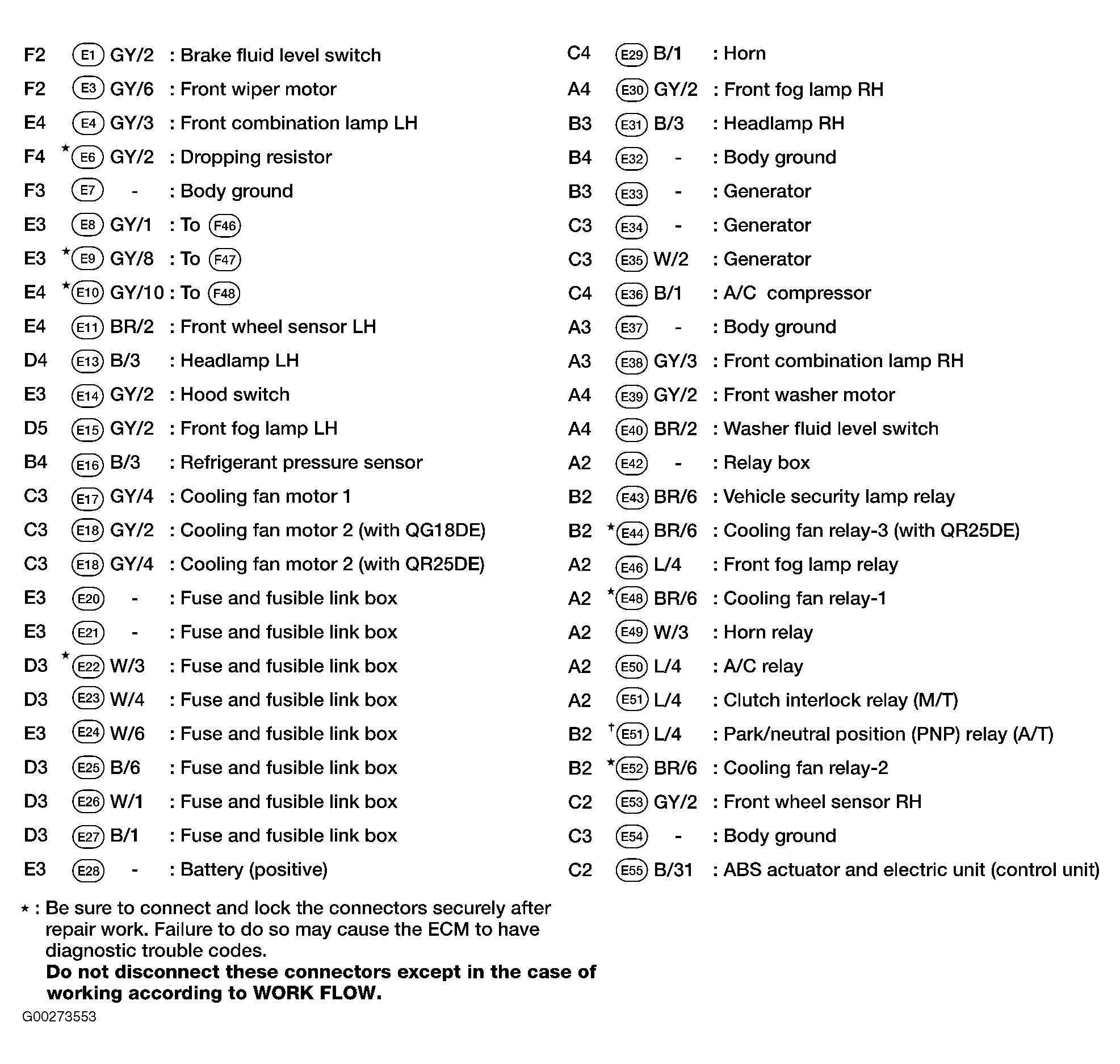

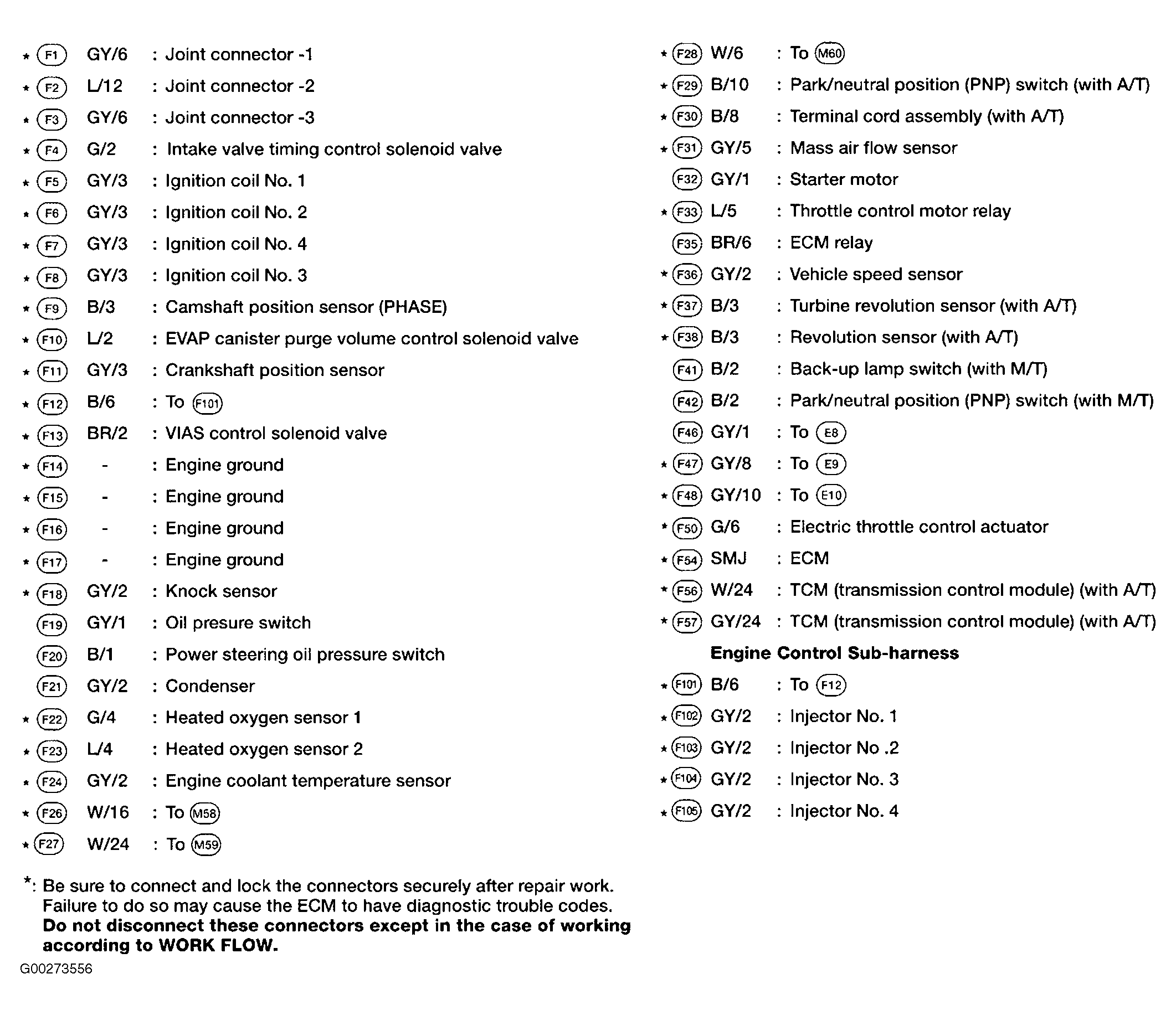

Fig 7: Legend For Engine Compartment Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Locating Passenger Compartment Engine Control Related Component Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

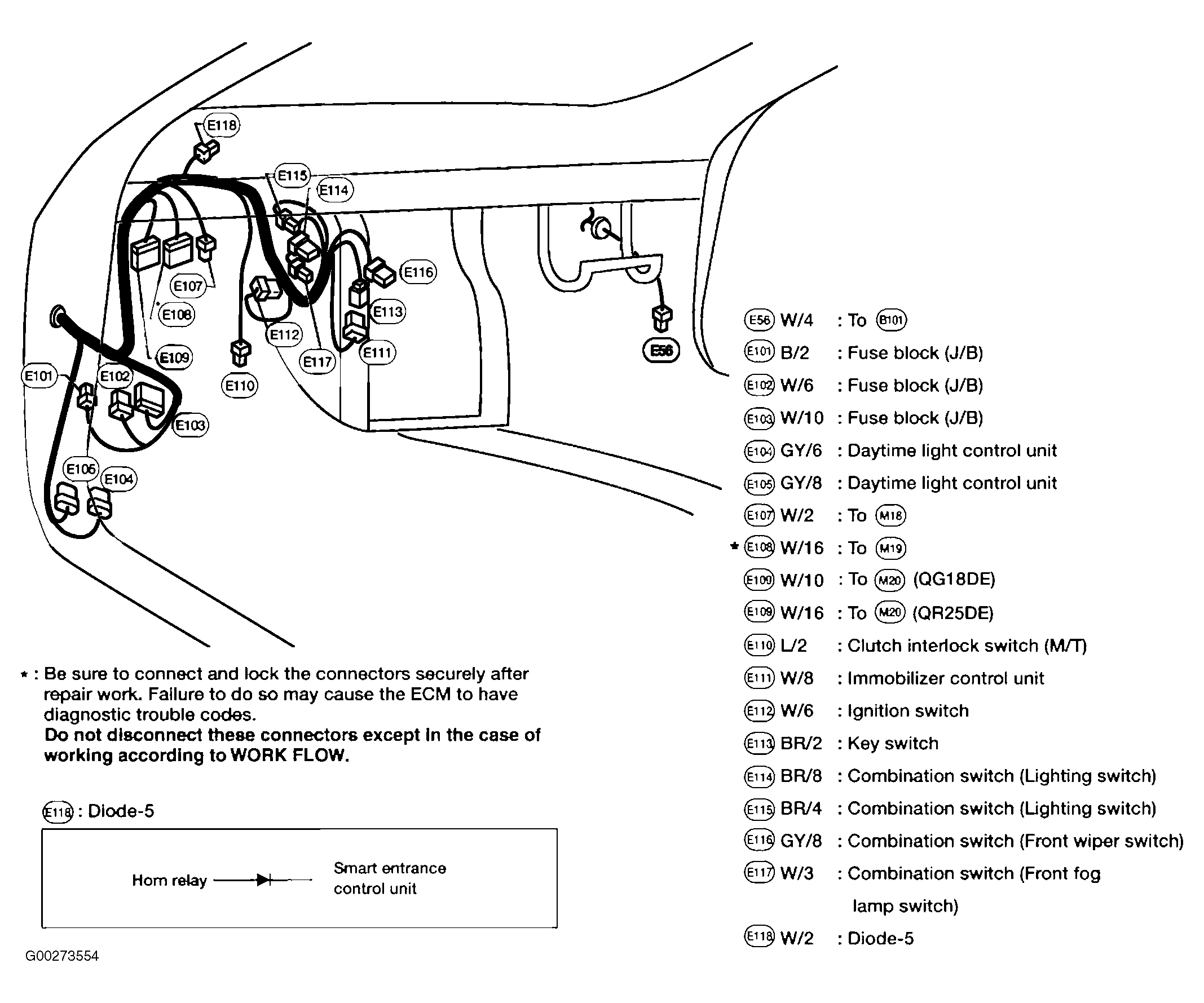

Fig 9: Locating Engine Control Component Related Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Legend For Engine Control Component Related Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

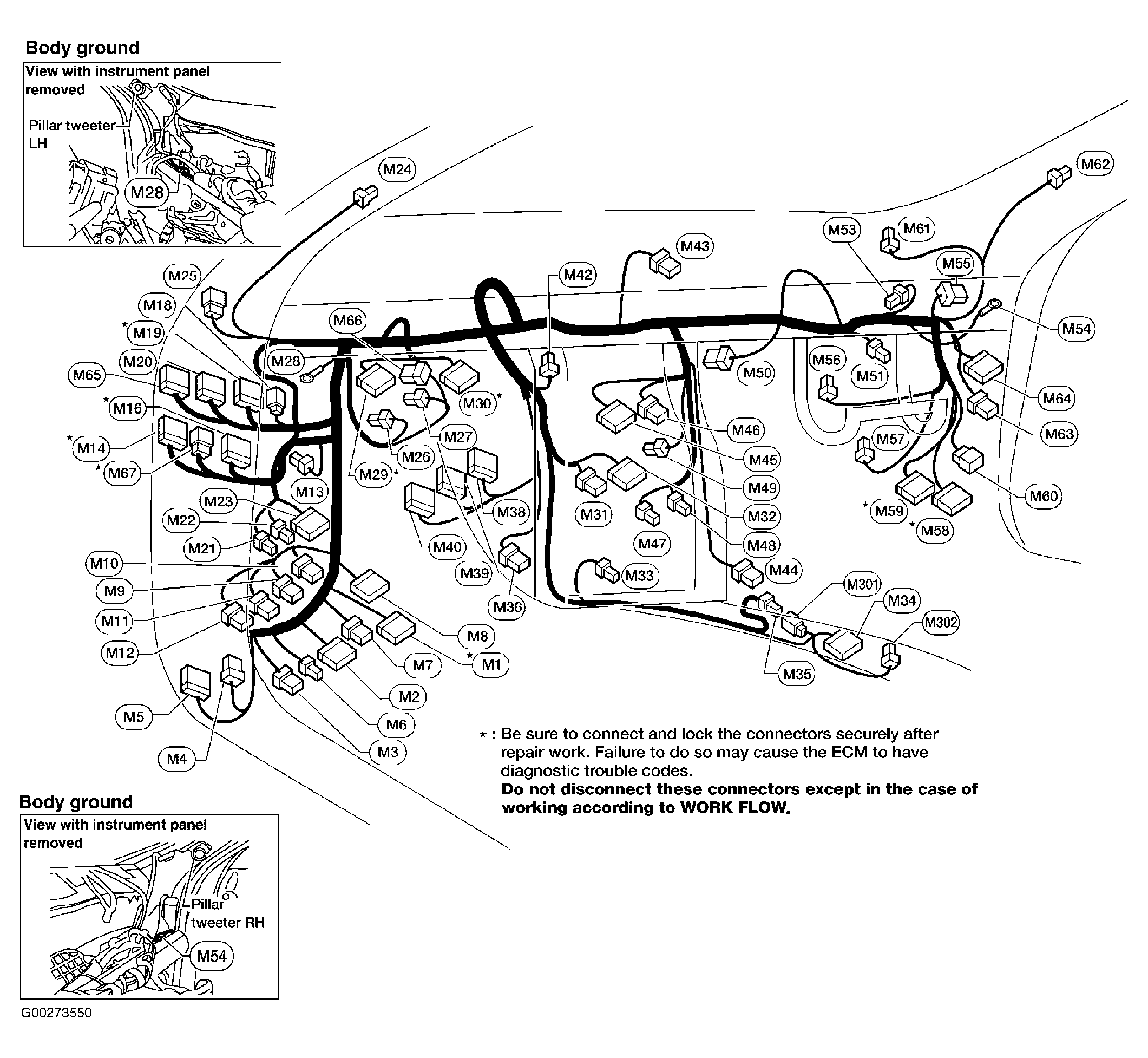

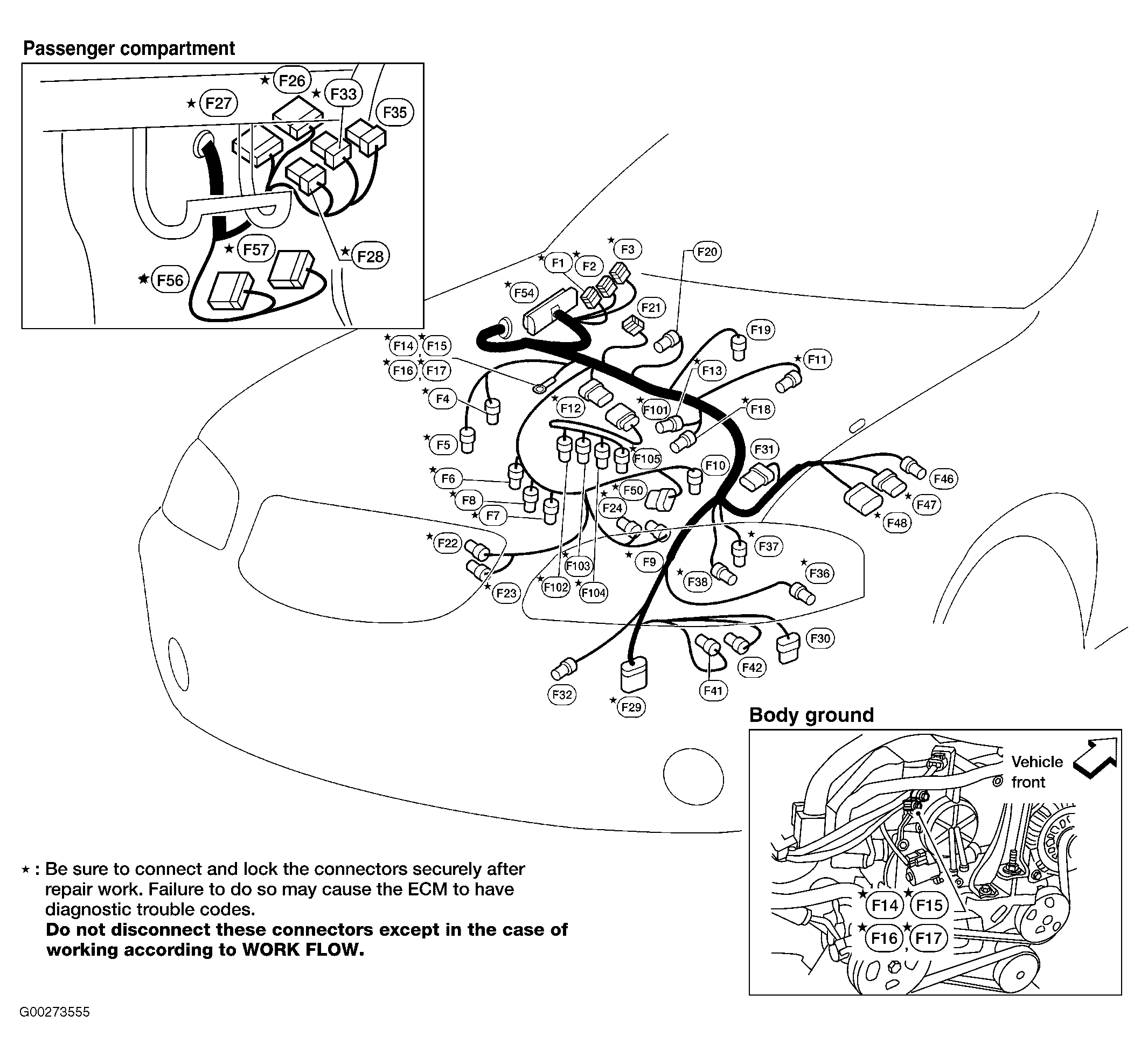

Fig 11: Locating Main Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

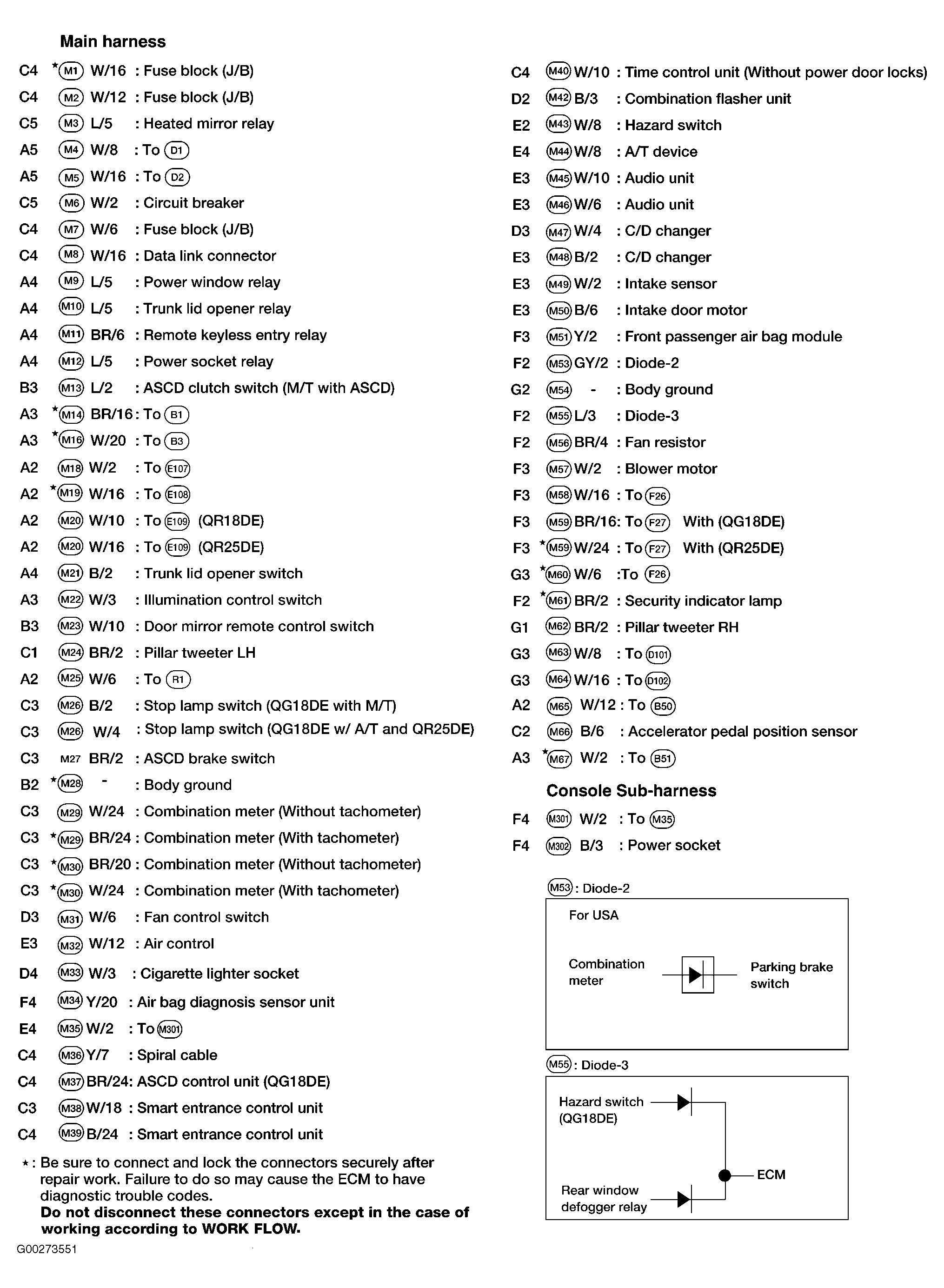

Fig 12: Legend For Main Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
