DTC Confirmation Procedure

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

For DTC confirmation procedure, see Fig 1 .

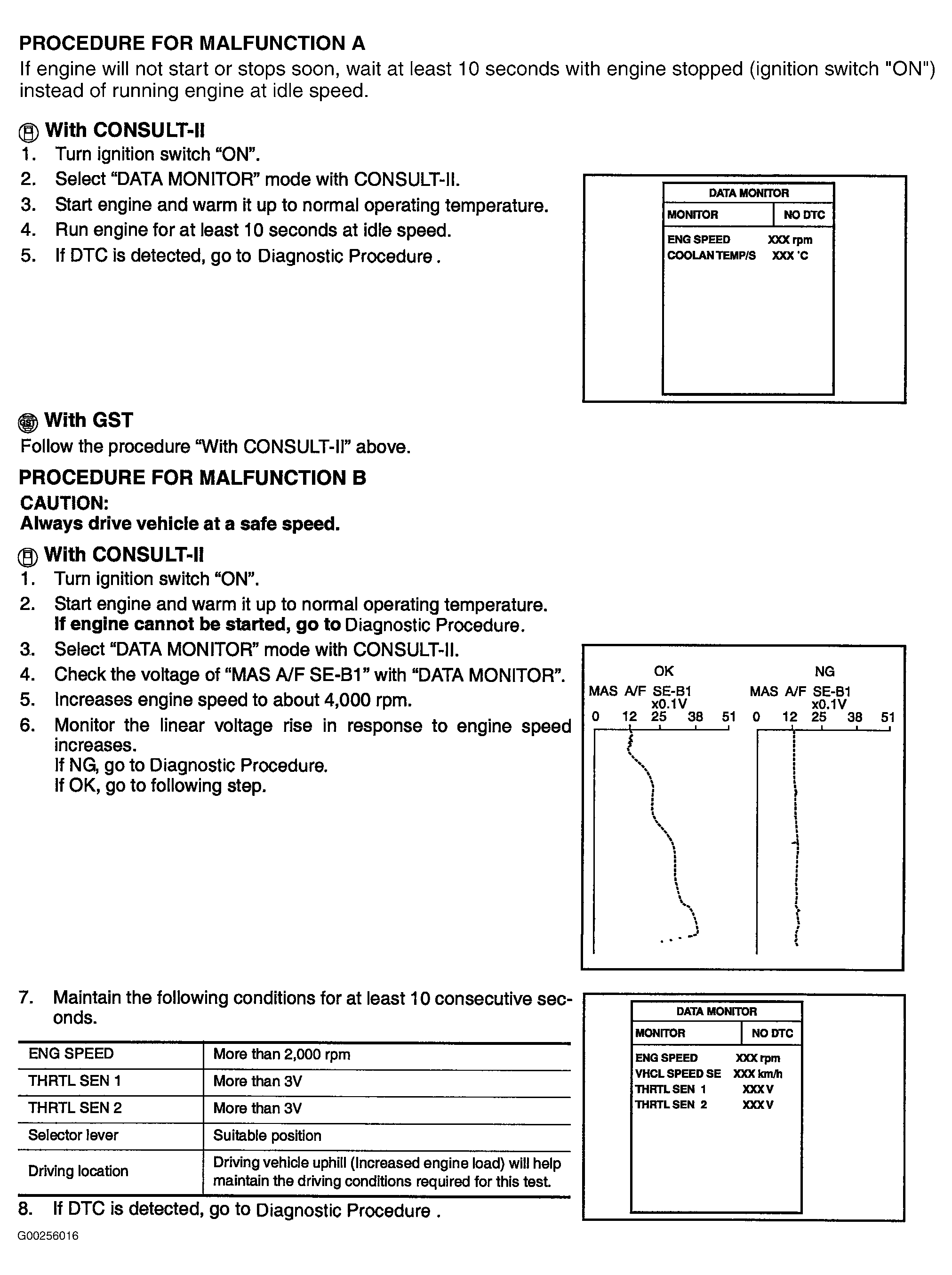

Fig 1: DTC P0101 Confirmation Procedure
G00256016Courtesy of NISSAN MOTOR CO., U.S.A.
