Component Inspection
For component inspection, see
Fig 1
.

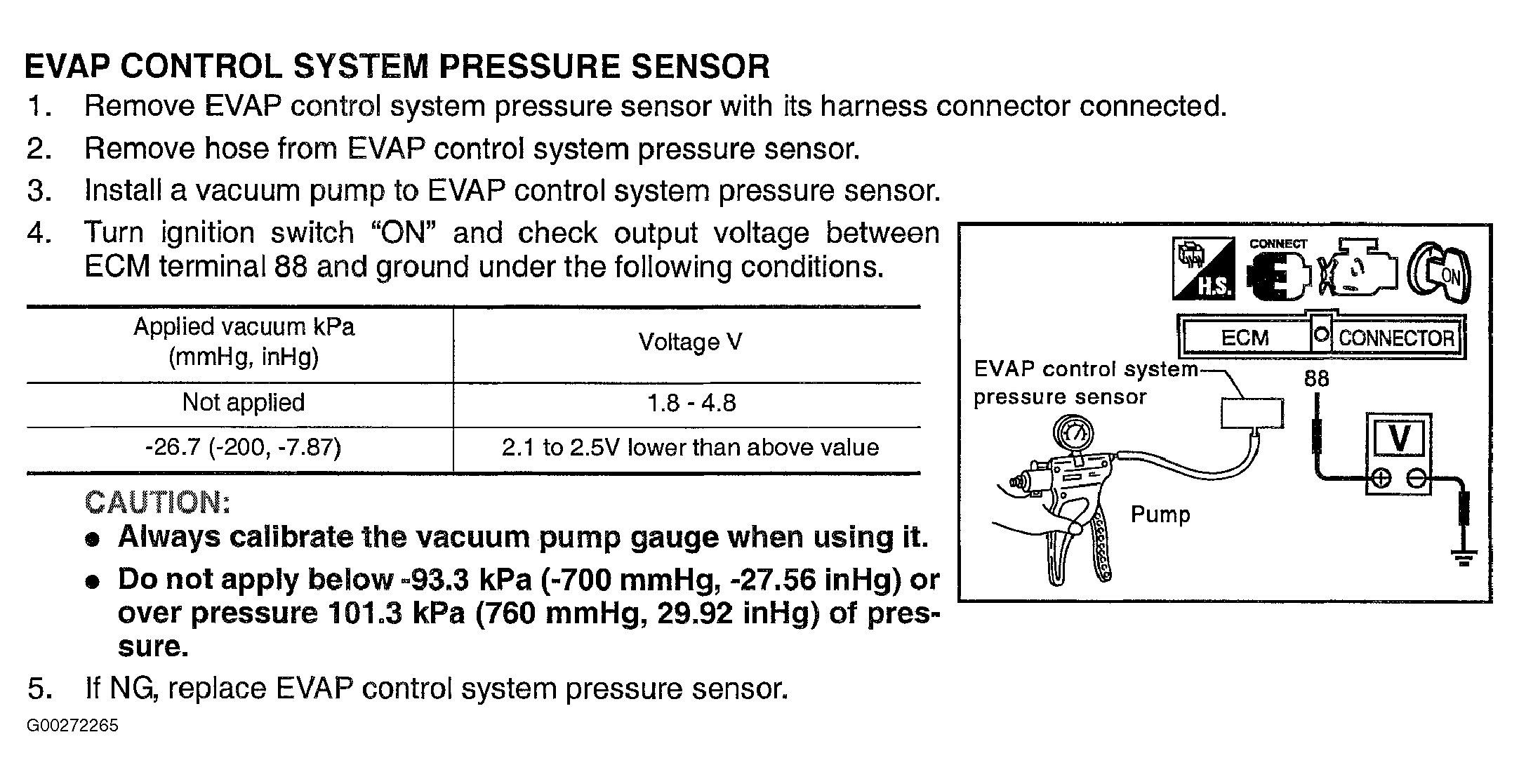

Fig 1: DTC P0452 Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
