Component Inspection
For component inspection, see
Fig 1
or
Fig 2
.

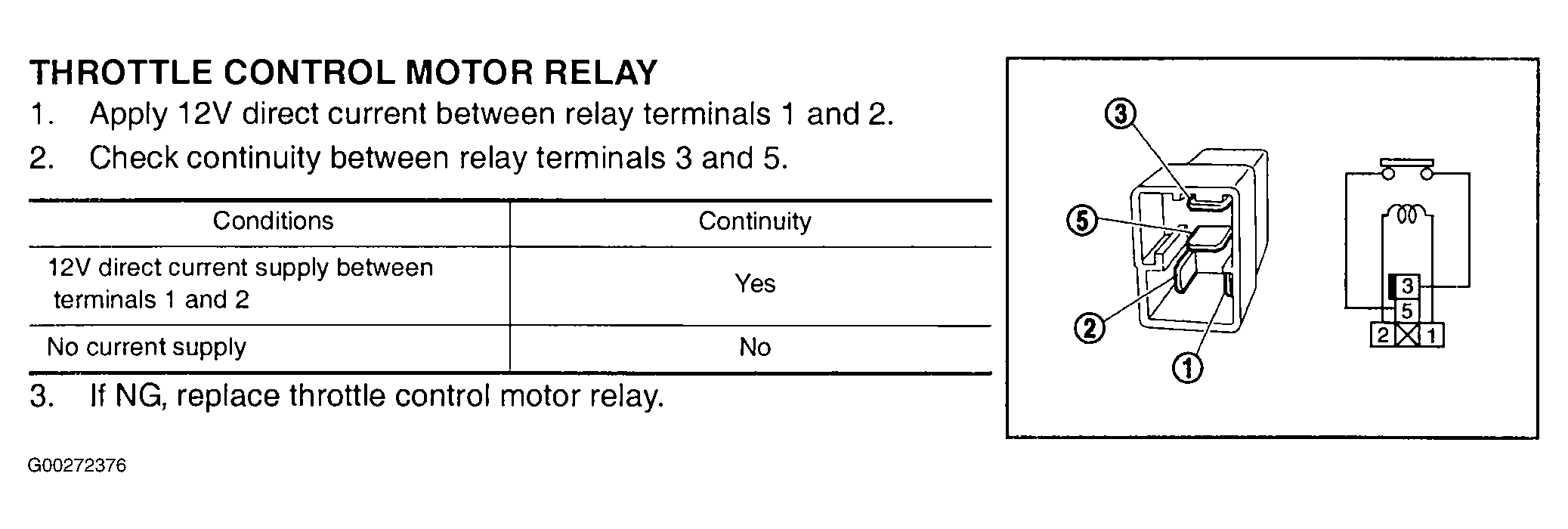

Fig 1: DTC P1122 Component Inspection (Throttle Control Motor Relay)
Courtesy of NISSAN MOTOR CO., U.S.A.

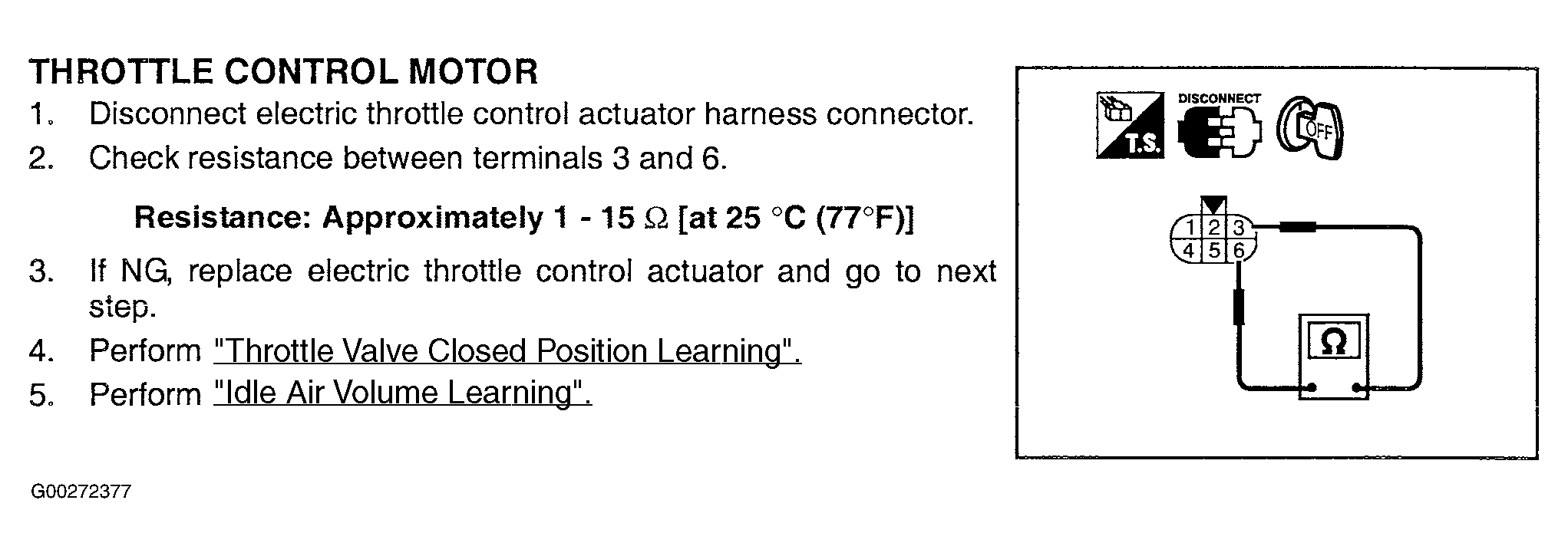

Fig 2: DTC P1122 Component Inspection (Throttle Control Motor)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
