Water Separator
NOTE:
DO NOT attempt to disassemble water separator.
- Visually inspect water separator air inlet for insect nests.
- Visually inspect water separator for cracks or flaws in appearance.
- Visually inspect water separator for cracks or flaws in hoses.

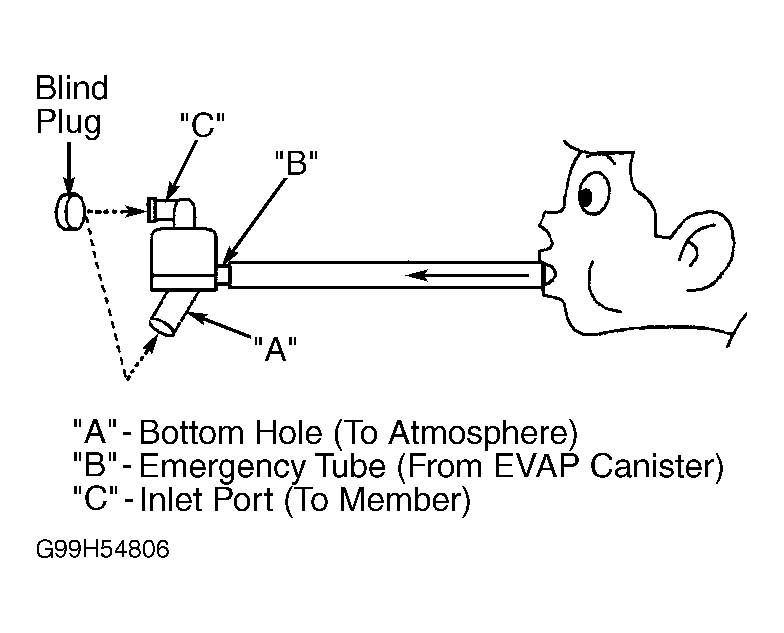

- Check that "A" and "C" are not clogged by blowing air into "B" with "A" and "C" plugged. See Fig 1. If problem is found, replace water separator.
