Refrigerant Pressure Sensor: Maxima

For refrigerant pressure sensor system and component testing, see Fig 1-Fig 4 . For engine control system component locations, see Figure-Figure . For ECM location, connector and terminal view, see Figure. If problem is intermittent, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

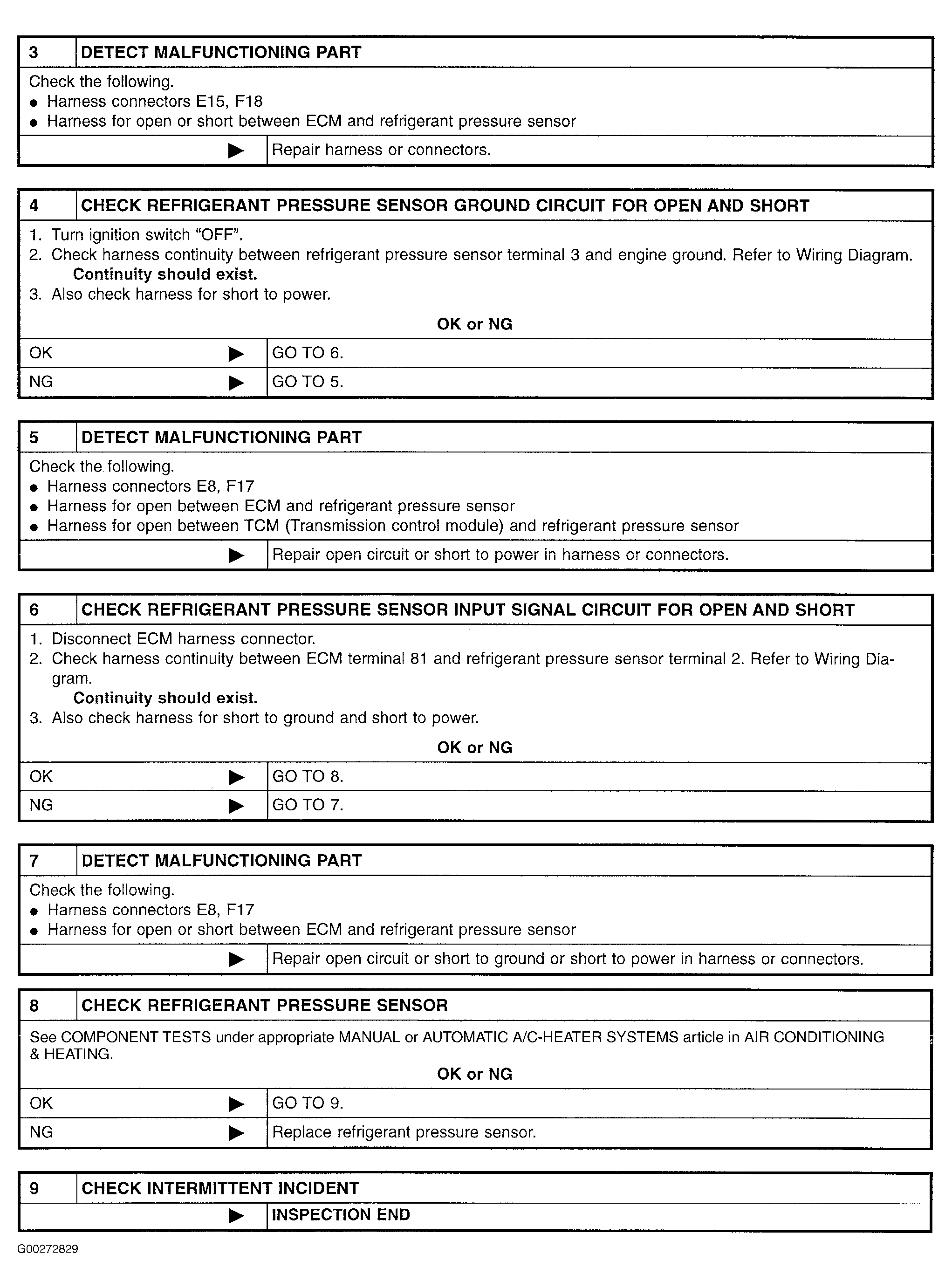

Fig 1: Refrigerant Pressure Sensor System & Component Test Procedure (Maxima - 1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

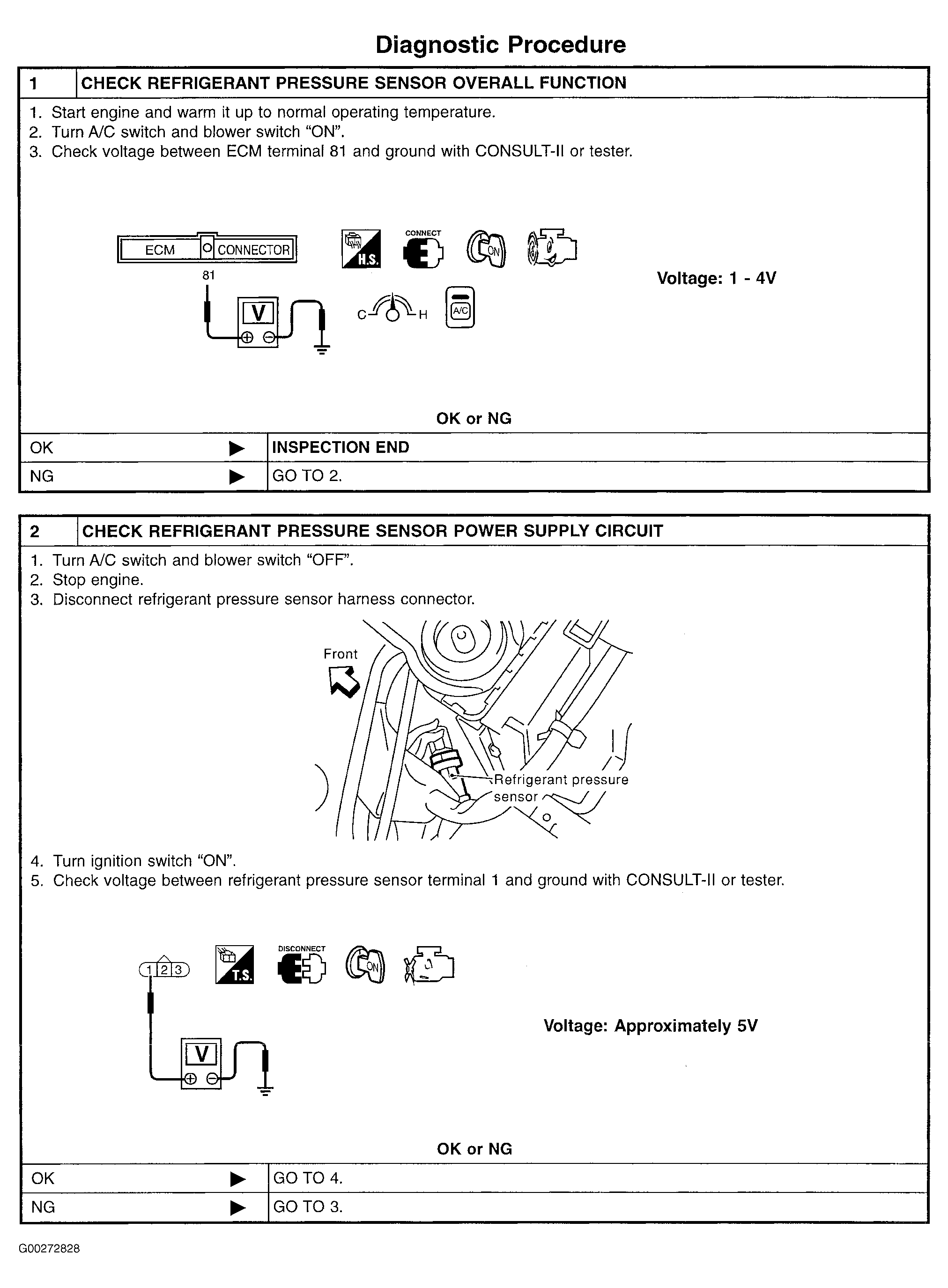

Fig 2: Refrigerant Pressure Sensor System & Component Test Procedure (Maxima - 2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

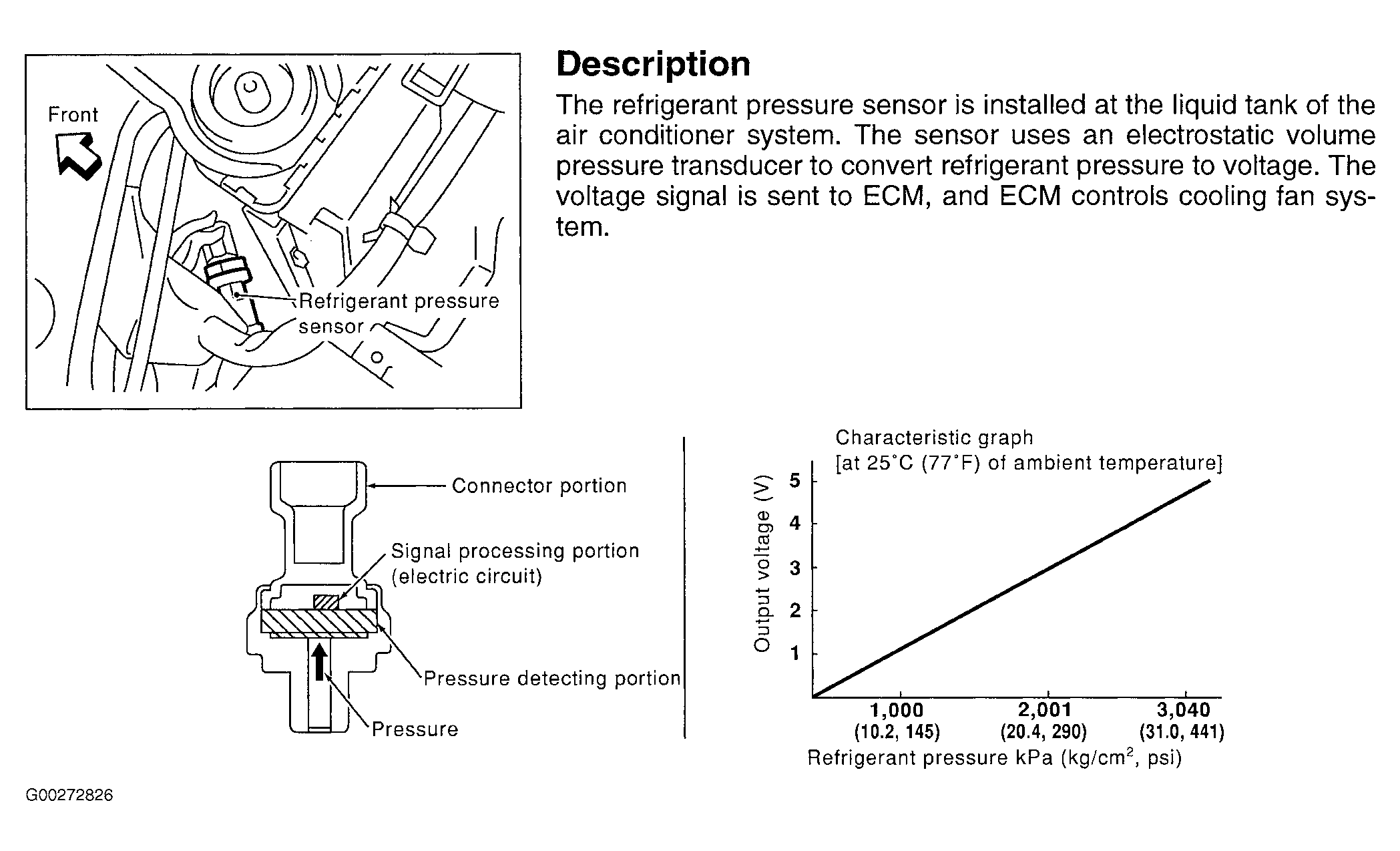

Fig 3: Refrigerant Pressure Sensor System & Component Test Procedure (Maxima - 3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

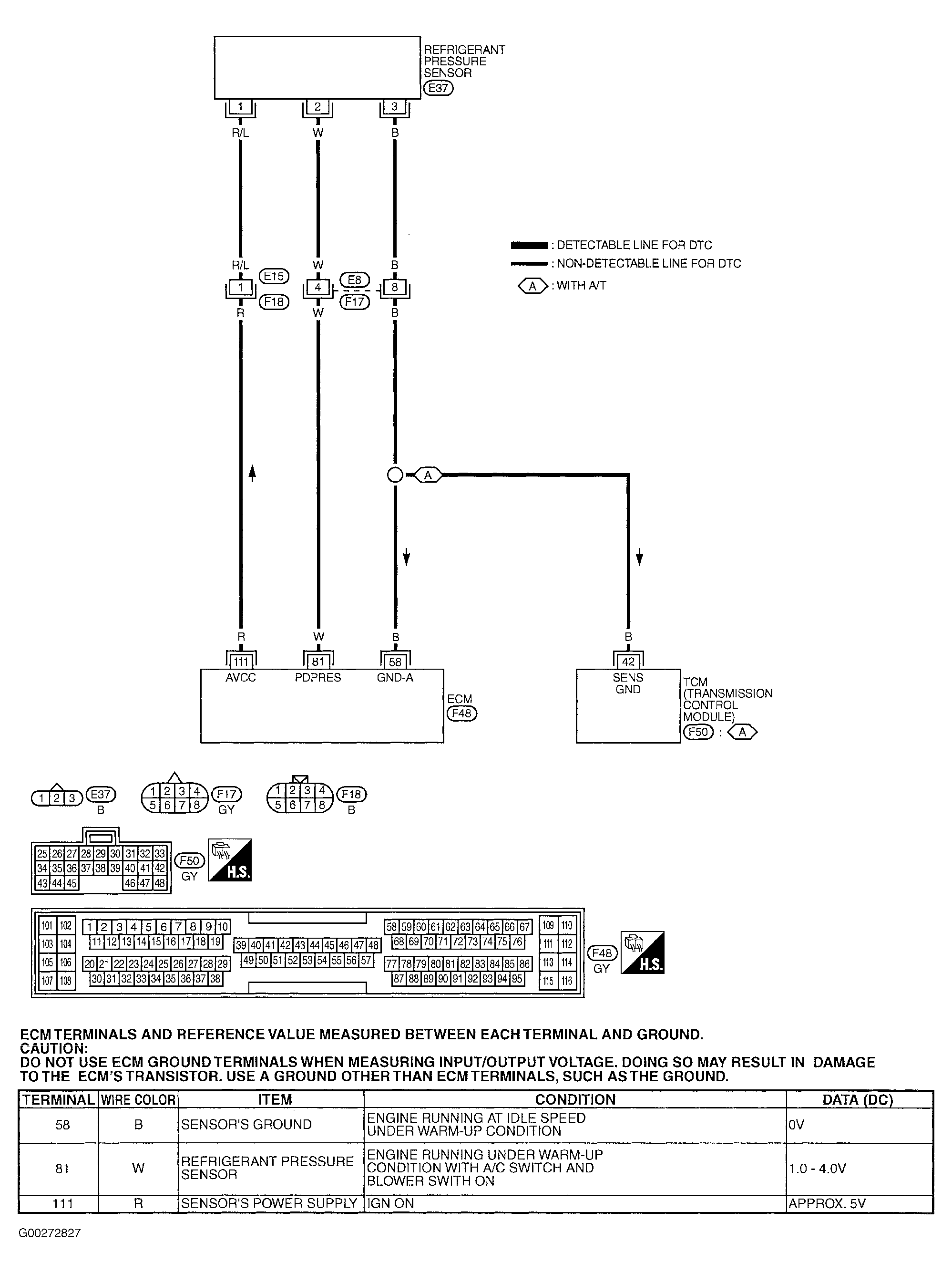

Fig 4: Refrigerant Pressure Sensor System & Component Test Procedure (Maxima - 4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
