Fuel Pump Control System (Frontier & Xterra 3.3L)

For fuel pump control system diagnosis and testing procedure, see Fig 2-Fig 4 . For fuel pump control circuit wiring diagram, see Fig 1. To check fuel pump, see FUEL PUMP . For relay location, see ECM & FUEL PUMP RELAY LOCATIONS  table. If no problem is indicated at this time, problem may be intermittent. See INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. For component removal and installation procedures, see appropriate REMOVAL & INSTALLATION article.

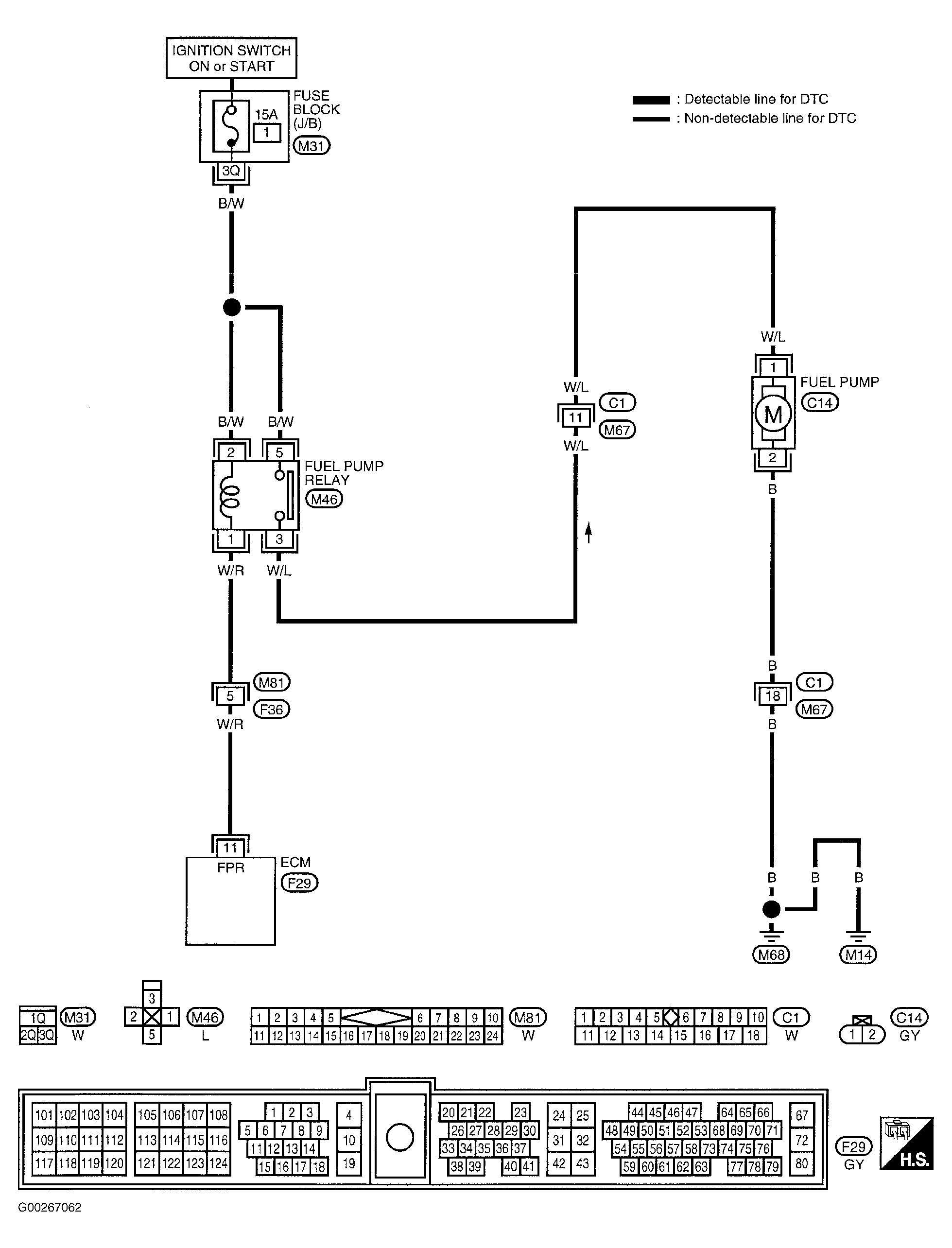

Fig 1: Fuel Pump Control Circuit Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

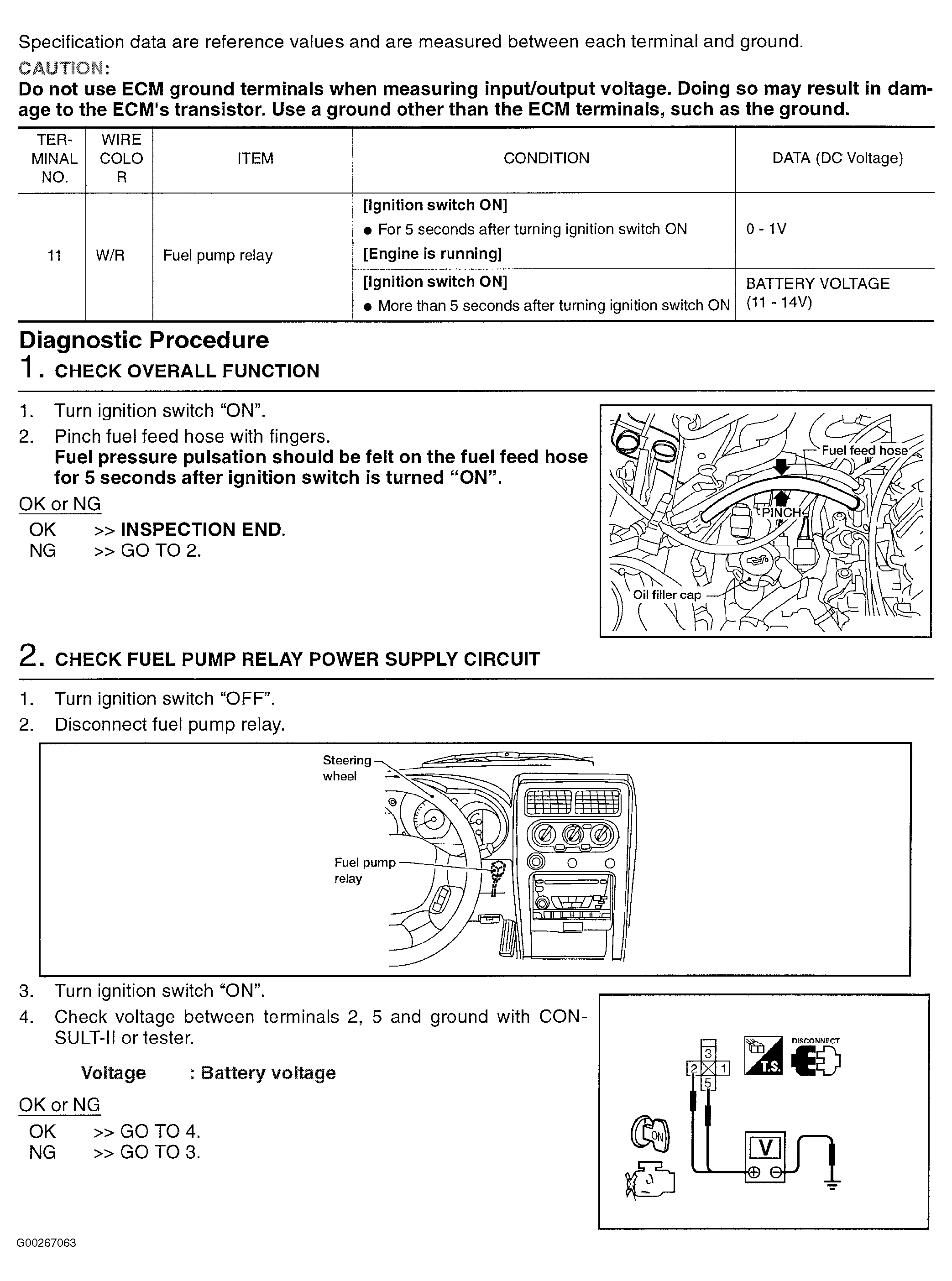

Fig 2: Fuel Pump Control System & Component Testing Procedure (Frontier & Xterra 3.3L - 1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

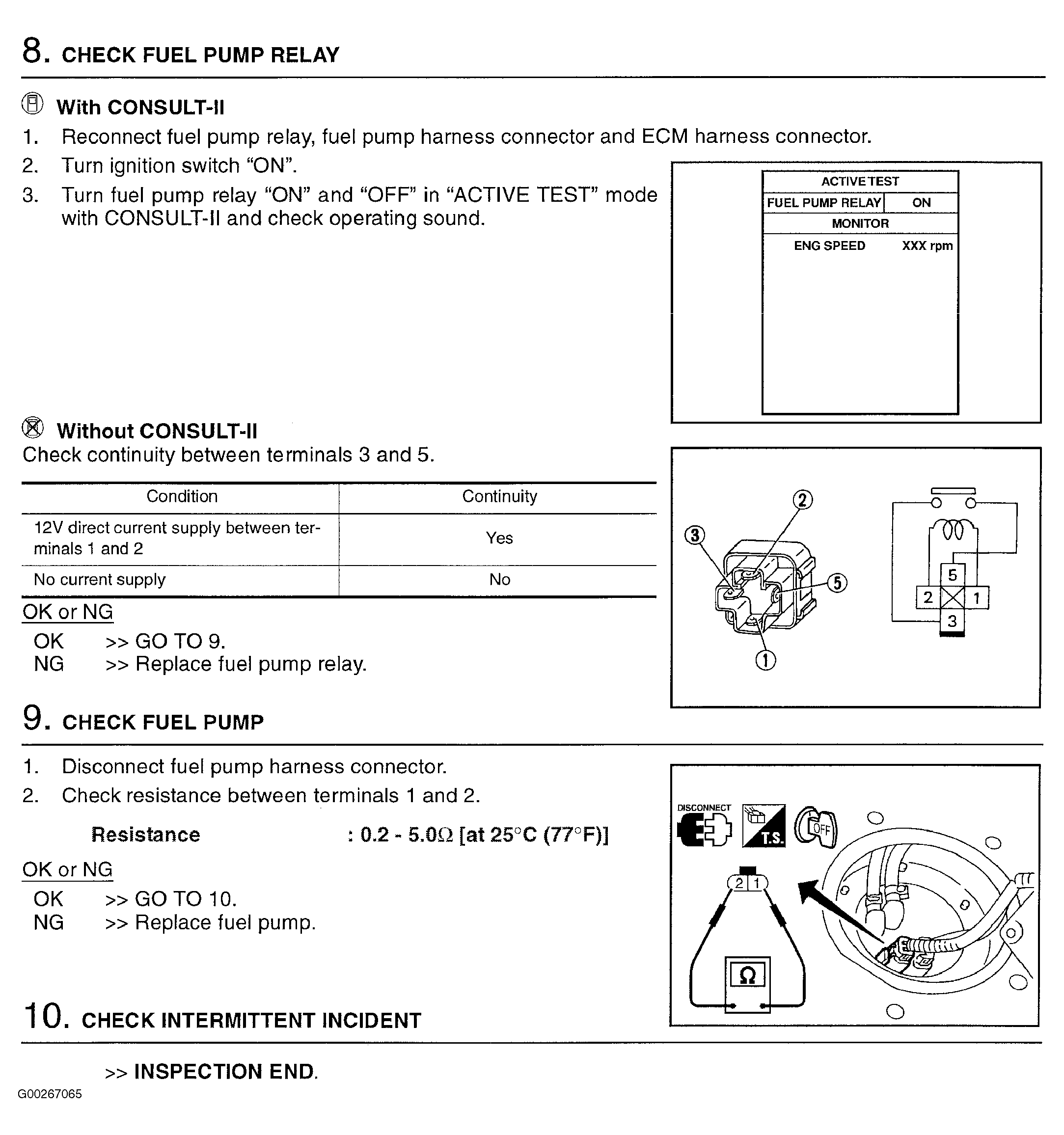

Fig 3: Fuel Pump Control System & Component Testing Procedure (Frontier & Xterra 3.3L - 2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

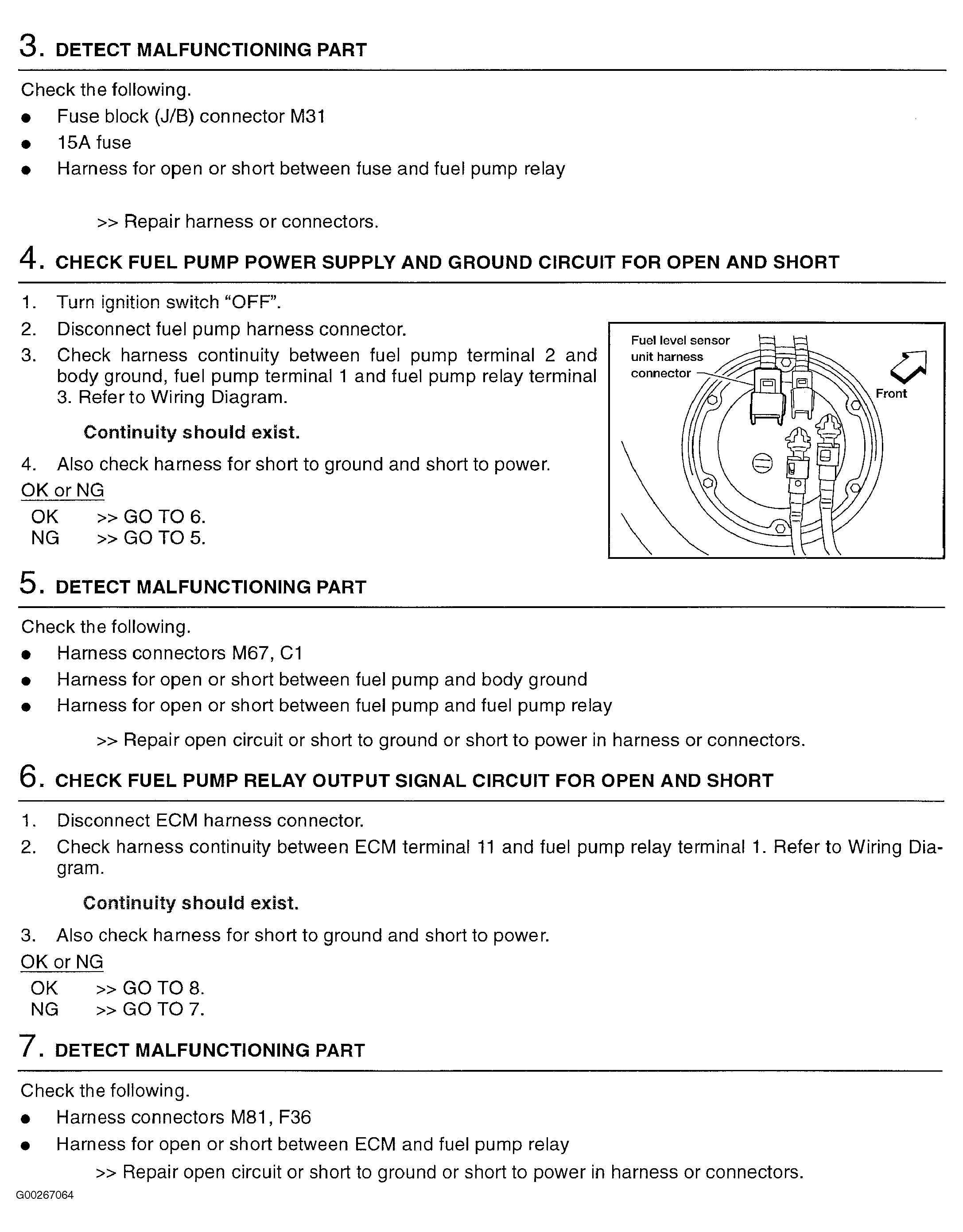

Fig 4: Fuel Pump Control System & Component Testing Procedure (Frontier & Xterra 3.3L - 3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
