Trouble Diagnoses With Battery/Starting/Charging System Tester: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To ensure a complete and thorough diagnosis, the battery, starter and generator test segments must be done as a set from start to finish.

Turn off all loads on the vehicle electrical system.
Perform battery and starting system test with Battery/Starting/Charging system tester.

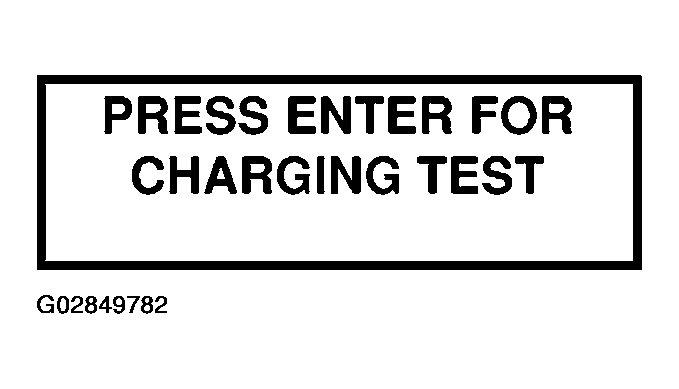

Press "ENTER" to begin the charging system test.
Start engine.

Fig 1: Displaying "ENTER" To Begin Charging System Test
Courtesy of NISSAN MOTOR CO., U.S.A.

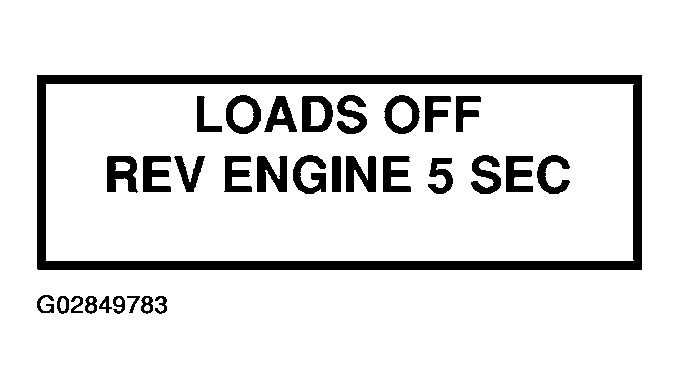

Press "ENTER" until "LOADS OFF REV ENGINE 5 SEC" is displayed.
Raise and hold the engine speed at 1,500 to 2,000 RPM for about 5 seconds, then return the engine to idle.
Once the increase in engine RPM is detected, press "ENTER" to continue.
NOTE:
- If after 30 seconds an increase in engine idle speed is not detected, "RPM NOT DETECTED" will display.
- Some engines may have a higher idle initially after starting, particularly when the engine is cold. The tester may detect this without any other action being taken. If this occurs, continue on with the testing process. The final results will not be affected.

  Fig 2: Displaying "LOADS OFF REV ENGINE 5 SEC"
  Courtesy of NISSAN MOTOR CO., U.S.A.

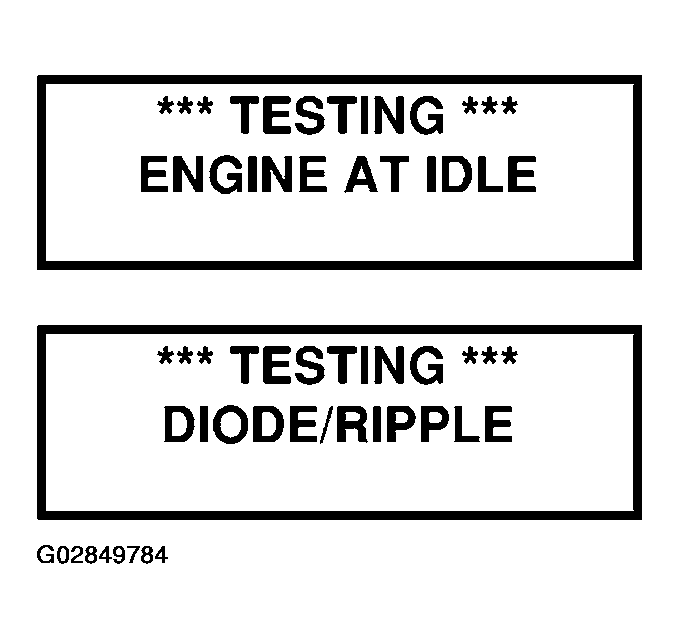

The tester now checks the engine at idle and performs the DIODE/RIPPLE check.
When complete, the tester will prompt you to turn on the following electrical loads.
- Heater fan set to highest speed. Do not run the A/C or windshield defroster.
- Headlamp high beam
- Rear window defogger

  Fig 3: Displaying Engine At Idle
  Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not run the windshield wipers or any other cyclical loads.

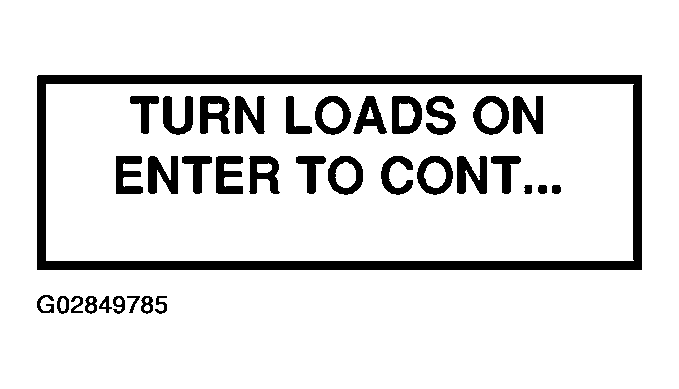

Press "ENTER" to continue.

Fig 4: Displaying "ENTER"
Courtesy of NISSAN MOTOR CO., U.S.A.

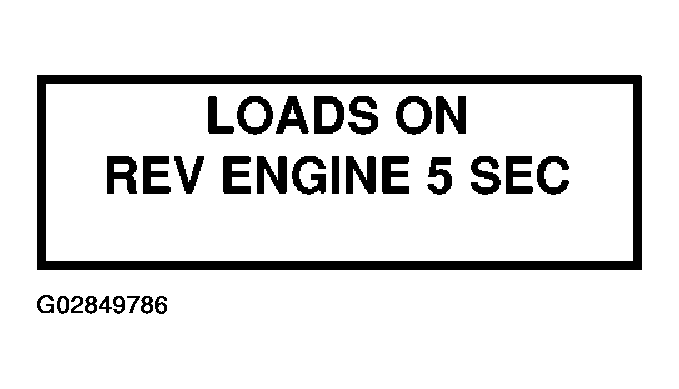

Raise and hold the engine speed at 1,500 to 2,000 RPM for about 5 seconds, then return the engine to idle. Once the increase in engine RPM is detected, press "ENTER" to continue.
NOTE: If after 30 seconds an increase in engine idle speed is not detected, "RPM NOT DETECTED" will be displayed. Press "ENTER" to restart the test.

Fig 5: Displaying "LOADS OFF REV ENGINE 5 SEC"
Courtesy of NISSAN MOTOR CO., U.S.A.

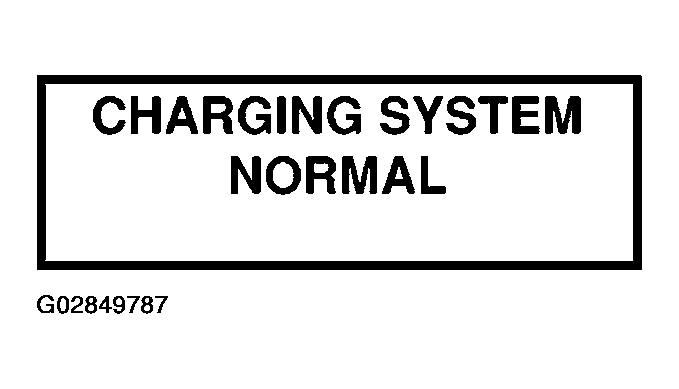

Diagnostic result is displayed on the tester. Refer to DIAGNOSTIC RESULT ITEM CHART .

Fig 6: Displaying "DIAGNOSTIC RESULT ITEM CHART"
Courtesy of NISSAN MOTOR CO., U.S.A.

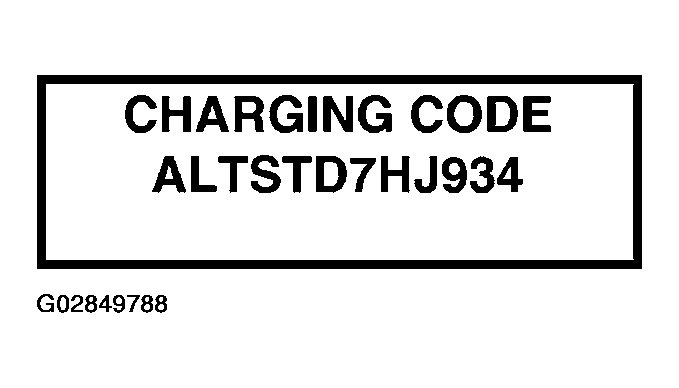

Press "ENTER" then test output code is displayed. Record the test output code on the repair order.
Toggle back to the "DIAGNOSTIC SCREEN" for test results.

Fig 7: Displaying "DIAGNOSTIC SCREEN" For Test Results
Courtesy of NISSAN MOTOR CO., U.S.A.
