Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

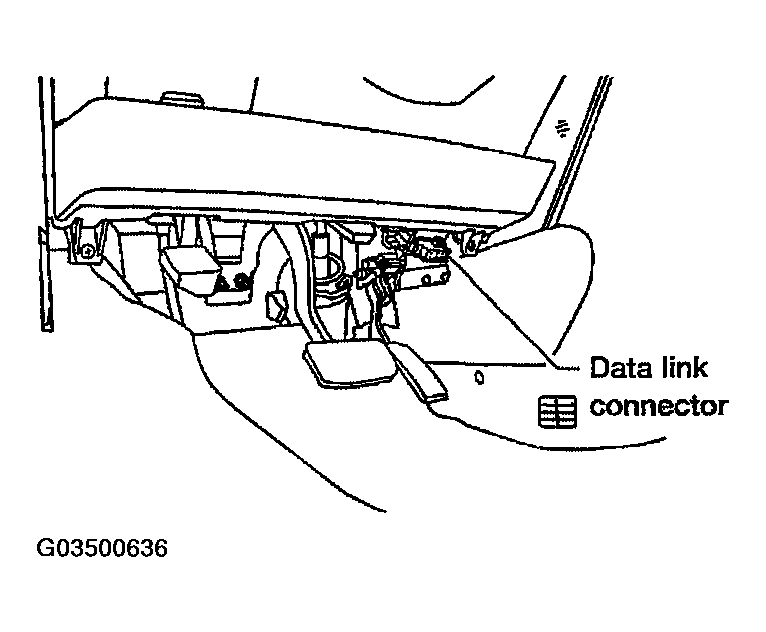

    Fig 1: Connecting CONSULT-II & CONSULT-II Converter To Data Link Connector
    G03500636Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

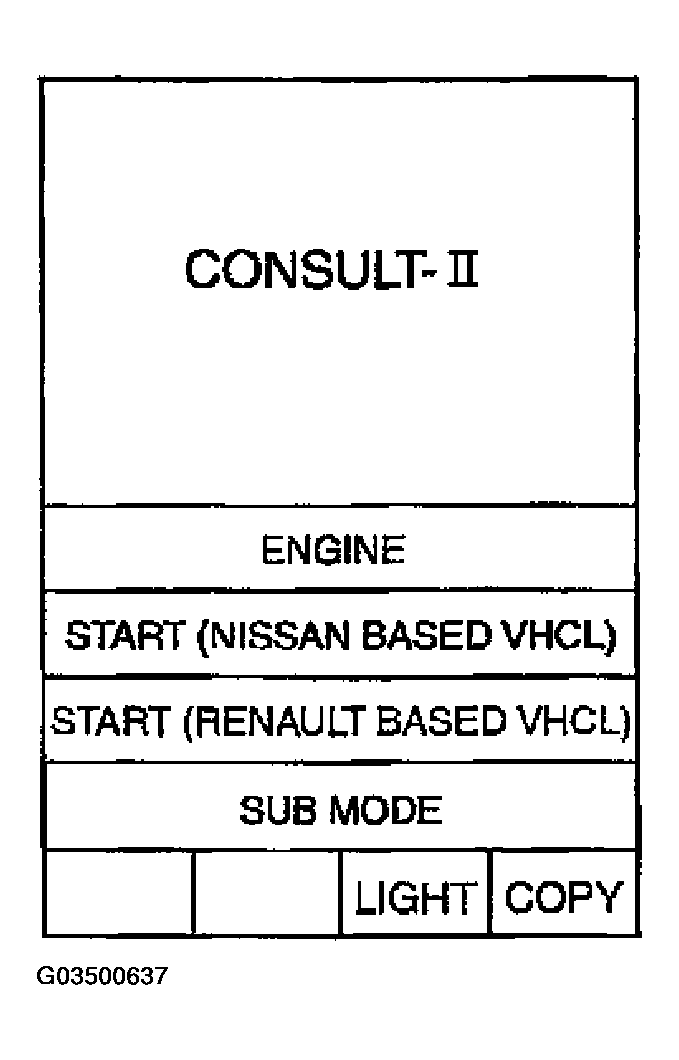

    Fig 2: CONSULT-II Function Display Start
    G03500637Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to , "CONSULT-II Data Link Connector (DLC) Circuit ".

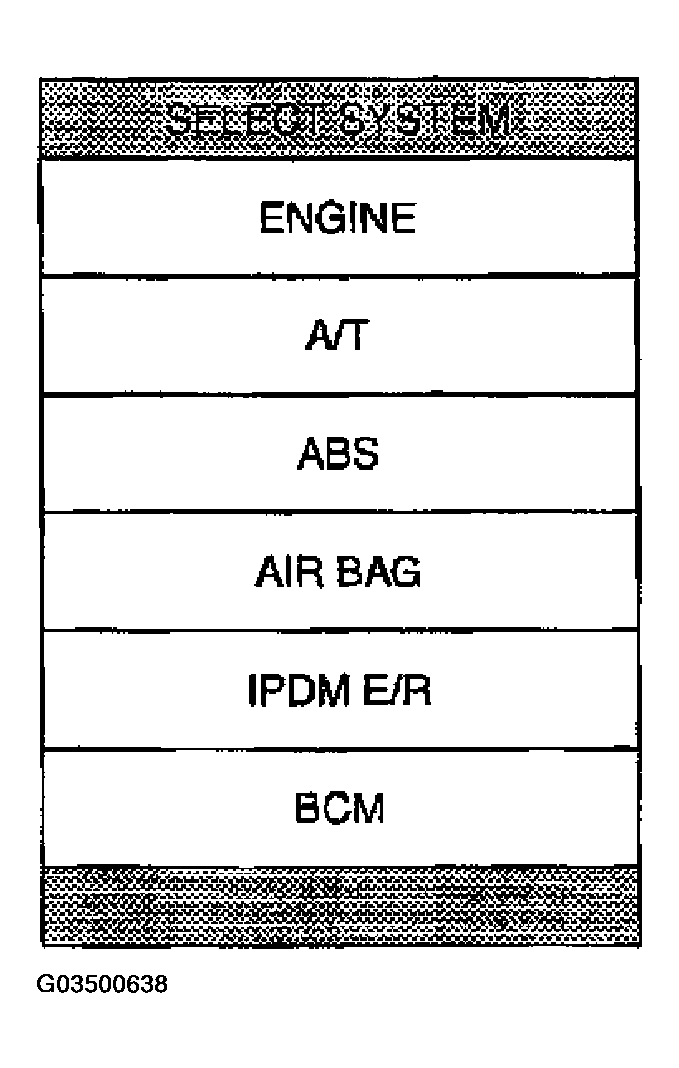

    Fig 3: CONSULT-II Function Display Select System
    G03500638Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "INT LAMP" on "SELECT SYSTEM" screen.

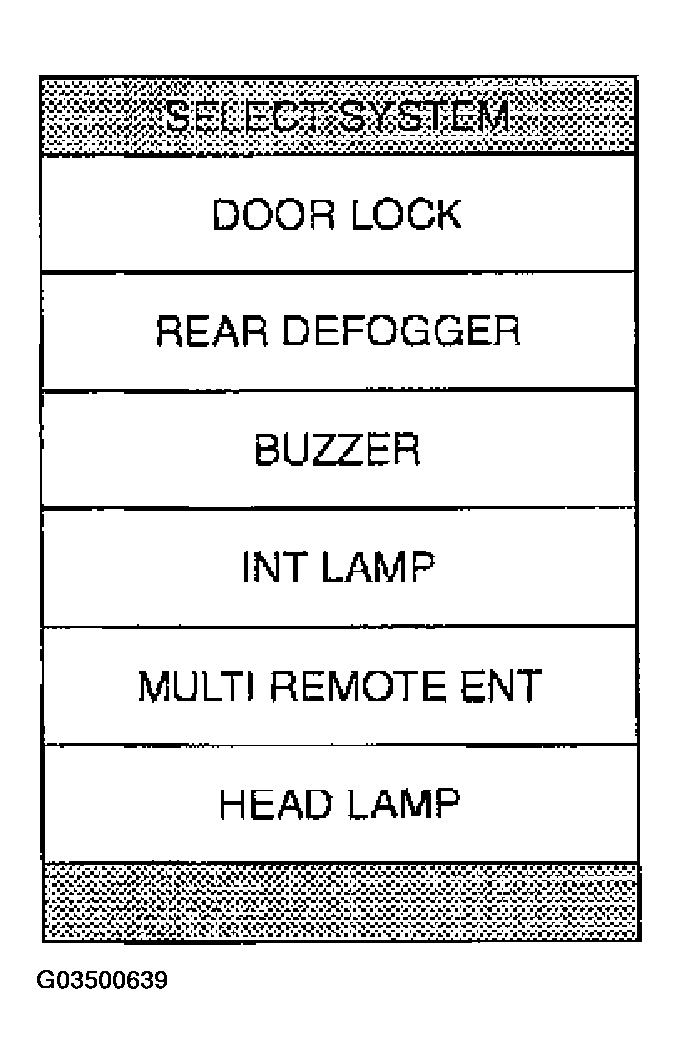

    Fig 4: CONSULT-II Function Display Select System
    G03500639Courtesy of NISSAN MOTOR CO., U.S.A.
