With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  2. Start engine and warm it up to the normal operating temperature.
  3. Maintain the following conditions for at least 6 consecutive seconds.

    Hold the accelerator pedal as steady as possible.

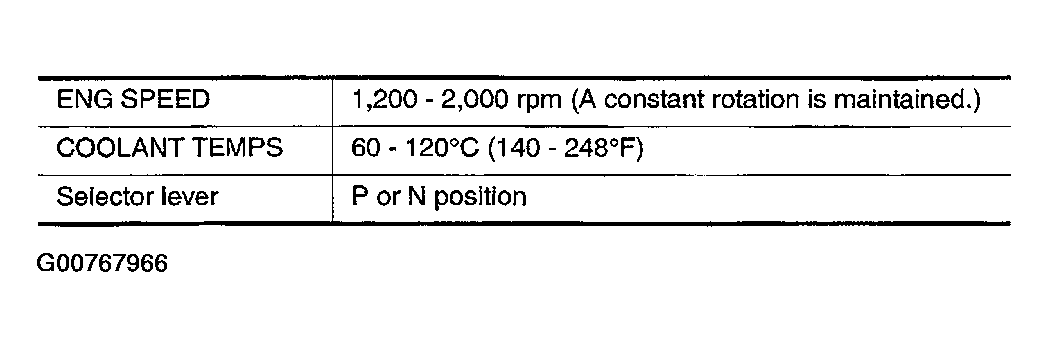

    Fig 1: DTC Confirmation Condition Specifications (P0011, P0021)
    G00767966Courtesy of NISSAN MOTOR CO., U.S.A.

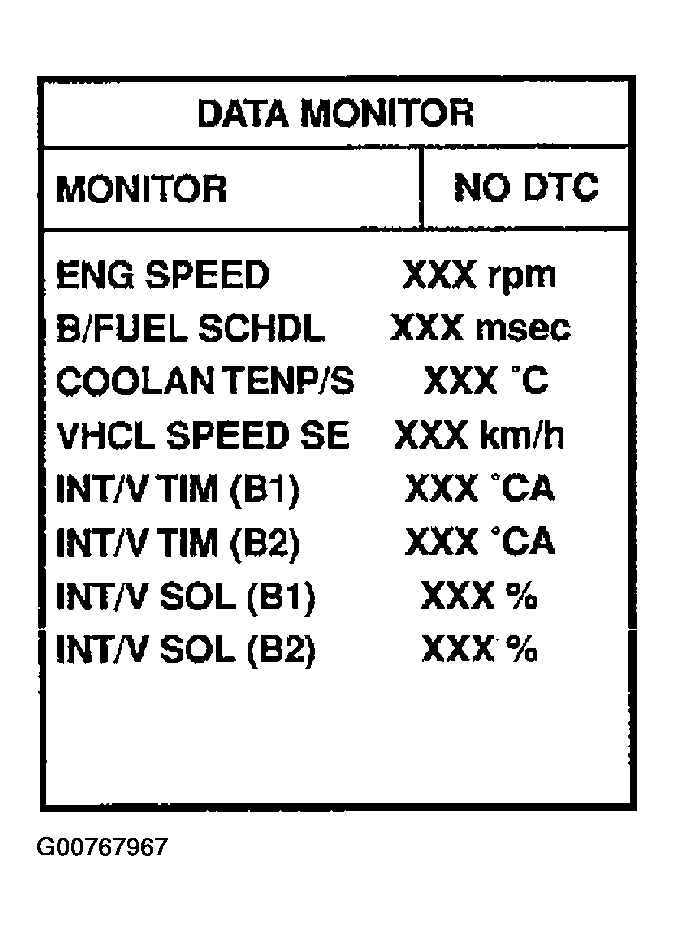

    Fig 2: DTC Confirmation Procedure With CONSULT-II (P0011, P0021)
    G00767967Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Let engine idle for 10 seconds.
  5. If the 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ". If the 1st trip DTC is not detected, go to next step.
  6. Maintain the following conditions for at least 20 consecutive seconds.

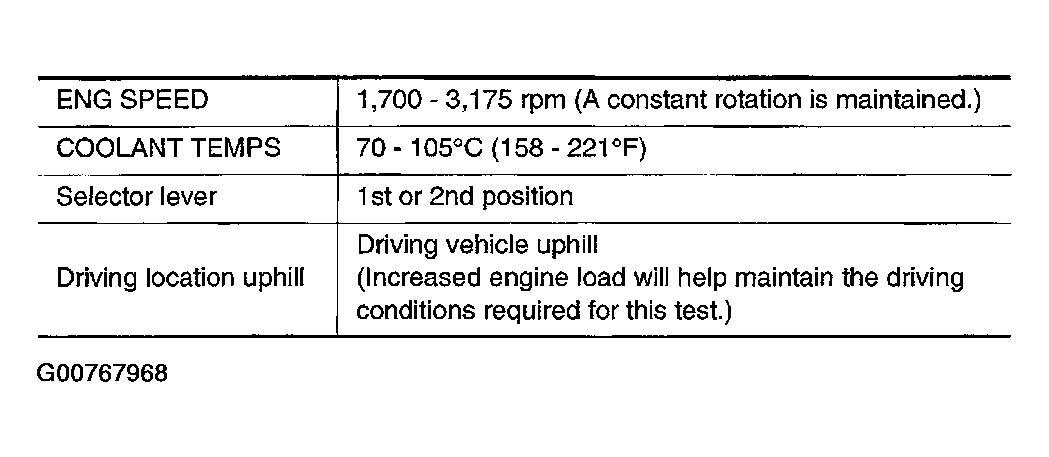

    Fig 3: DTC Confirmation Condition Specifications (P0011, P0021)
    G00767968Courtesy of NISSAN MOTOR CO., U.S.A.
  7. If the 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
