Door Switch Check

First perform the "SELF-DIAG RESULTS" in "BCM" with CONSULT-II, then perform the each trouble) diagnosis of malfunction system indicated "SELF-DIAG RESULTS" of "BCM". Refer to " CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS)  ".

1. CHECK DOOR SWITCH INPUT SIGNAL 1

   With CONSULT-II

   Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

   MONITOR ITEM AND CONDITION CHART



   Monitor item	Condition
   DOOR SW-DR	OPEN: ON
   	CLOSE: OFF
   DOOR SW-AS	OPEN: ON
   	CLOSE: OFF

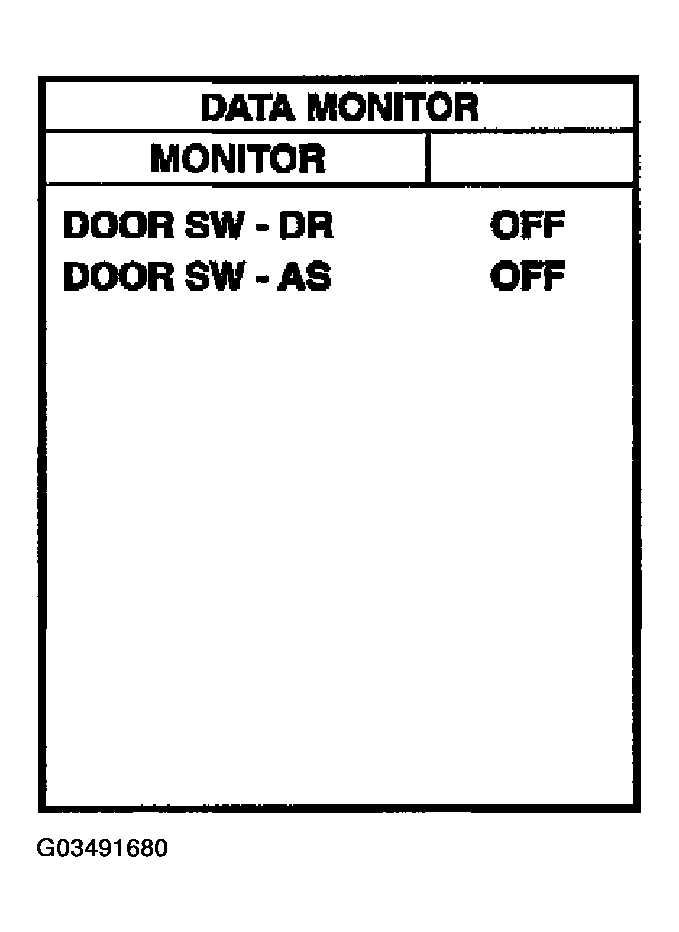

   Fig 1: Displaying Monitor Item

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   Check voltage between BCM connector and ground.

   VOLTAGE CHECK CHART



   Item	Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
   		(+)	(-)
   Passenger side	M34	12 (R/G)	Ground	OPEN	0
   				CLOSE	Battery voltage
   Driver side	M36	62 (SB)		OPEN	0
   				CLOSE	Battery voltage

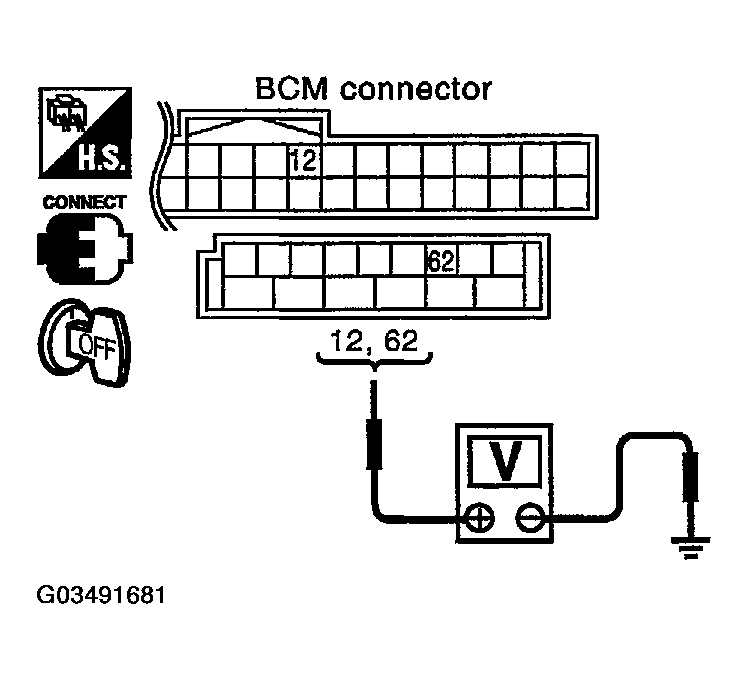

   Fig 2: Checking Voltage Between BCM Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: Door switch is OK.
   2. NG: GO TO 2.
2. CHECK HARNESS CONTINUITY
   1. Turn ignition switch OFF.
   2. Disconnect BCM and front door lock assembly (driver and passenger side) connector.

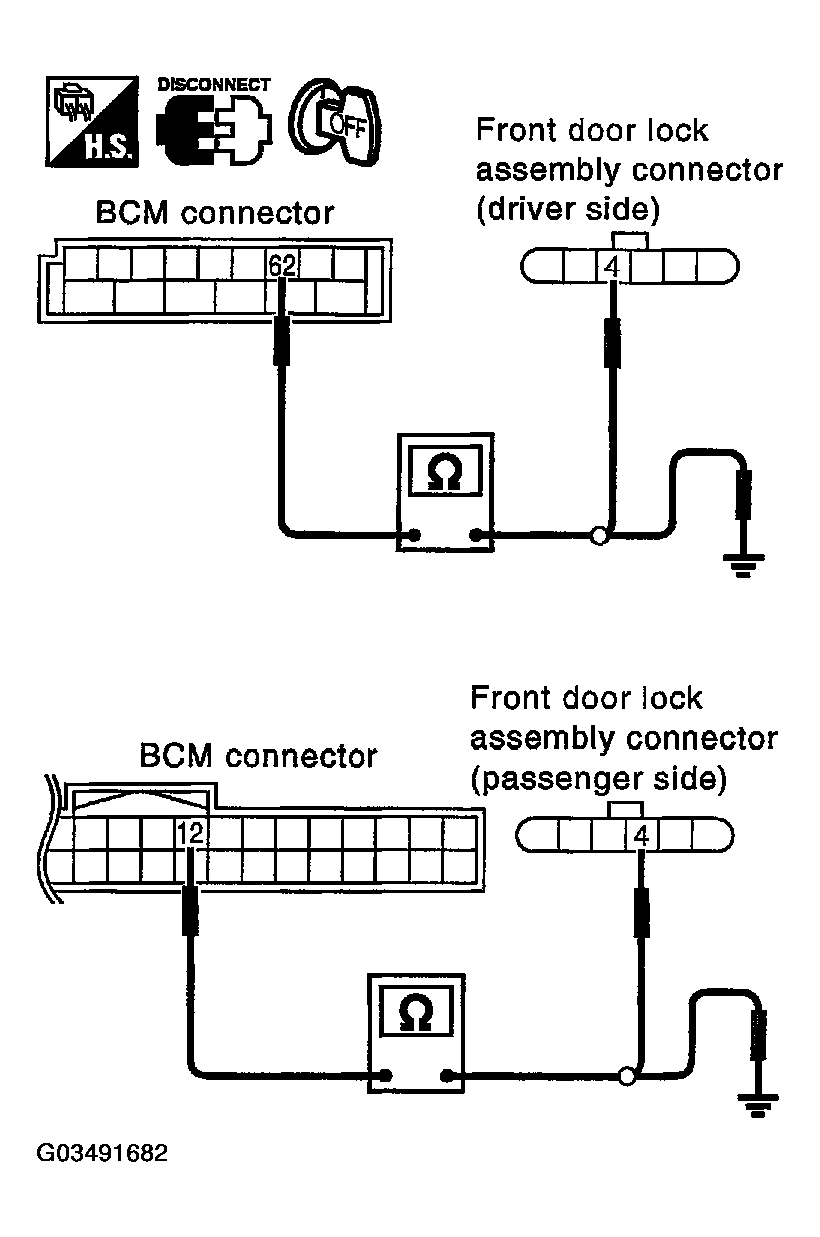

   3. Check continuity between BCM connector M34, 36 terminals 12, 62 and front door lock assembly connector D10 (driver side), D38 (passenger side) terminal 4.

      Driver side

      62 (SB) - 4 (SB) Continuity should exist.

      Passenger side

      12 (R/G) - 4 (R/G) Continuity should exist.

   4. Check continuity between BCM connector M34, 36 terminals 12, 62 and ground.

      12 (R/G) - Ground Continuity should not exist.

      62 (SB) - Ground Continuity should not exist.

      Fig 3: Checking Continuity Between BCM Connector M34, 36 Terminals 12, 62 And Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair or replace harness between BCM. and front door lock assembly.
3. CHECK DOOR SWITCH

   Check continuity between front door lock assembly terminals 4 and 5.

   CONTINUITY CHECK CHART



   Terminal		Door switch	Continuity
   4	5	OPEN	No
   		CLOSE	Yes

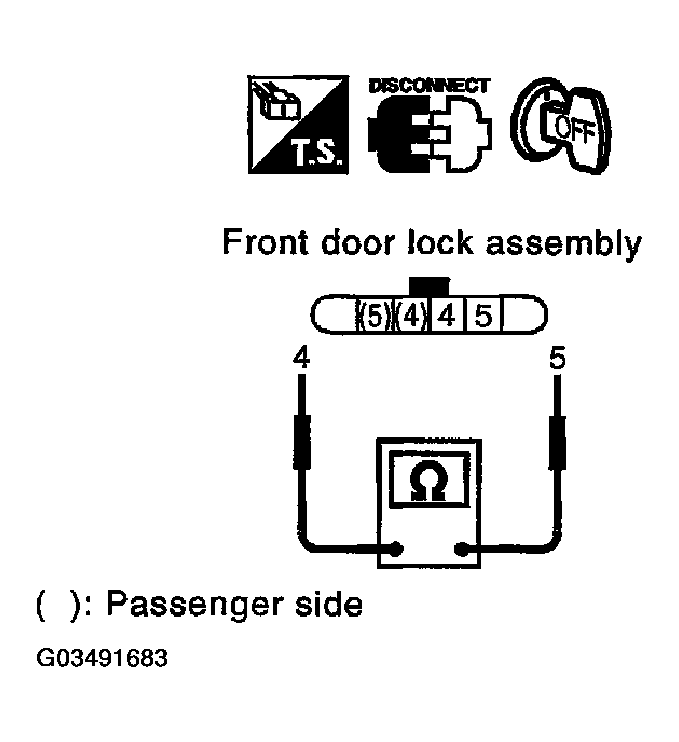

   Fig 4: Checking Continuity Between Front Door Lock Assembly Terminals 4 And 5

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 4.
   2. NG: Replace malfunction front door lock assembly.
4. CHECK DOOR SWITCH GROUND CIRCUIT

   Check continuity between front door lock assembly connector D10 (driver side), D38 (passenger side) terminal 5 and ground.

   5 (B) - Ground Continuity should exist.

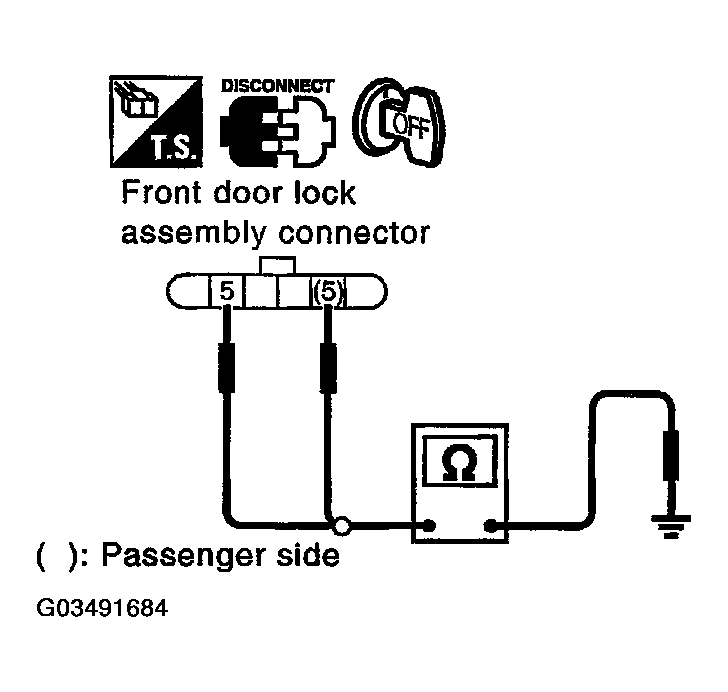

   Fig 5: Checking Continuity Between Front Door Lock Assembly Connector D10 (Driver Side), D38 (Passenger Side) Terminal 5 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair or replace harness between front door lock assembly and ground.
5. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
   1. Connect unified meter and A/C amp. connector.
   2. Check voltage between unified meter and A/C amp. connector M49 terminal 7, 8 and ground.

      7 (R) - Ground Battery voltage

      8 (SB) - Ground Battery voltage

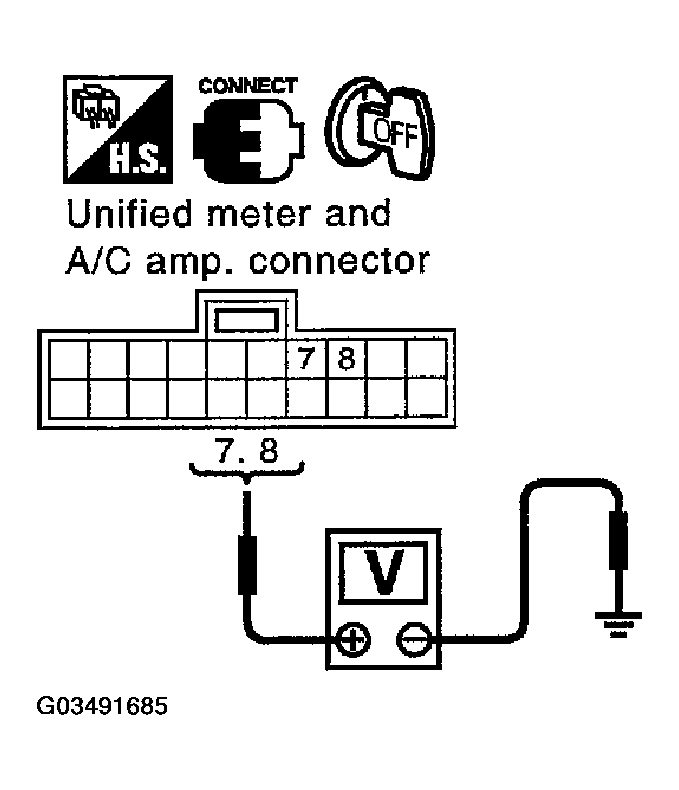

      Fig 6: Checking Voltage Between Unified Meter And A/C Amp. Connector M49 Terminal 7, 8 And Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: Check the condition of the harness and the connector.
   2. NG: Check unified meter and A/C amp.
