Drive Shaft
WARNING:
This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

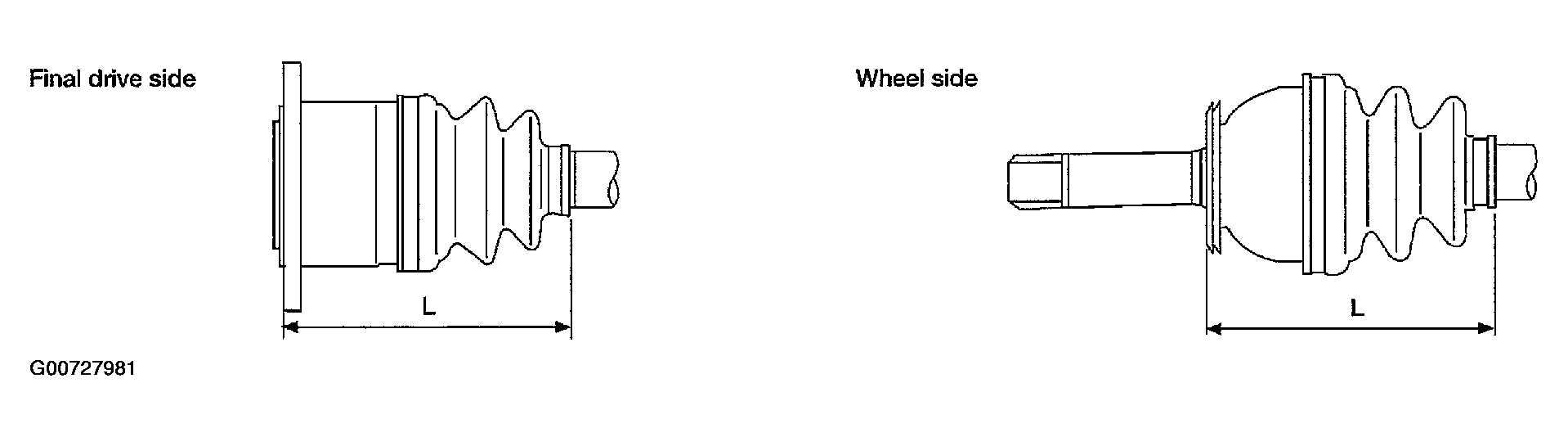

Fig 1: Drive Shaft Joint Length Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

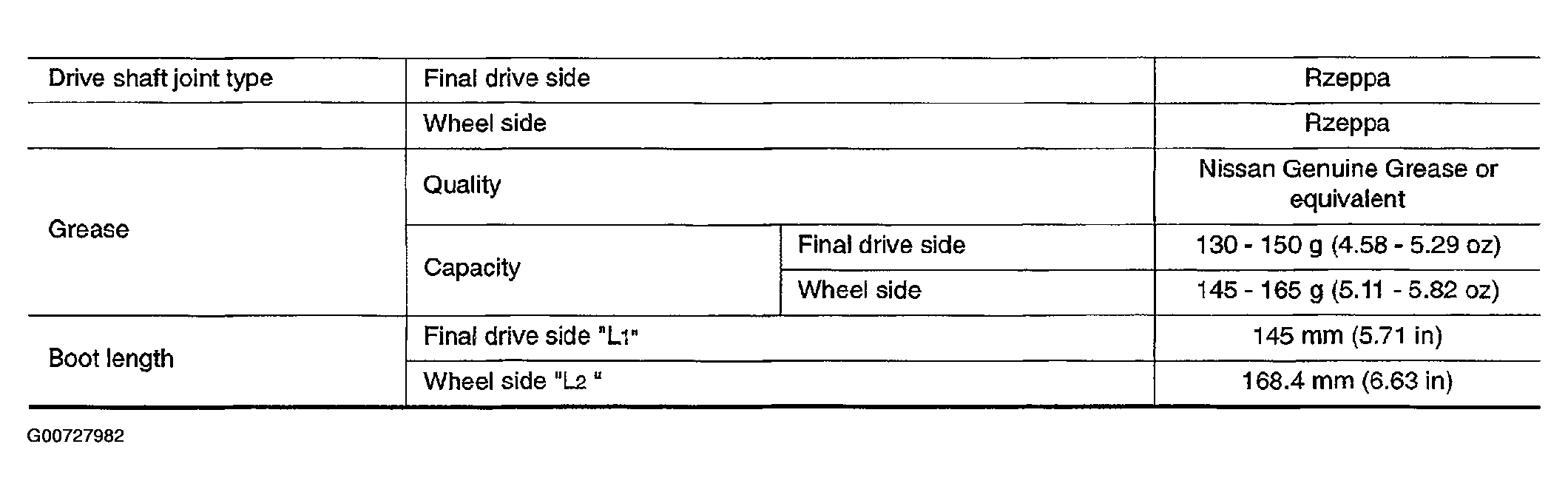

Fig 2: Drive Shaft Service Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
