Mainshaft Assembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install needle bearing to mainshaft.
    CAUTION: Apply ATF to periphery of needle bearing.
  2. Install sprocket and electric controlled coupling to mainshaft.
  3. Install spacer to main shaft.

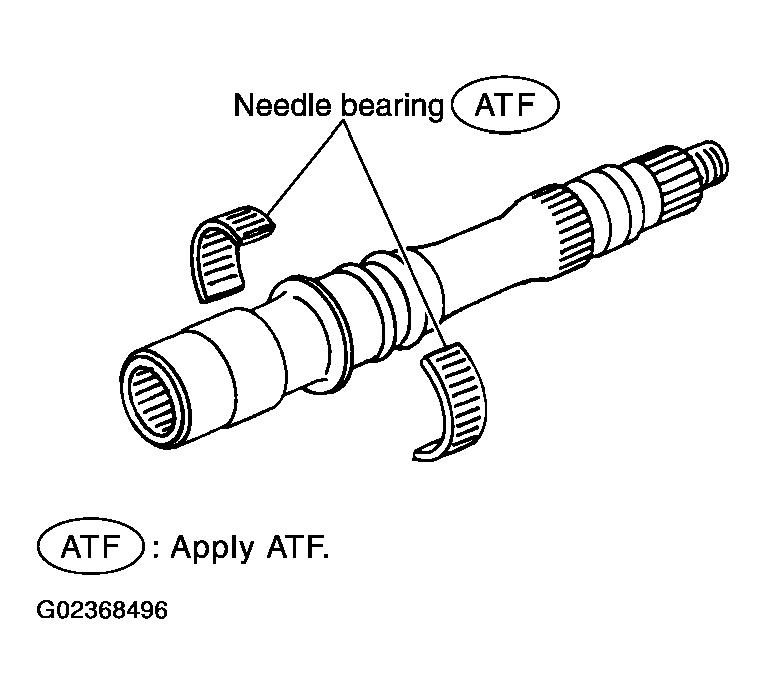

    Fig 1: Installing Needle Bearing To Mainshaft
    G02368496Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install snap ring to mainshaft.
    CAUTION: Do not reuse snap ring.
  5. Install mainshaft assembly to rear case, then install front case and rear case. Refer to "FRONT CASE AND REAR CASE ".

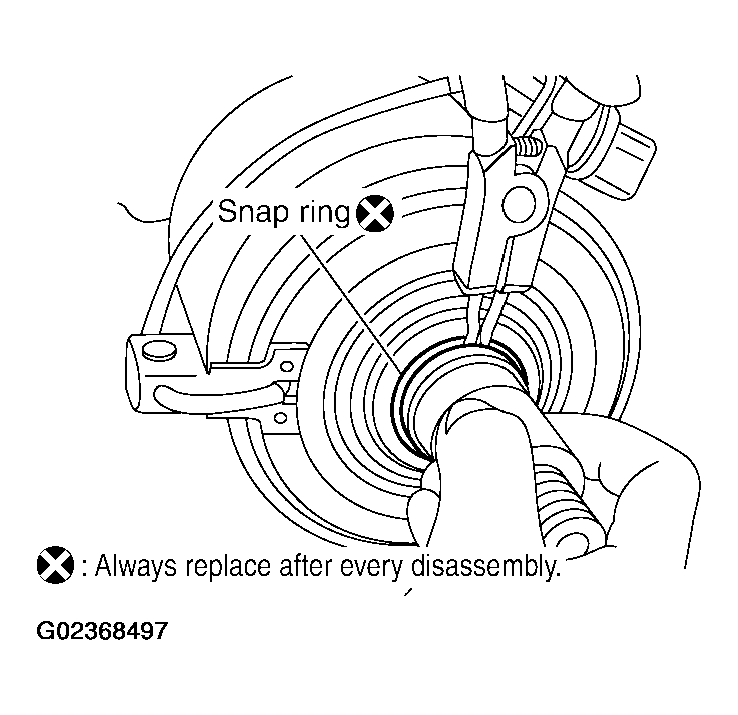

    Fig 2: Installing Snap Ring To Mainshaft
    G02368497Courtesy of NISSAN MOTOR CO., U.S.A.
