Mainshaft Assembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Separate front case and rear case, then remove mainshaft assembly. Refer to "FRONT CASE AND REAR CASE ".
  2. Remove snap ring from mainshaft.
  3. Remove spacer from mainshaft.
  4. Remove electric controlled coupling and sprocket from mainshaft.
  5. Remove needle bearing from mainshaft.

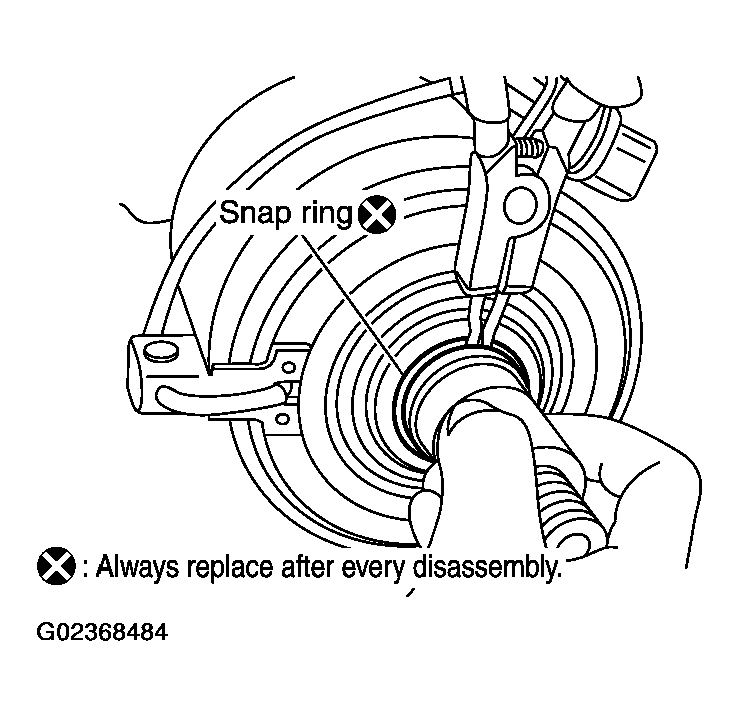

    Fig 1: Removing Snap Ring From Mainshaft
    G02368484Courtesy of NISSAN MOTOR CO., U.S.A.
