Disassembly and Assembly: Assembly
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Never use mineral oil such as kerosene, gasoline during the cleaning and assembly process.
- Do not drop parts. If a part is dropped, do not use it.

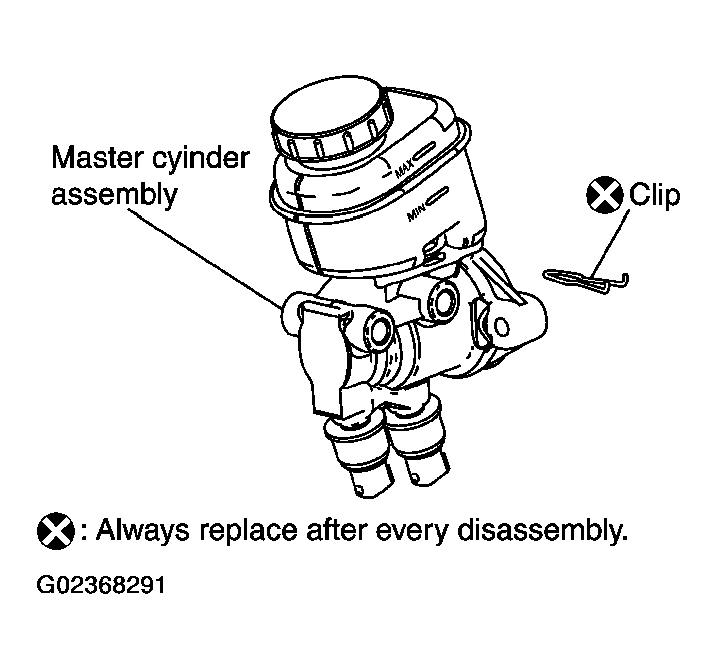

- Apply brake fluid grommet and attach to master cylinder assembly.CAUTION: Do not reuse grommet.
- Install reservoir tank onto master cylinder assembly.
- Install clip.
