Disassembly and Assembly: Disassembly
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Master cylinder can not be disassembled.
- Remove reservoir tank only when absolutely necessary.

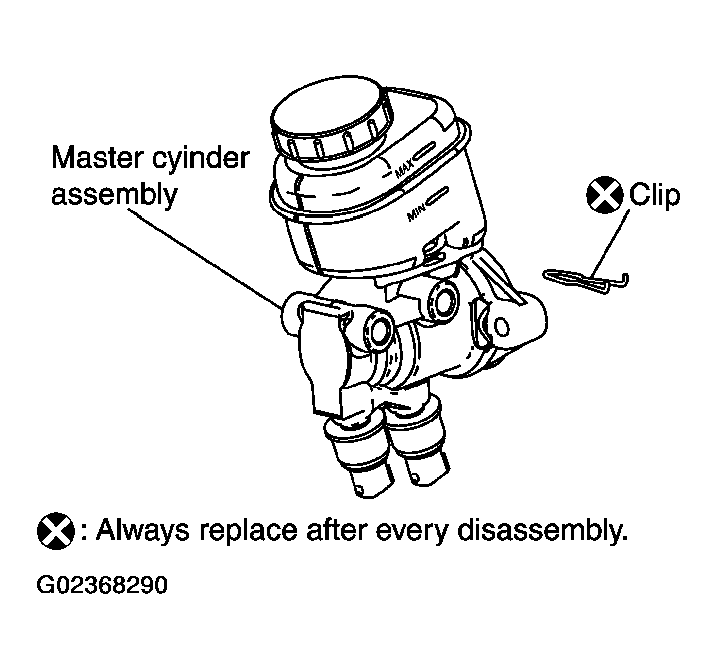

- Remove clip.
- Remove reservoir tank and grommet from master cylinder assembly.
Courtesy of NISSAN MOTOR CO., U.S.A.
