Knock Sensor

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between knock sensor terminal 1 and ground.

NOTE: It is necessary to use an ohmmeter which can measure more than 10 MΩ

Resistance: Approximately 532 - 588 kΩ2 [at 20°C (68°F)]

CAUTION: Do Not Use Any Knock Sensors That Have Been Dropped Or Physically Damaged. Use Only New Ones.

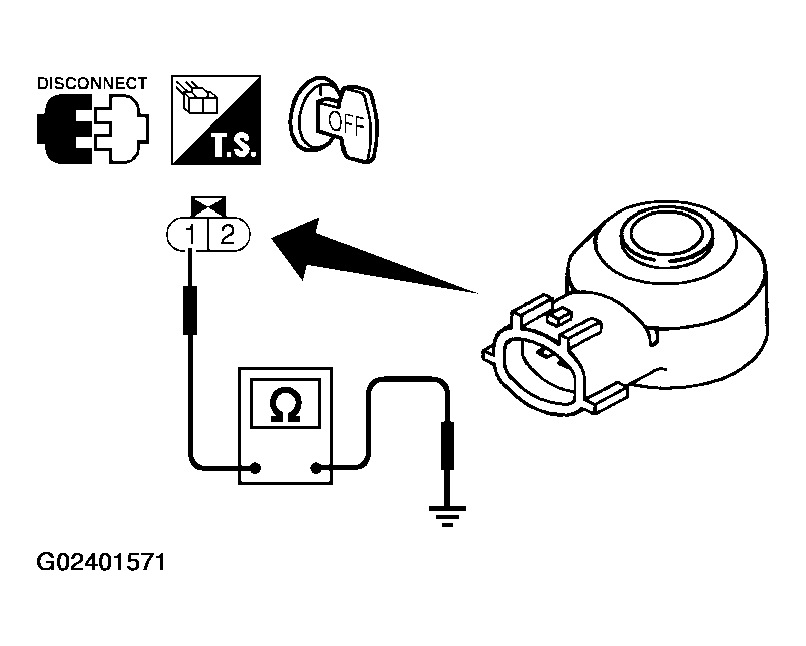

Fig 1: Checking Resistance Between Knock Sensor Terminal 1 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
