Operating Check

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

With the engine stopped, change the vacuum to the atmospheric pressure by depressing the brake pedal several times. Then with brake pedal fully depressed, start the engine and when the vacuum pressure reaches the standard, check that the clearance between the brake pedal and floor panel decreases.

CAUTION: Depressing pedal interval is approximately 5 seconds.

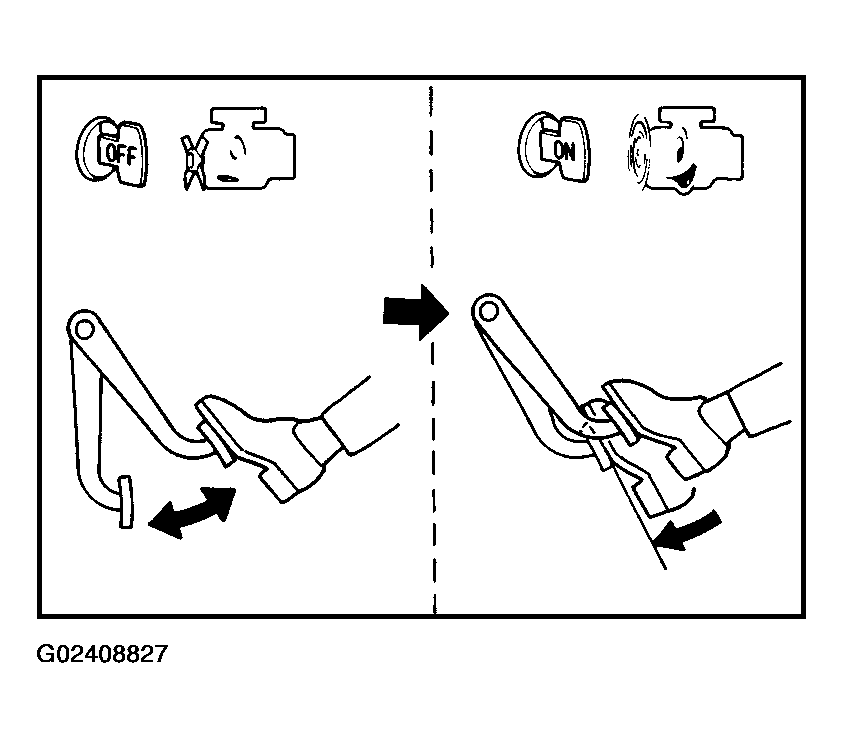

Fig 1: Checking Clearance Between Brake Pedal & Floor Panel
G02408827Courtesy of NISSAN MOTOR CO., U.S.A.
