Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front final drive assembly.

    Front final drive bolts: 182.5 N.m (19 kg-m, 135 ft-lb)

  2. Connect the vent hose.
  3. Install the front cross member.
  4. Install LH and RH drive shaft. Refer to "REMOVAL AND INSTALLATION ".
  5. Install front propeller shaft. Refer to "REMOVAL AND INSTALLATION ".

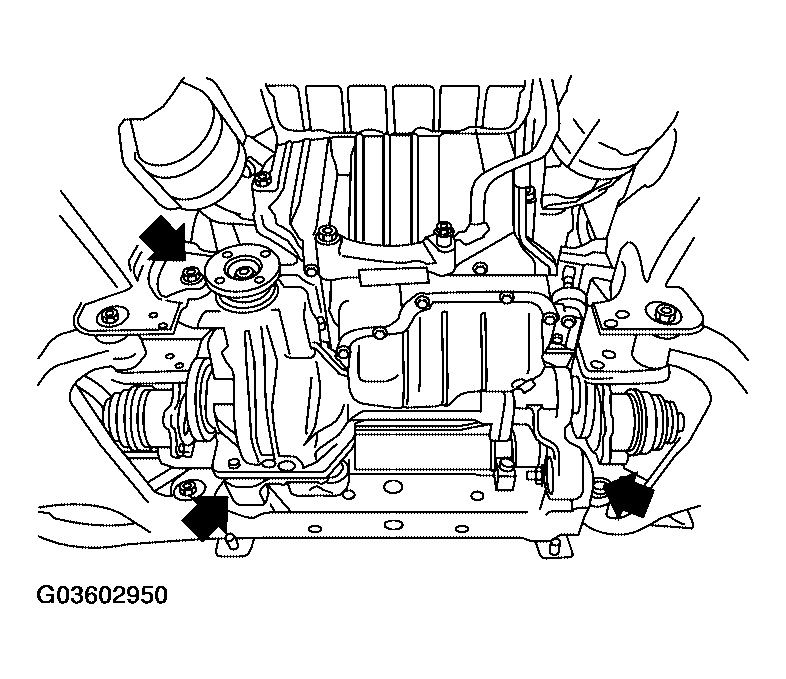

    Fig 1: Installing Front Final Drive Assembly & Bolts
    G03602950Courtesy of NISSAN MOTOR CO., U.S.A.
