Bulb Replacement

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect fog lamp connector.
  2. Turn the bulb counterclockwise to remove it.
    CAUTION:
    • Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it. Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.
    • Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.

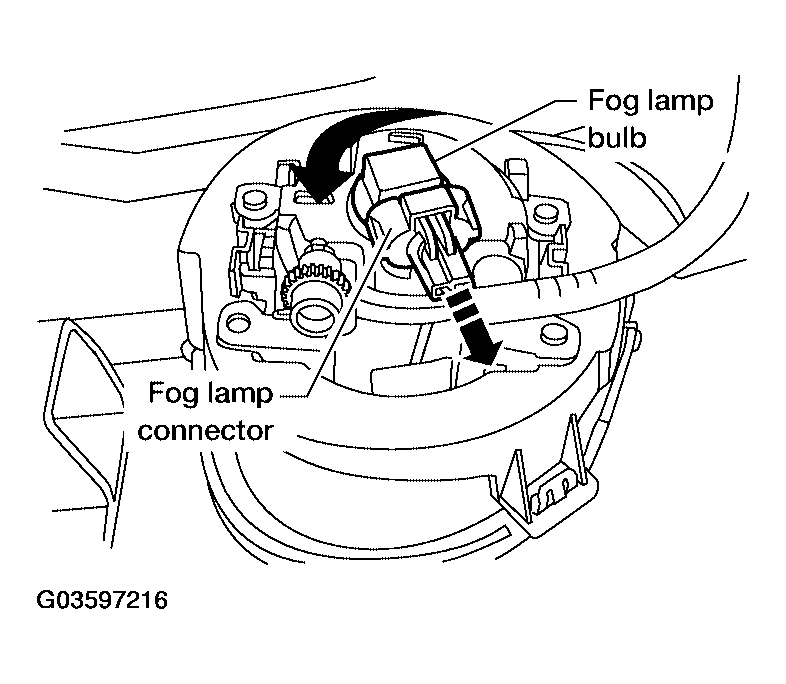

    Fig 1: Disconnecting Fog Lamp Connector
    G03597216Courtesy of NISSAN MOTOR CO., U.S.A.
