Aiming Adjustment

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming adjustment, make sure of the following.

Keep all tires inflated to correct pressure.
Place vehicle on level ground.
See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.

Adjust aiming in the vertical direction by turning the adjustment screw.

NOTE: Access adjustment screw from underneath front bumper. Use a T-3 (3 mm) Torx® bit or a 3 mm allen wrench to adjust. Turn screw clockwise to raise pattern and counterclockwise to lower pattern.

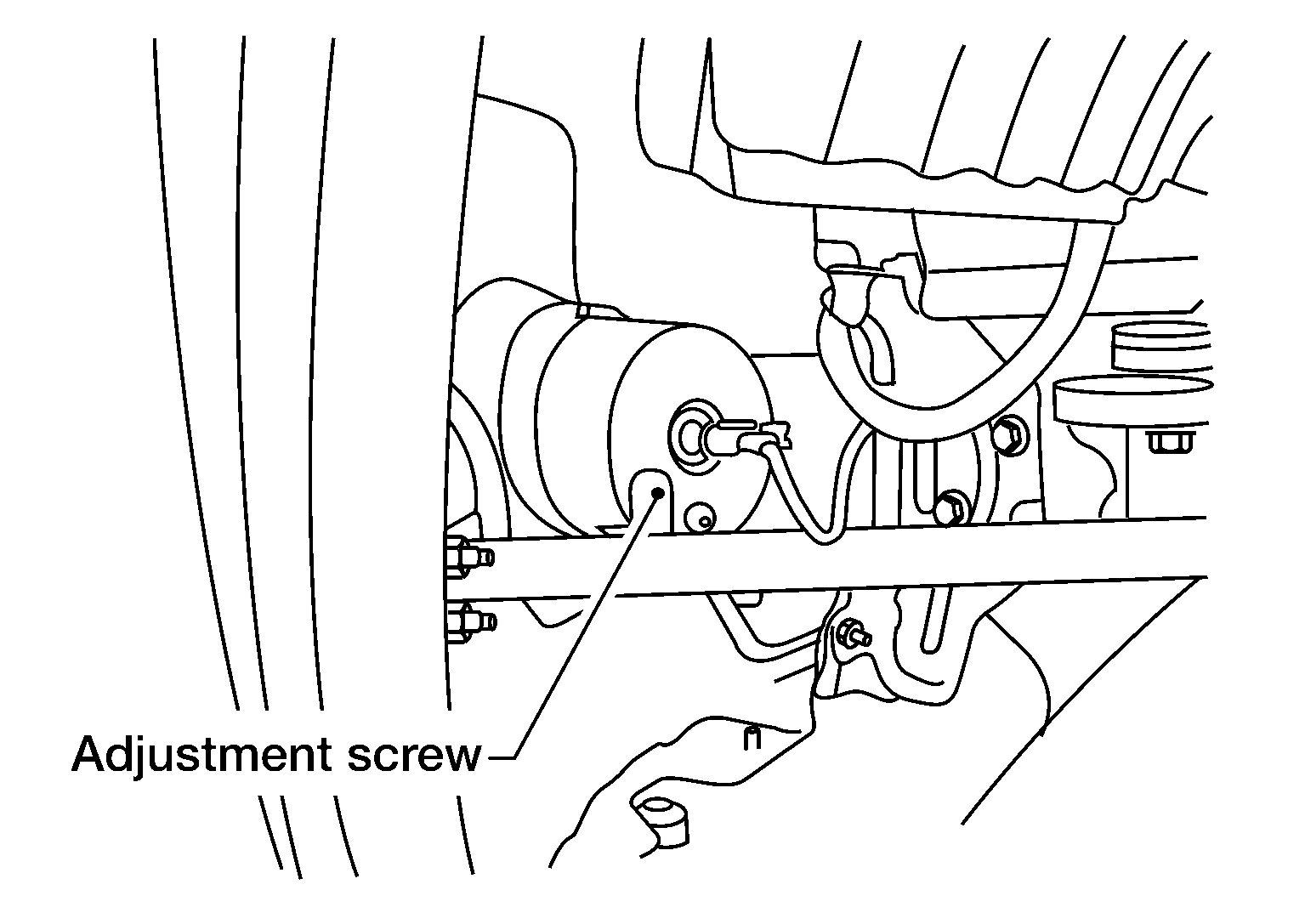

Fig 1: Identifying Adjustment Screw

Courtesy of NISSAN MOTOR CO., U.S.A.

Set the distance between the screen and the center of the fog lamp lens as shown.
Turn front fog lamps ON.

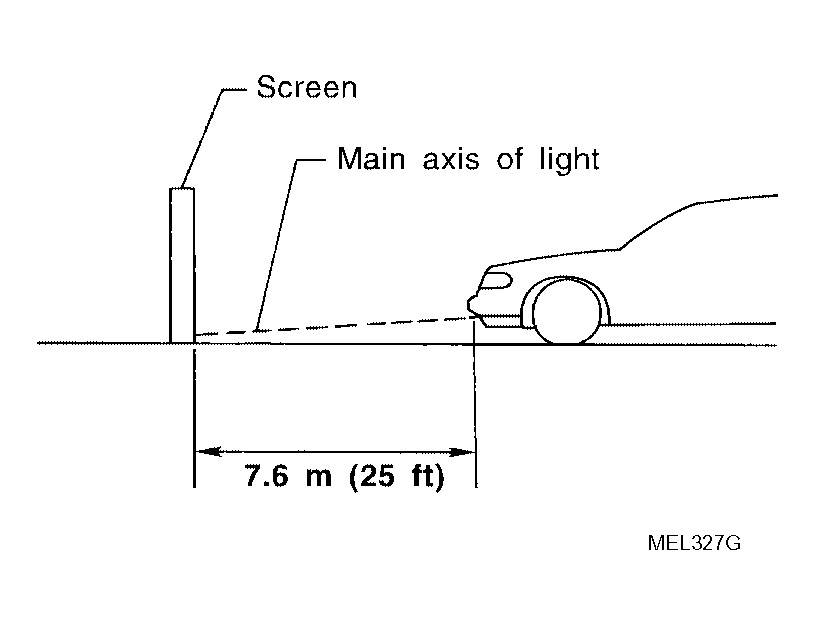

Fig 2: Identifying Distance Between Screen And Center Of Fog Lamp Lens

Courtesy of NISSAN MOTOR CO., U.S.A.

Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (4 in) below the height of the fog lamp centers as shown.

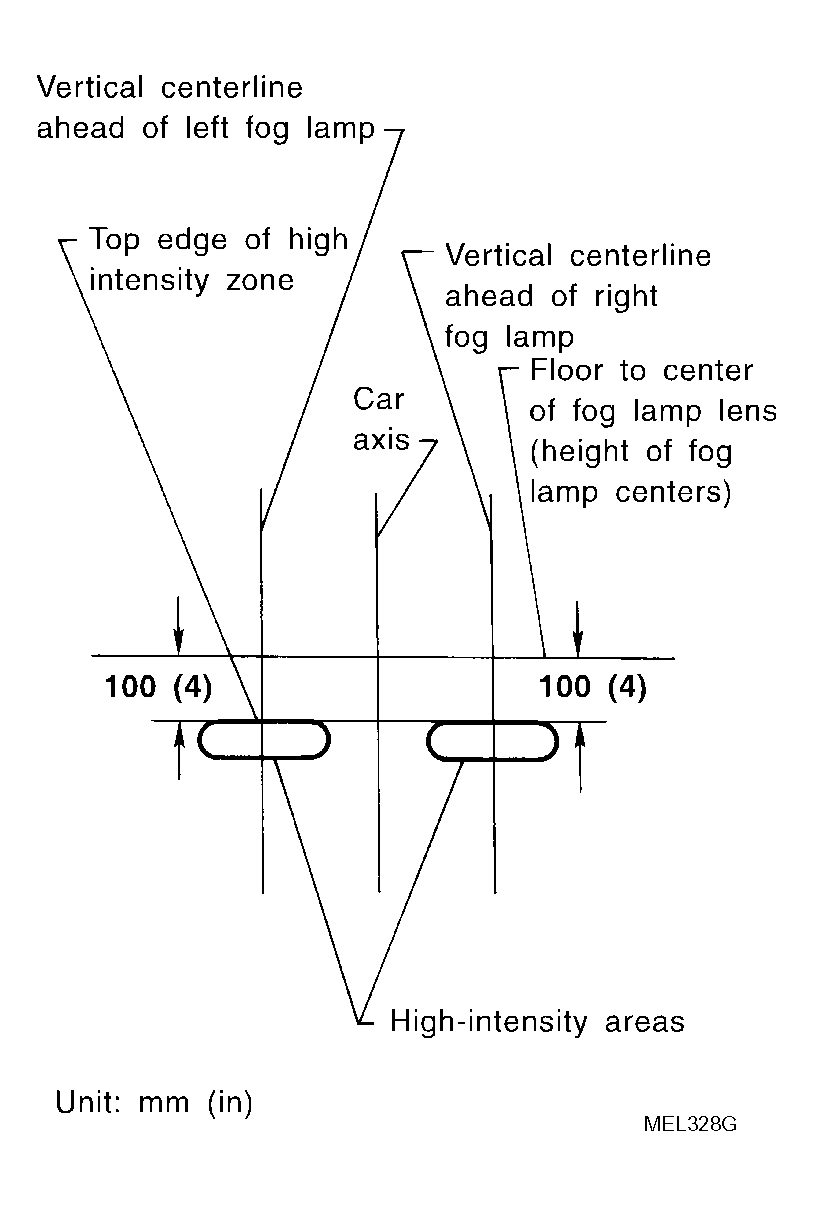

Fig 3: Identifying Top Edge Of High Intensity Zone Below Height Of Fog Lamp Centers
Courtesy of NISSAN MOTOR CO., U.S.A.
- When performing adjustment, if necessary, cover the headlamps and opposite fog lamp.
