Input/Output (Time Control Unit)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For time control unit input/outputs, see Fig 1 .

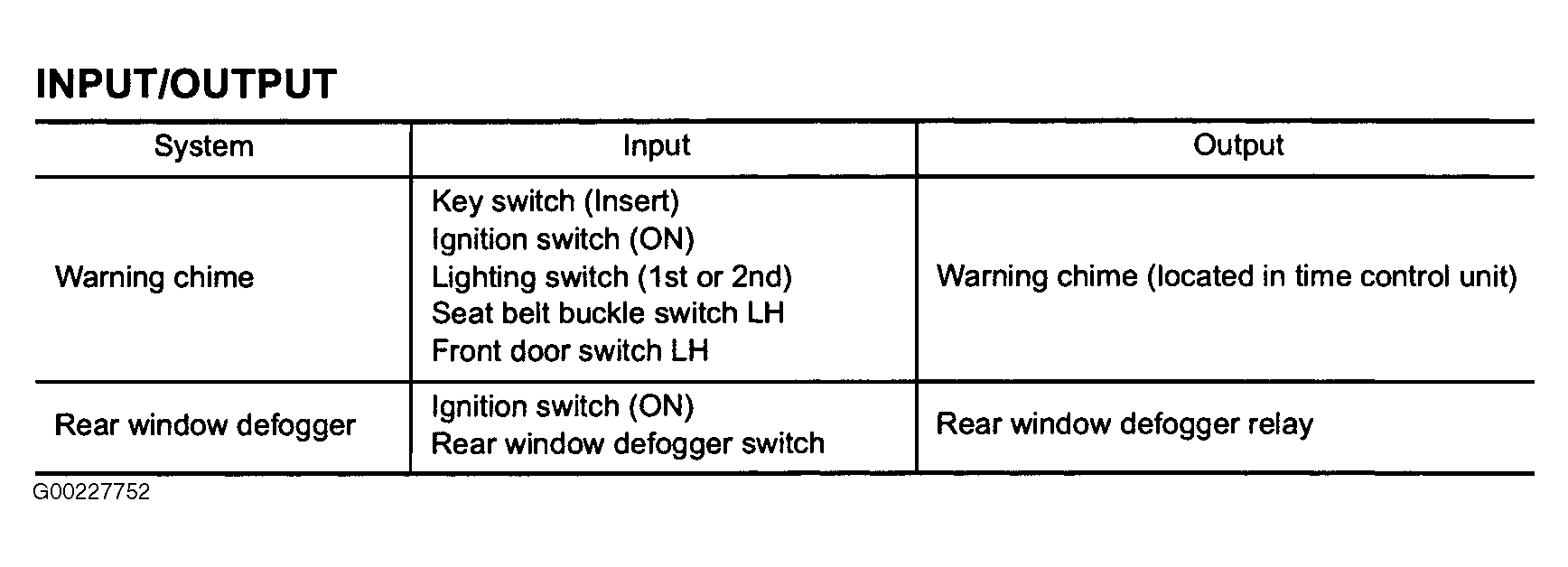

Fig 1: Identifying Input/Outputs (Time Control Unit)

Courtesy of NISSAN MOTOR CO., U.S.A.
