Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOLS SPECIFICATION
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

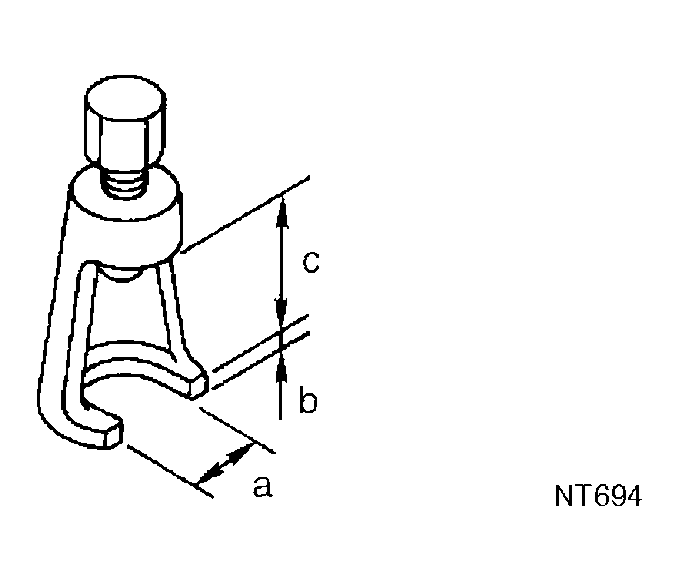

| ST29020001 (J-24319-01) Gear arm puller |
Removing ball joint for steering knuckle a: 34 mm (1.34 in) b: 6.5 mm (0.256 in) c: 61.5 mm (2.421 in) |
|

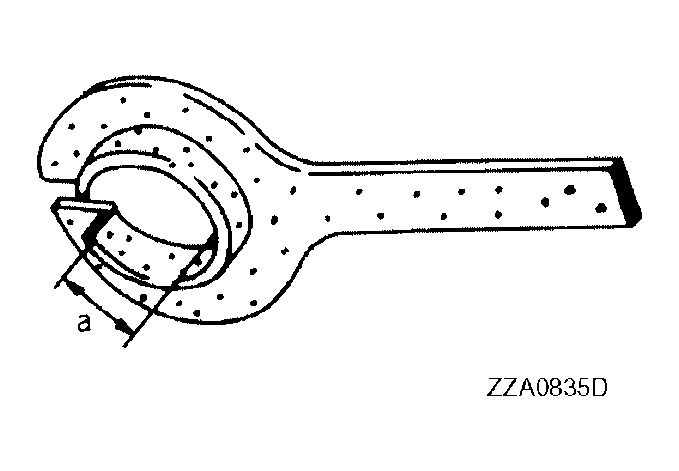

| KV38105500 (J-33904) Protector |
Installing drive shaft a: 32 mm (1.26 in) dia |
|
| KV40107300 ( - ) Boot band crimping tool |
Installing boot bands | |
