Display Control Unit Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit side and harness side).
OK or NG

OK : GO TO 2.

NG : Repair terminal or connector.

CHECK HARNESS FOR OPEN CIRCUIT

Disconnect display control unit connector.
Check resistance between display control unit harness connector terminals.

TERMINAL CONNECTOR CONTINUITY CHART

Display control unit connector	Terminal		Resistance (Approx.)
M95	25	26	54 - 66 ohm

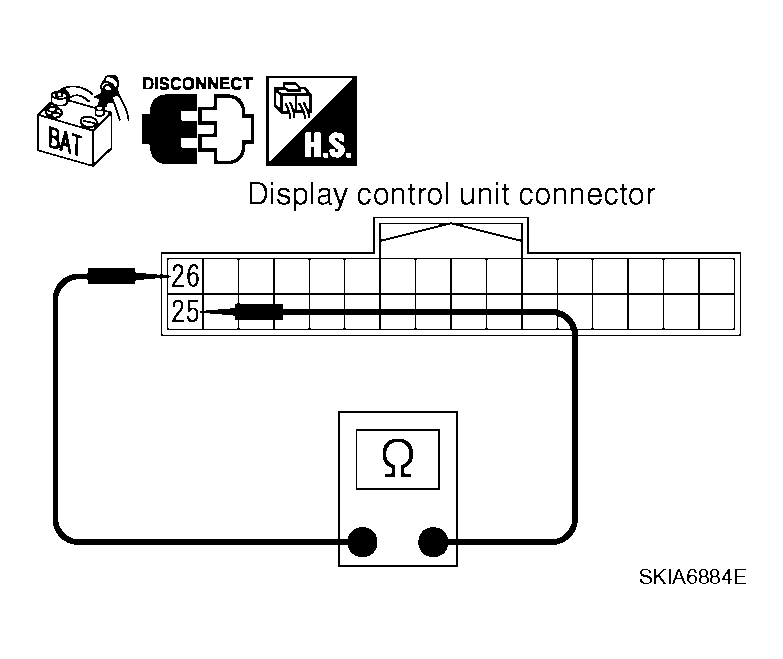

Fig 1: Checking Resistance Between Display Control Unit Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace display control unit.

NG : Repair harness between display control unit and data link connector.
