Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to "CENTER CONSOLE ".
  2. Remove yaw rate/side/decel G sensor attaching nuts as shown.
    • The location of the sensor is the same for all models.
    CAUTION:
    • Do not use power tools to remove or install yaw rate/side/decel G sensor.
    • Do not drop or strike the yaw rate/side/decel G sensor.

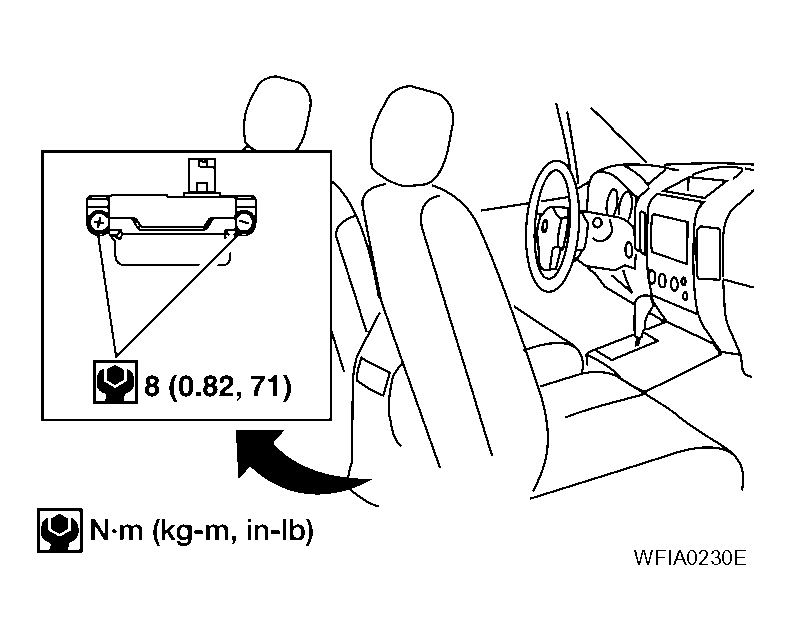

    Fig 1: Yaw Rate/Side/Decel G Sensor Attaching Nuts With Torque Specifications
    G04175534Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect harness connector and remove the yaw rate/side/decel G sensor.
