Shift Rod Components

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check the working face of the shift rod and fork for wear, partial wear, bending and other abnormality. If any is found, replace with a new one.

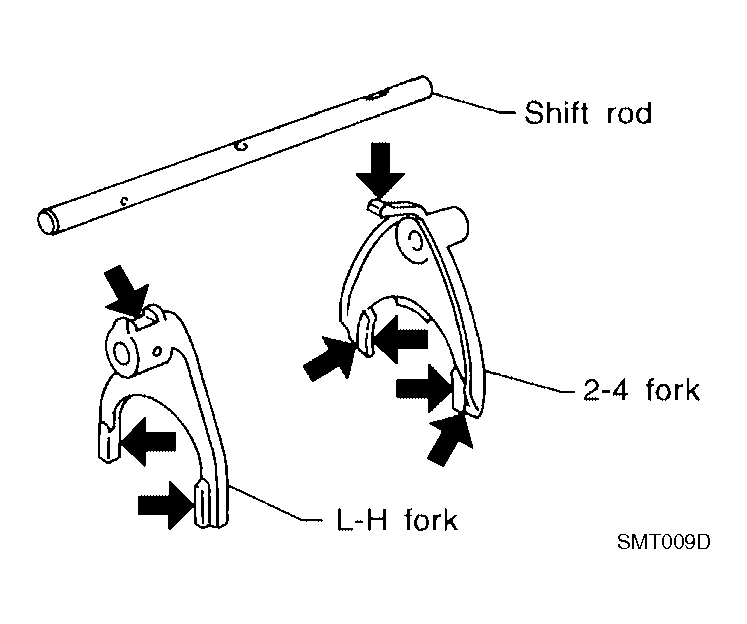

Fig 1: Inspecting Working Face Of Shift Rod And Fork For Wear
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure the clearance between the shift fork and sleeve. If it is out of specification, replace it with a new one.
Specification: Less than 0.36 mm (0.0142 in)

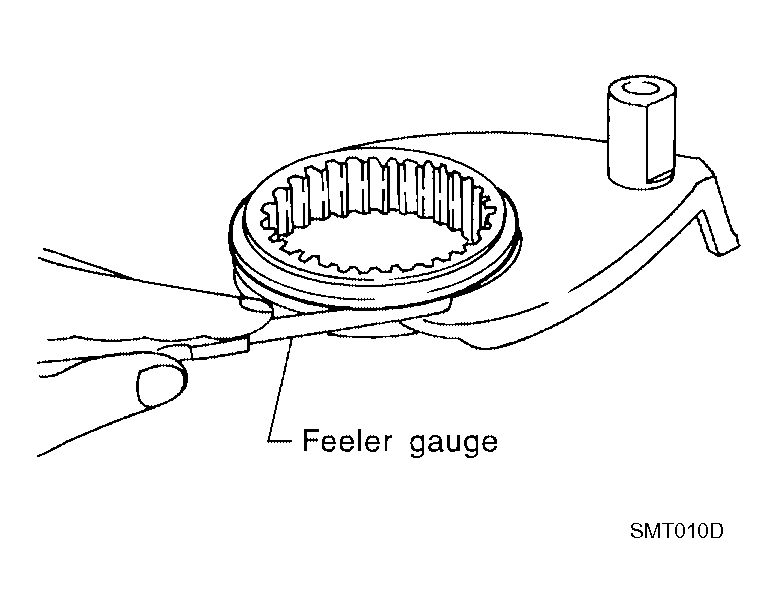

Fig 2: Measuring Clearance Between Shift Fork And Sleeve

Courtesy of NISSAN MOTOR CO., U.S.A.
