Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defrost grille. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the connector.
  3. Turn the optical sensor counterclockwise to remove it from defroster grille.

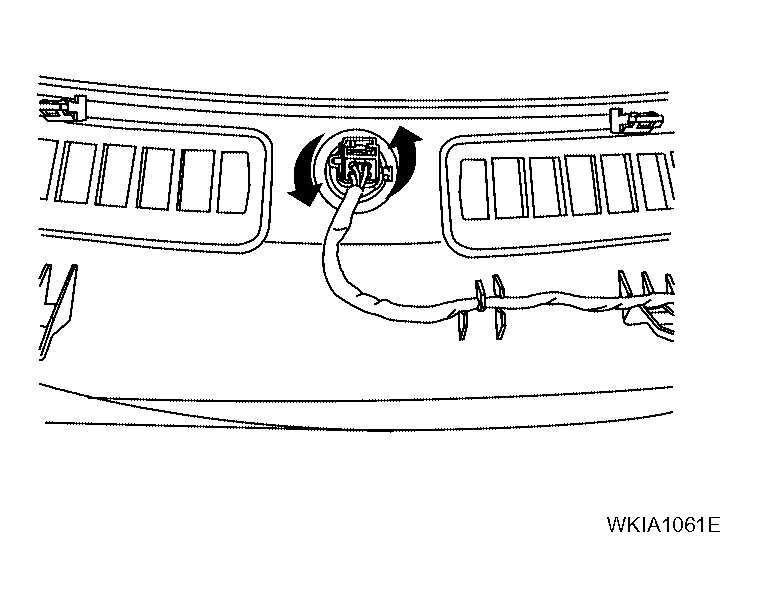

    Fig 1: Identifying Optical Sensor
    G04200816Courtesy of NISSAN MOTOR CO., U.S.A.
