Steering Linkage: Disassembly
- FIX POWER STEERING LINK ASSEMBLY

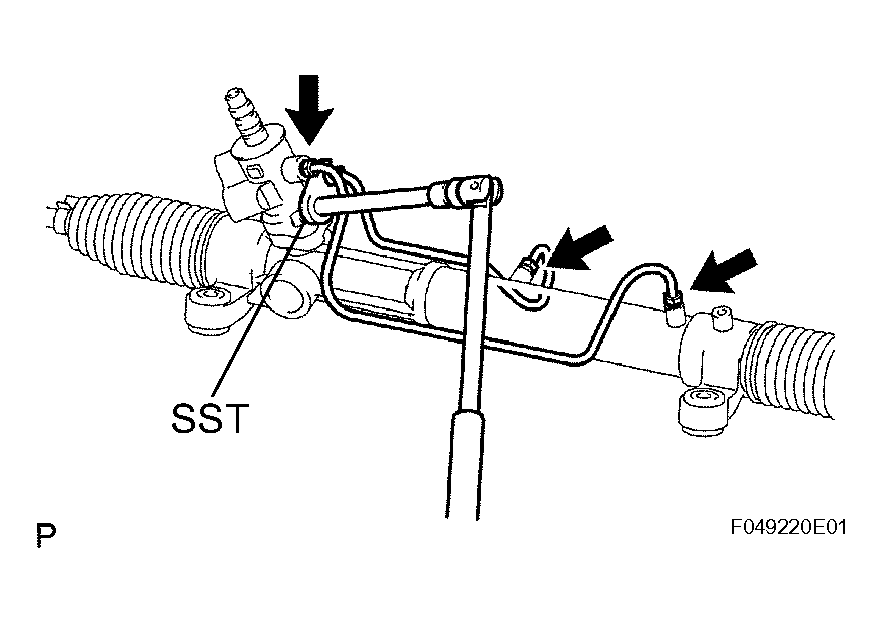

- Using SST, remove the left turn pressure tube.
SST 09023-38201
Using SST, remove the right turn pressure tube.
SST 09023-38201

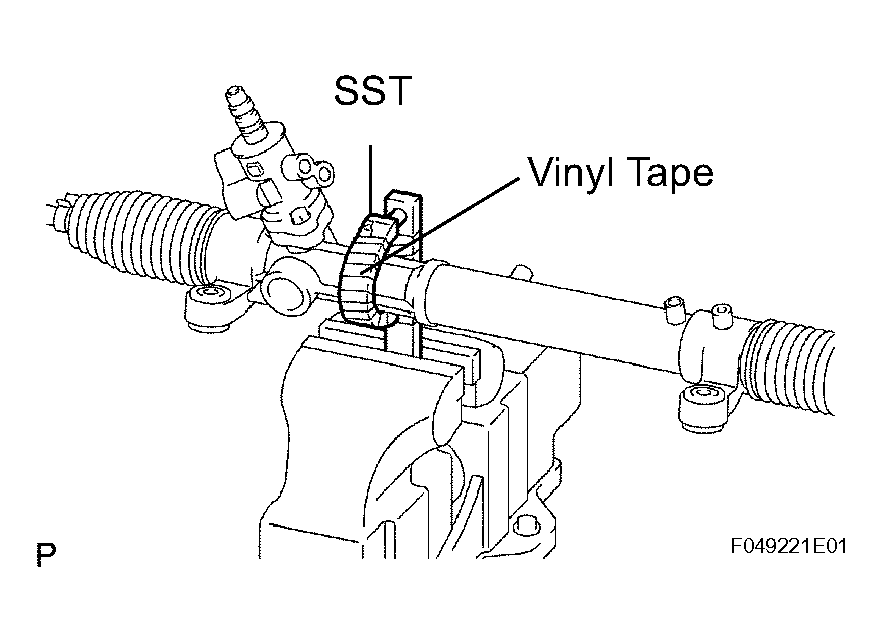

- Using SST, secure the power steering link assembly.
SST 09612-00012
HINT:
Tape the SST before use.
- Using SST, remove the left turn pressure tube.
- REMOVE TIE ROD END SUB-ASSEMBLY LH
- Put matchmarks on the tie rod end and rack end.
- Loosen the lock nut, and remove the tie rod end and lock nut.
- REMOVE TIE ROD END SUB-ASSEMBLY RH
HINT:
Perform the same procedure as for the LH.

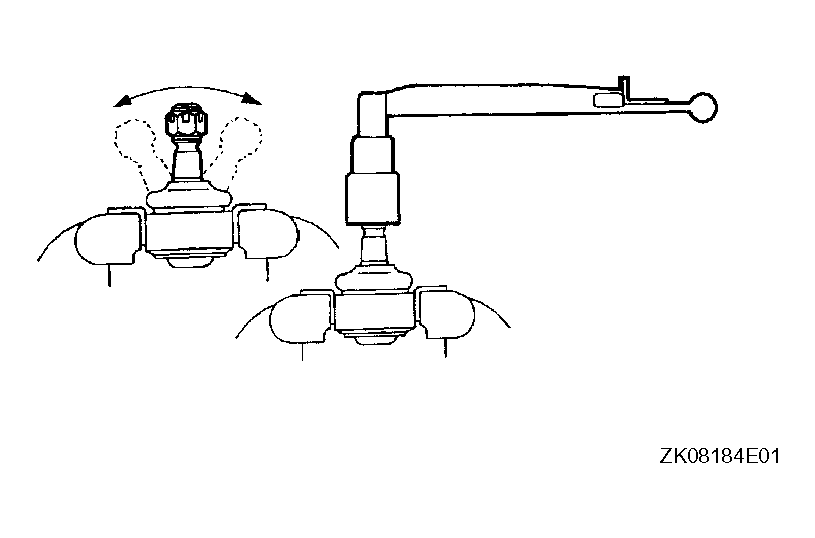

- INSPECT TIE ROD END SUB-ASSEMBLY LH
- Secure the tie rod end in a vise.
- Install the nut to the stud bolt.
- Flip the ball joint back and forth 5 times or more.
- Using a torque wrench, turn the nut continuously at a rate of 2 to 4 seconds per turn and take the torque reading on the 5th turn.
Torque: Turning torque 0.49 to 3.43 N*m (5.0 to 35 kgf*cm, 4.3 to 30.4 in.*lbf)
If not within the specified torque range, replace the tie rod end sub-assembly.
- INSPECT TIE ROD END SUB-ASSEMBLY RH
HINT:
Perform the same procedure as for the LH.
- REMOVE STEERING RACK BOOT CLIP
- Remove the 2 boot clips.
- REMOVE NO. 2 STEERING RACK BOOT CLAMP

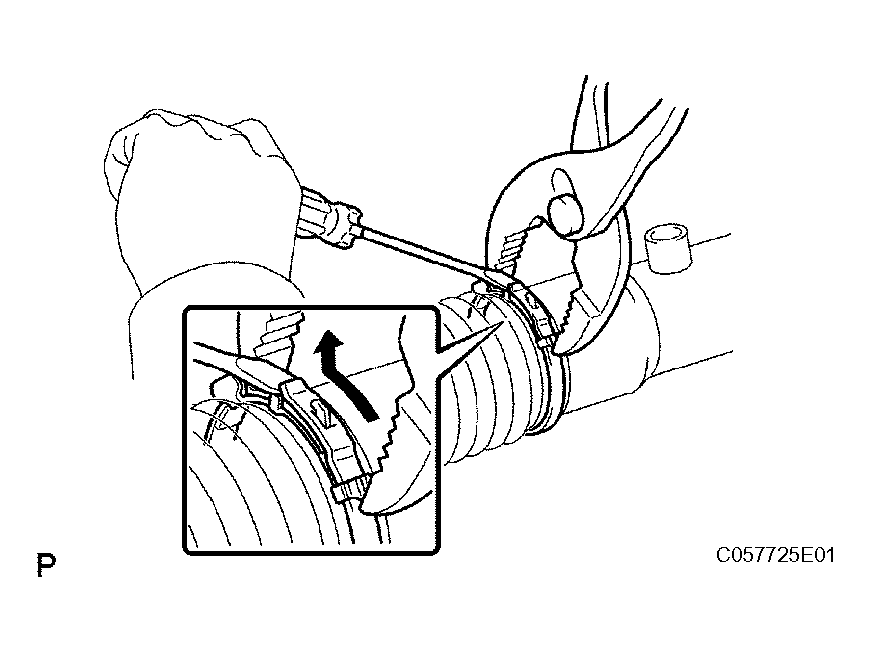

- Using pliers, loosen the clamp as shown in the illustration.
- Using a screwdriver, remove the clamp.NOTE: Be careful not to damage the boot.
- REMOVE NO. 1 STEERING RACK BOOT CLAMP
HINT:
Perform the same procedure as for the clamp.
- REMOVE NO. 2 STEERING RACK BOOT
- REMOVE NO. 1 STEERING RACK BOOT
- REMOVE STEERING RACK END SUB-ASSEMBLY

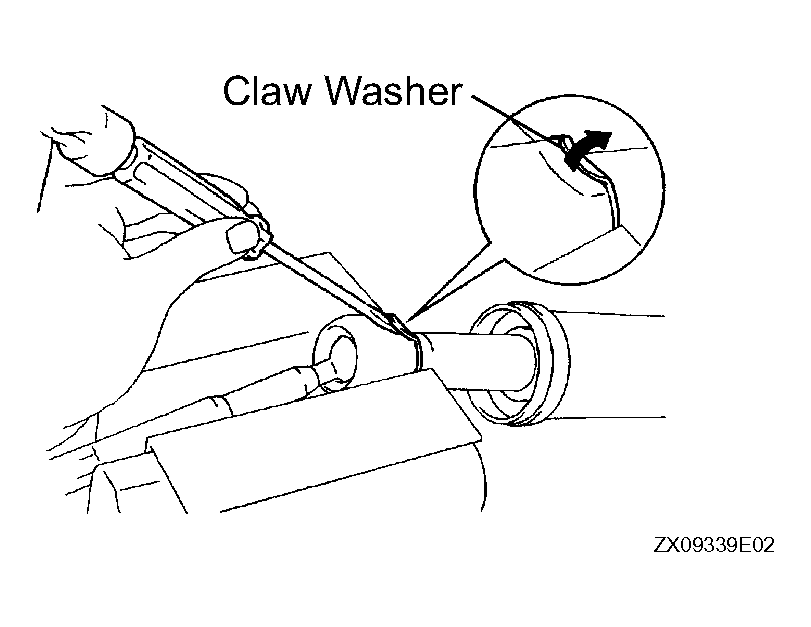

- Using a screwdriver and hammer, unstake the RH and LH claw washers.NOTE: Avoid any impact to the steering rack.

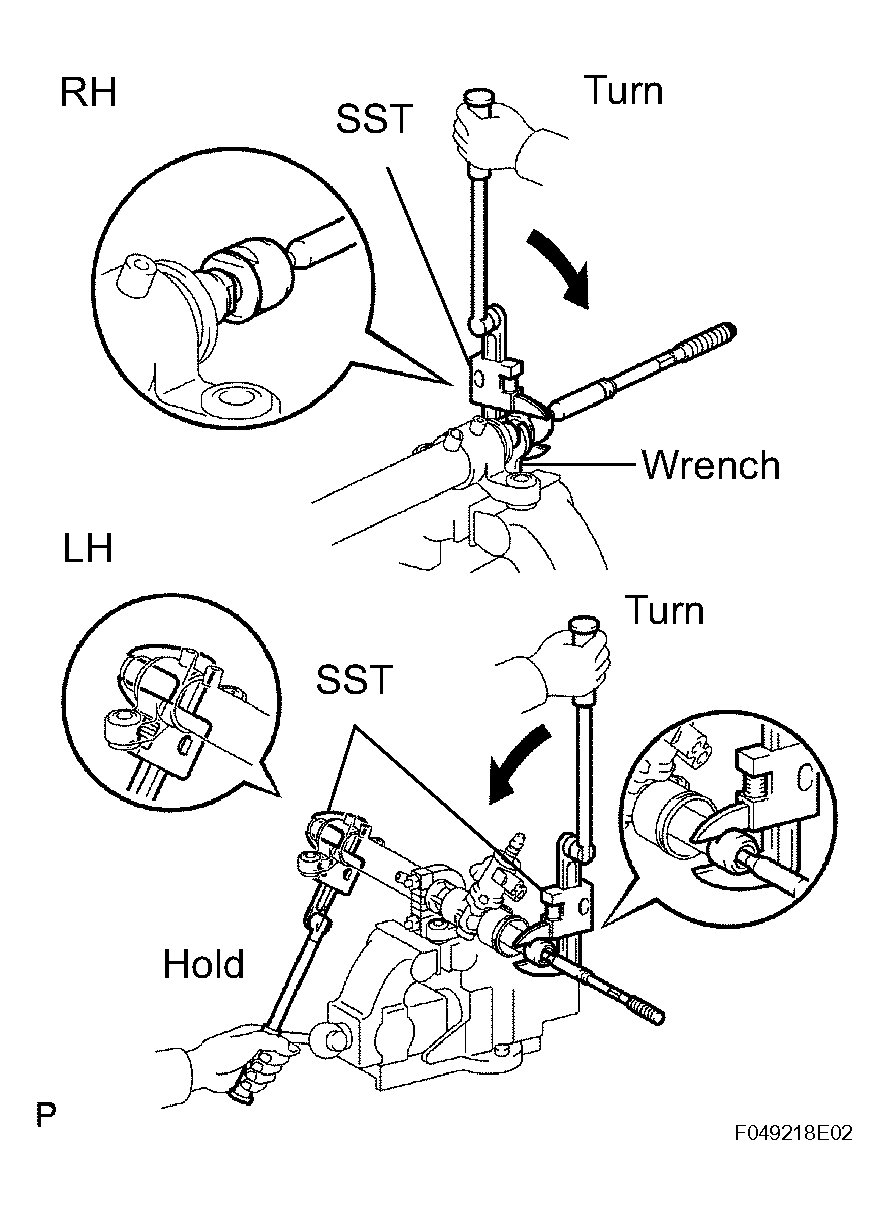

- Using a 22 mm wrench and a vise, hold the steering rack (RH side).
- Using SST, remove the rack end (RH side) and claw washer from the steering rack.
SST 09922-10010
NOTE: Use SST 09922-10010 in the direction shown in the illustration. - Using 2 SST, remove the rack end (LH side) and claw washer from the steering rack.
SST 09922-10010
NOTE: Use SST 09922-10010 in the direction shown in the illustration.
- Using a screwdriver and hammer, unstake the RH and LH claw washers.
- REMOVE RACK GUIDE

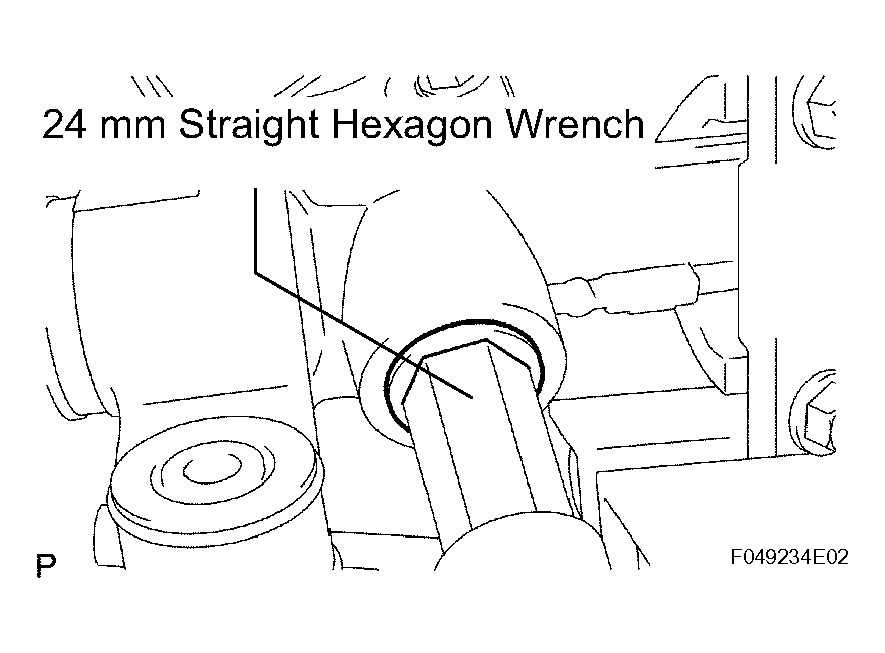

- Using a 24 mm straight hexagon wrench, remove the rack guide spring cap.
- Remove the compression spring and the rack guide.
- REMOVE POWER STEERING CONTROL VALVE

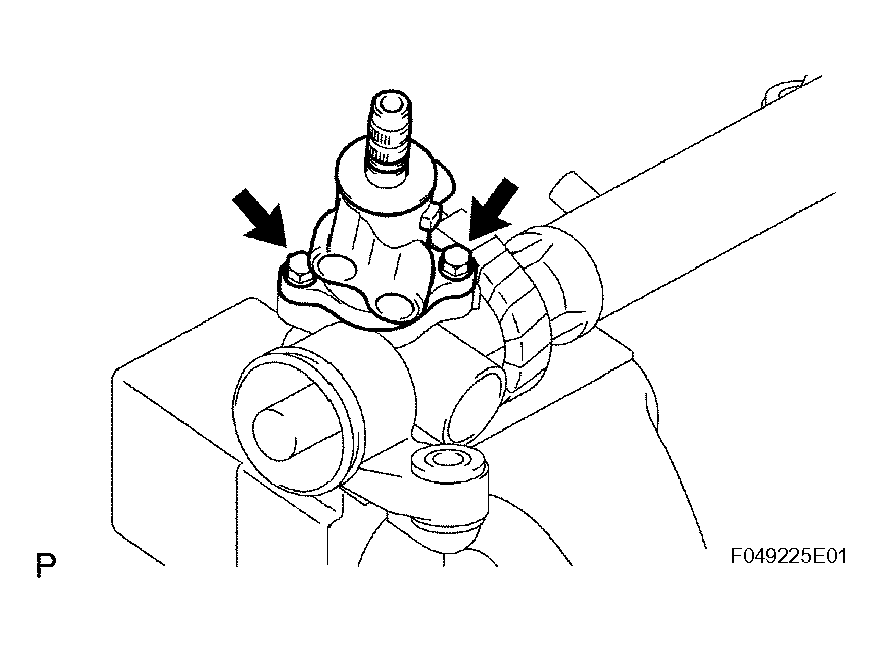

- Remove the 2 bolts and the control valve housing with the control valve.
- Remove the gasket.

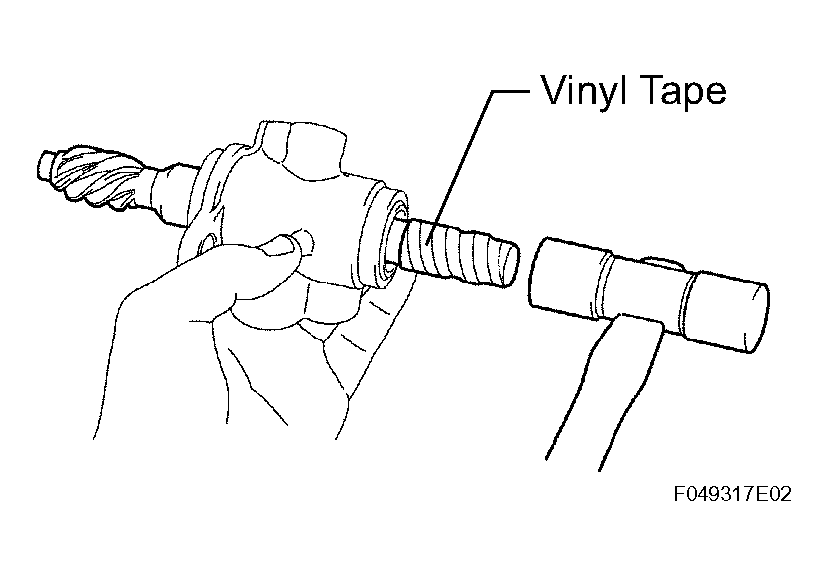

- Wrap vinyl tape around the spline of the control valve in order to prevent damaging the oil seal.
- Using a plastic-faced hammer, tap out the control valve.

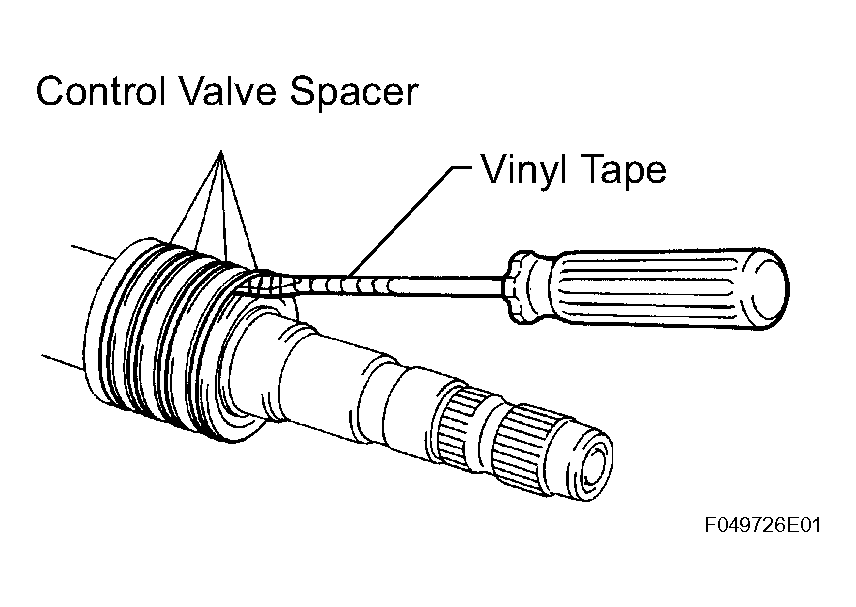

- Using a screwdriver, remove the 4 control valve spacers.NOTE: Be careful not to damage the spacer grooves on the control valve.
HINT:
Tape the screwdriver tip before use.
- REMOVE POWER STEERING CONTROL VALVE UPPER OIL SEAL

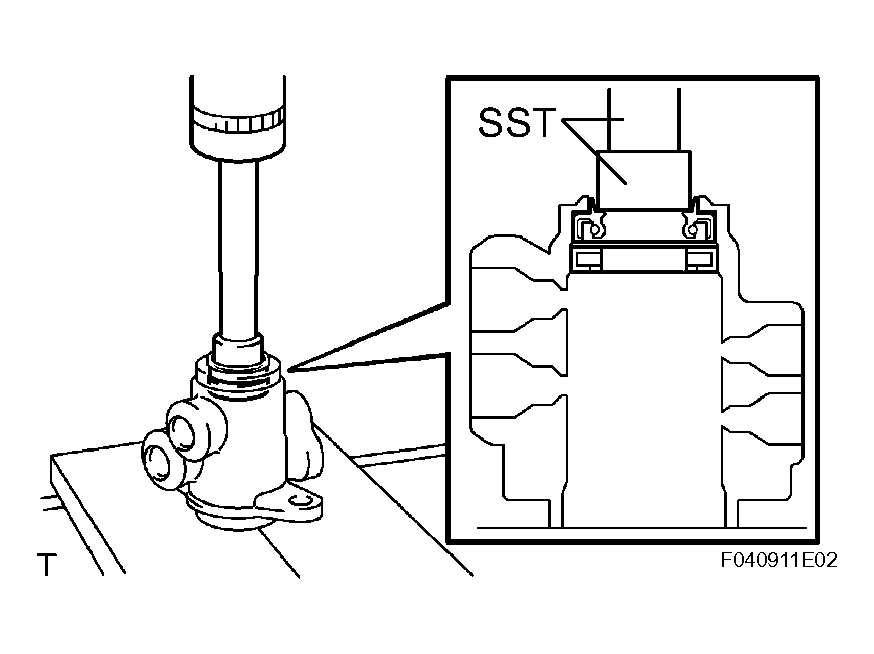

- Using SST and a press, press out the control valve upper bearing and the upper oil seal from the control valve housing.
SST 09950-70010 (09951-07100), 09950-60010 (09951-00240)
- Using SST and a press, press out the control valve upper bearing and the upper oil seal from the control valve housing.
- REMOVE CYLINDER END STOPPER

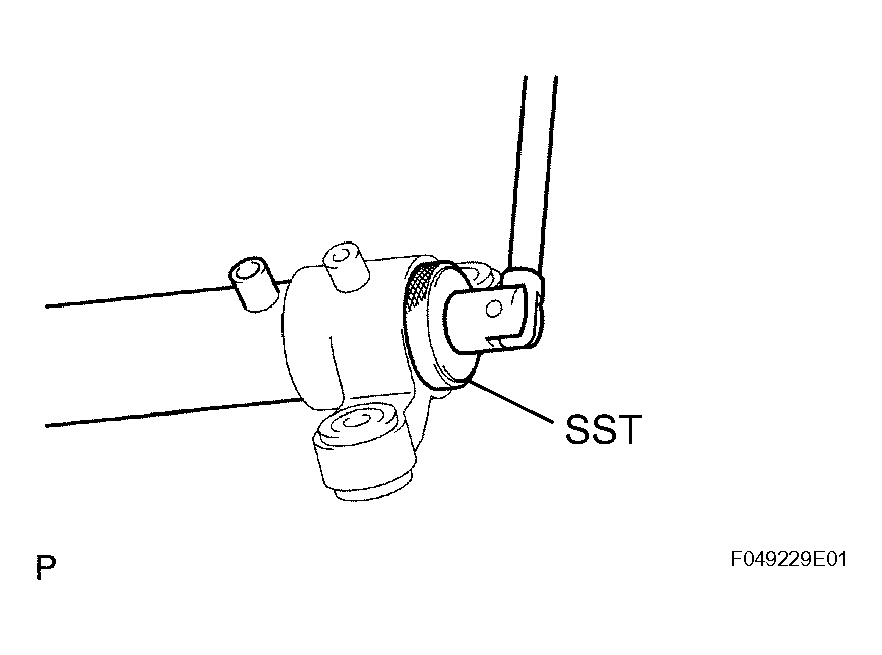

- Using SST, remove the cylinder end stopper from the rack housing.
SST 09631-20120
- Using a screwdriver, remove the cylinder end stopper O-ring from the cylinder end stopper.
- Using a screwdriver, remove the cylinder end stopper bush from the cylinder end stopper.NOTE: Do not damage the cylinder end stopper.
- Using SST, remove the cylinder end stopper from the rack housing.
- REMOVE POWER STEERING RACK

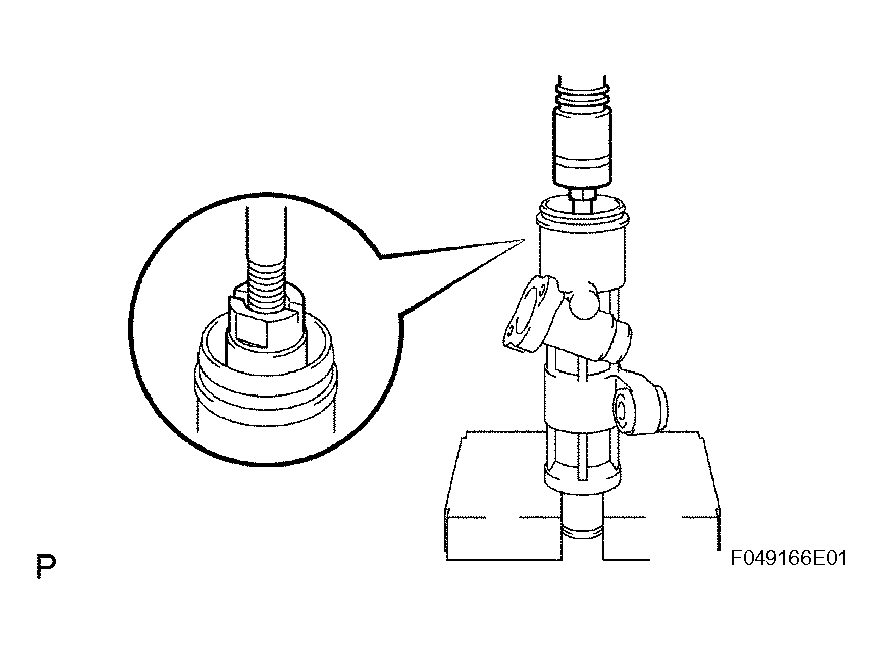

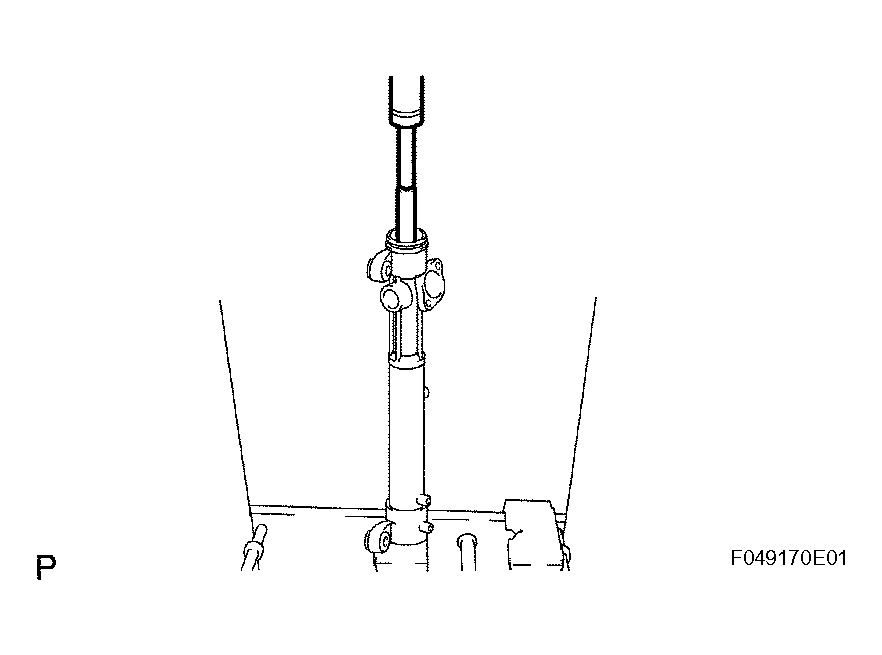

- Using a bolt (M14 x P1.5) and a press, press out the power steering rack with the cylinder end stopper oil seal.
- Remove the cylinder end stopper oil seal from the power steering rack.

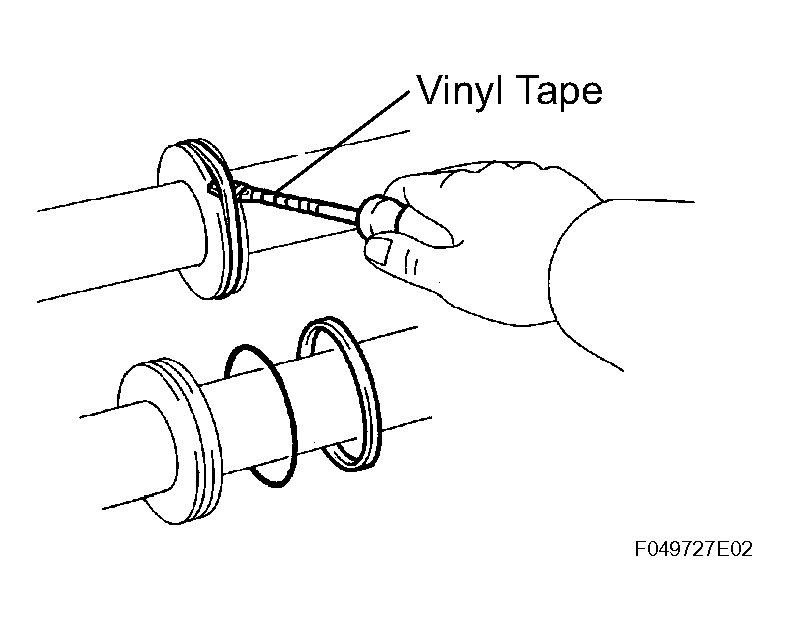

- Using a screwdriver, remove the oil seal and the O-Ring.NOTE: Be careful not to damage the oil seal groove on the power steering rack.
HINT:
Tape the screwdriver tip before use.
- REMOVE POWER STEERING CYLINDER TUBE OIL SEAL

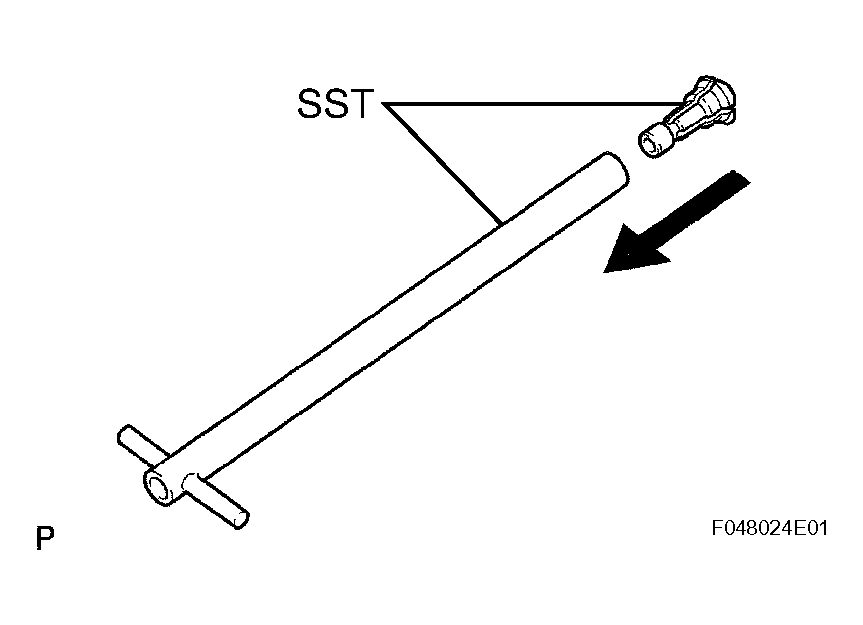

- Set the SST.
SST 09612-70100 (09612-07110, 09612-07210)
NOTE:- Lightly apply MP grease to the tip of SST (09612-07230) and inside of SST (09612-07210 and 09612-07110) before use.
- Completely install SST (09612-07110) to SST (09612-07210) to prevent damage to the inside of the rack housing.

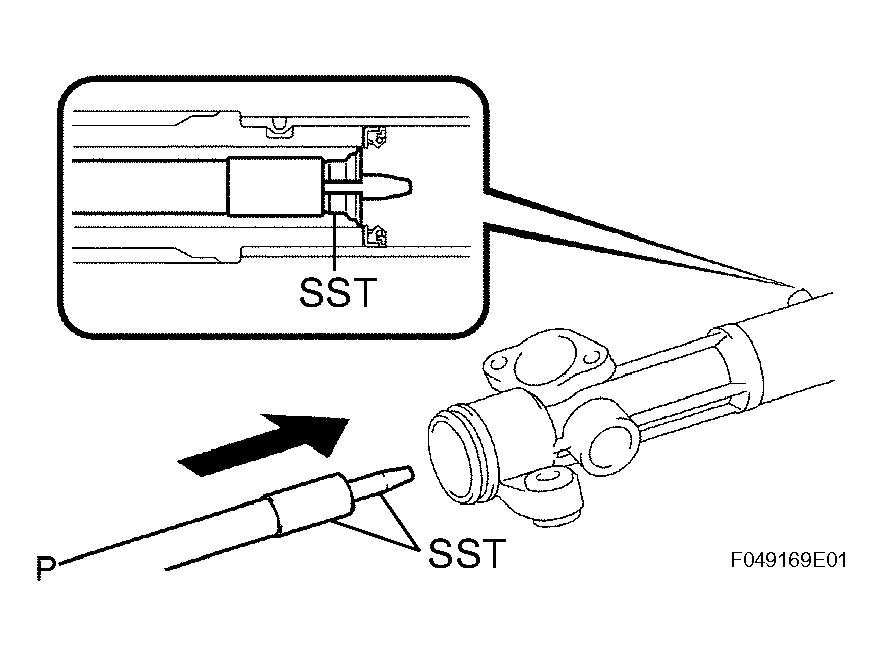

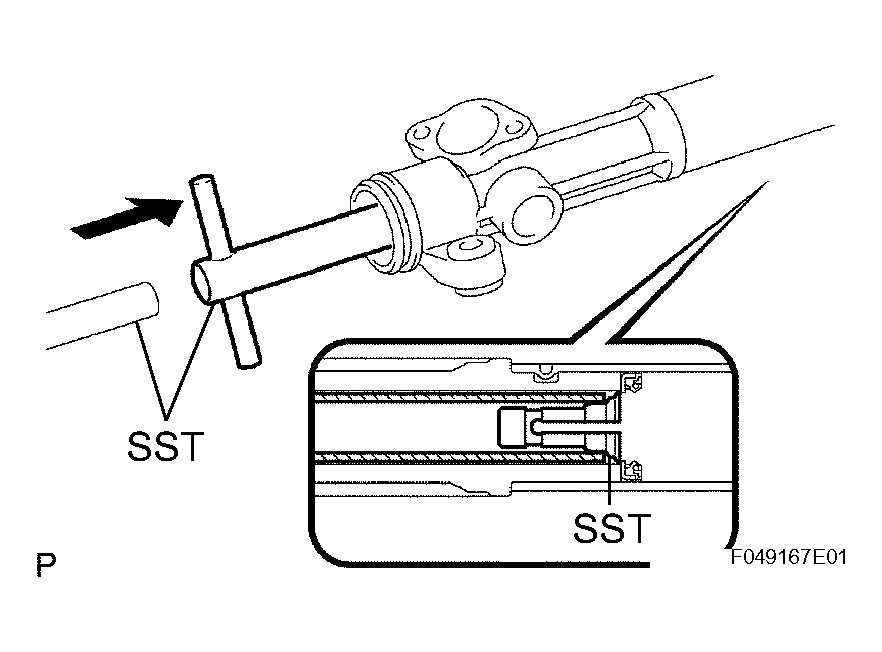

- Insert SST (09612-07210) into the rack housing at a slant until it comes in contact with the power steering cylinder tube oil seal. Install SST (09612- 07220) to SST (09612-07210).
SST 09612-70100 (09612-07110, 09612-07210, 09612-07220)

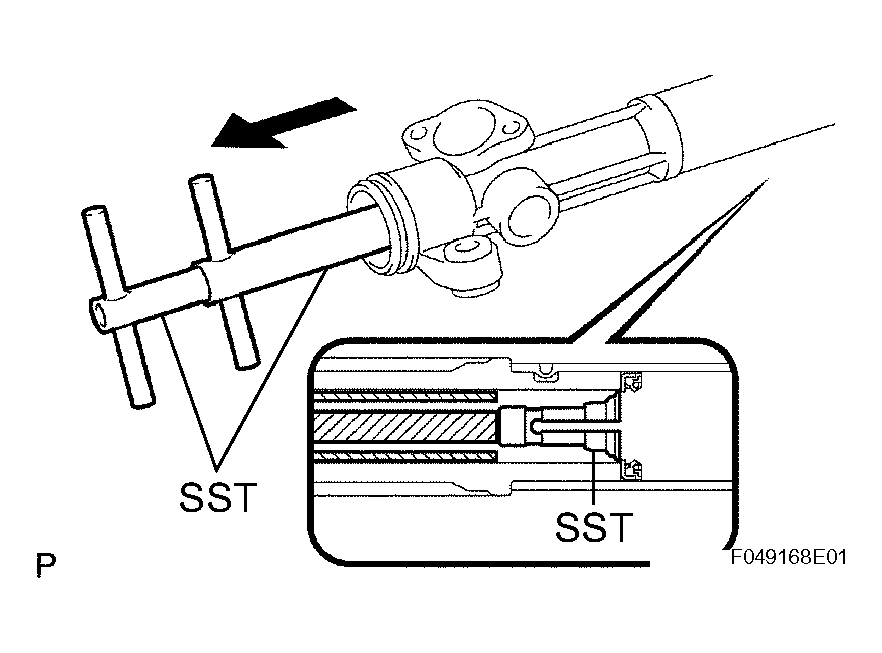

NOTE: Do not damage the inside of the power steering rack housing. - Hold SST (09612-07220) and pull SST (09612- 07210) to position SST (09612-07110) to the inside of the rack housing.
SST 09612-70100 (09612-07110, 09612-07210, 09612-07220)
HINT:
Ensure that SST (09612-07110) is positioned at the chamfered part between the power steering cylinder tube oil seal and the rack housing.
- Install SST (09612-07240) to SST (09612-07230). Insert the tip of SST (09612-07230) into the service hole of SST (09612-07110) in the rack housing.
SST 09612-70100 (09612-07110, 09612-07230, 09612-07240)
SST 09612-70100 (09612-07110, 09612-07230, 09612-07240)
NOTE:- Ensure the SST (09612-07240) is installed to prevent damage to SST (09612-07110).
- Do not damage the inside of the rack housing.
- Install SST (09951-07150) to SST (09612-07230). Using a press, remove the power steering cylinder tube oil seal.
SST 09612-70100 (09612-07110, 09612-07230,
09612-07240), 09950-70010 (09951-07150)
SST 09612-70100 (09612-07110, 09612-07230, 09612-07240), 09950-70010 (09951-07150)
NOTE: Do not damage the rack housing.HINT:
Change SST (09951-07150) for another, from the set, with different length as needed.
- Set the SST.
