Brake Pedal
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

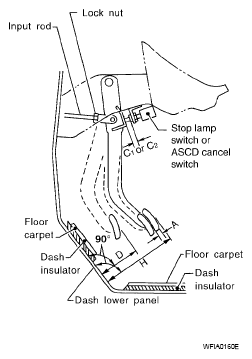

BRAKE PEDAL SPECIFICATION
| Unit: mm (in) | |
| Free height "H" | 182.1 - 192.1 (7.17 - 7.56) |
| Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb) with engine running] | 105 - 115 (4.13 - 4.53) |
| Clearance between pedal stopper and threaded end of stop lamp switch and ASCD switch "C1 " or "C2 " | 0.74 - 1.96 (0.029 - 0.077) |
| Pedal play "A" | 3 - 11 (0.12 - 0.43) |
