Wiring Diagram - COMBINATION SWITCH

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

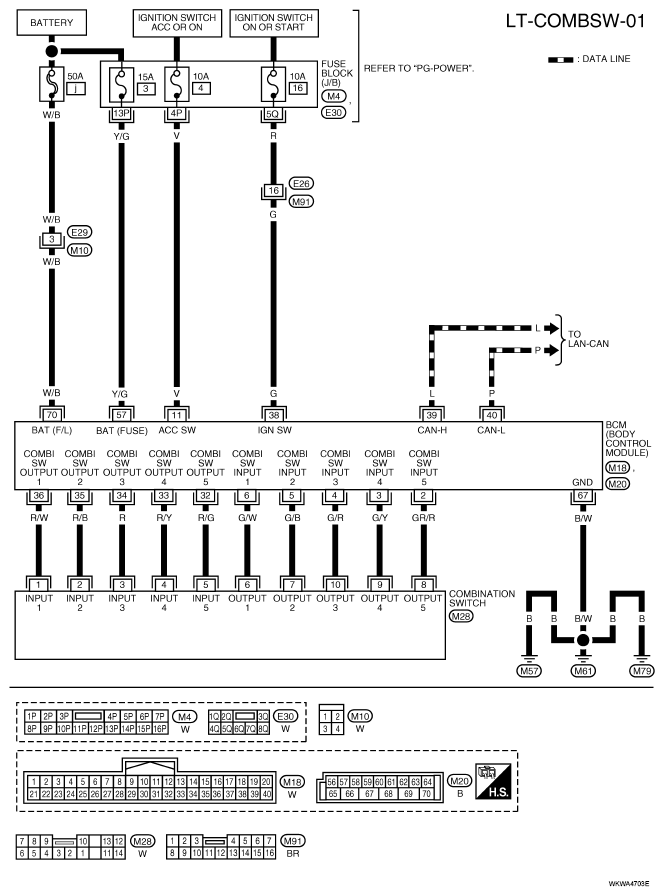

Fig 1: Combination Switch Wiring Diagram
G04908611Courtesy of NISSAN MOTOR CO., U.S.A.
